🔧 Rogue - Starter Motor Replacement

You’ll be removing the starter from the side of the engine where it bolts to the transmission, then installing a new one and reconnecting the wiring. This fixes slow cranking, clicking, or a no-crank condition when the battery and cables are good.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working on the starter to avoid electric shock or short circuits.
• ⚠️ The starter wiring is directly connected to the battery and can cause strong sparks if shorted.
• ⚠️ Safely support your Rogue with jack stands if you raise it; never rely on a jack alone.
• ⚠️ Let the engine and exhaust cool completely before working underneath to avoid burns.
• ⚠️ Wear safety glasses to protect your eyes from dirt, rust, and falling debris.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, set of 2)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive extension (6")
• 🛠️ 1/4" drive ratchet
• 🛠️ Phillips screwdriver #2
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Torque wrench 3/8" drive (5-75 ft-lbs range)
• 🛠️ Needle-nose pliers
• 🛠️ Trim clip removal tool (specialty)
• 🛠️ Work light or headlamp
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor (for Rogue 2.5L AWD) - Qty: 1
• 🔩 Starter mounting bolt set (optional, recommended) - Qty: 1
• 🔩 Battery terminal cleaning kit - Qty: 1
• 🔩 Dielectric grease - Qty: 1
• 🔩 Anti-seize compound - Qty: 1
• 🔩 Plastic push clips for engine under cover (optional) - Qty: 1 set

---

📋 Before You Begin

• Park your Rogue on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and remove any loose items from the engine bay.
• Make sure you have your radio and infotainment presets saved; battery will be disconnected.
• Disconnect the negative battery terminal with a 10mm socket and move the cable aside so it cannot touch the battery post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the front

• Use the floor jack at the front jacking point (center of front crossmember) to lift the front of your Rogue.
• Place jack stands under the factory pinch welds on both sides, then slowly lower the vehicle onto the stands.
• Give the vehicle a gentle push to confirm it is stable.
• Always keep at least two jack stands under the car.

Step 2: Remove front engine under cover

• Use the Phillips #2 screwdriver to remove any screws holding the plastic engine under cover.
• Use the trim clip removal tool or flathead screwdriver to pop out the plastic clips along the edges.
• Lower the under cover and set it aside.
• Keep screws and clips in a small container.

Step 3: Locate the starter

• From underneath, look at the area where the engine meets the transmission on the driver side of the engine bay.
• The starter is a small cylindrical motor bolted to the transmission bell housing with a thick cable attached to it.
• Use the work light to clearly see the starter and its wiring.

Step 4: Disconnect starter wiring

• Confirm the negative battery cable is still disconnected.
• On the starter solenoid (small cylinder on the starter), locate the small push-on connector (the control wire).
• Use needle-nose pliers or your fingers to carefully pull the small connector straight off; do not pull on the wire itself.
• Locate the larger cable attached with a nut (the main battery cable).
• Use a 12mm socket and 3/8" ratchet to remove the nut holding the main cable.
• Remove the cable from the stud and set it aside away from the starter.

Step 5: Remove starter mounting bolts

• Locate the two starter mounting bolts that go through the starter into the transmission housing.
• Use a 14mm socket, 3/8" ratchet, and extension to loosen and remove the lower bolt first.
• Support the starter body with one hand while loosening the upper bolt using the same 14mm socket and extension.
• Remove the upper bolt while holding the starter so it does not fall.
• Carefully lower and remove the starter from the vehicle.

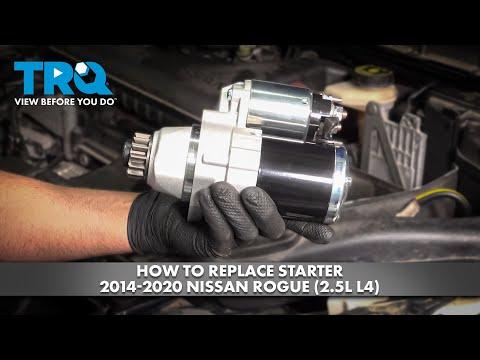

Step 6: Prepare the new starter

• Compare the new starter to the old one: check overall shape, mounting holes, and electrical connections to make sure they match.
• Lightly coat the new starter’s mounting surface and bolt threads with a tiny amount of anti-seize compound if desired.
• Do not get anti-seize on electrical contacts.

Step 7: Install the new starter

• Position the new starter into place, aligning the gear end with the opening in the transmission housing.
• Hand-thread the upper mounting bolt through the starter and into the transmission using your fingers; do not use tools yet.
• Hand-thread the lower mounting bolt.
• Use the 14mm socket, extension, and 3/8" ratchet to snug both bolts evenly.
• Use the torque wrench with the 14mm socket to tighten both starter mounting bolts to 59 Nm (43 ft-lbs).

Step 8: Reconnect starter wiring

• Place the large battery cable eyelet onto the starter’s main stud.
• Thread the nut by hand to avoid cross-threading.
• Use a 12mm socket and 3/8" ratchet to snug the nut.
• Use the torque wrench with the 12mm socket to tighten the nut to 12 Nm (106 in-lbs).
• Apply a small dab of dielectric grease on the small control terminal, then push the small connector back onto the terminal until it clicks or feels fully seated.

Step 9: Reinstall the engine under cover

• Lift the plastic under cover back into place under the engine.
• Install the screws using the Phillips #2 screwdriver.
• Reinstall the plastic clips using your fingers or the trim clip removal tool to press them back in.

Step 10: Lower the vehicle and reconnect the battery

• Use the floor jack to raise the front of your Rogue slightly and remove the jack stands.
• Lower the vehicle to the ground.
• At the battery, place the negative cable back onto the negative terminal.
• Use a 10mm socket and 1/4" ratchet to tighten the negative terminal clamp to 7.8 Nm (69 in-lbs)—snug but not crushing.

---

✅ After Repair

• Turn the ignition key or push the start button to start the engine. Listen for smooth, strong cranking with no grinding or clicking.
• If the engine does not crank, recheck the battery connections and the small starter control connector.
• Check under the vehicle for any tools or loose parts you may have left behind.
• Re-enter your radio presets and clock settings if they were lost.
• If any warning lights stay on, have codes scanned.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$700 (parts + labor)

DIY Cost: $150-$280 (parts only)

You Save: $300-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
