🔧 Focus - Starter Motor Replacement

The starter motor is what spins your engine fast enough for it to start. When it fails, you may get a single click, slow cranking, or no crank at all. Replacing it on your Focus is mostly about safe access and careful wiring reconnection.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery before touching starter wiring (prevents short circuits).
• 🧯 The starter power cable is always “hot” if the battery is connected—avoid tool contact to metal.
• 🧰 Support the car with jack stands on solid ground; never rely on a floor jack alone.
• 🧤 Let the engine/exhaust cool before working underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench
• 3/8" drive extension set
• 3/8" drive wobble extension
• Flathead screwdriver
• Trim clip removal tool
• Pick tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Battery terminal anti-corrosion pads or spray - Qty: 1
• Dielectric grease - Qty: 1
• Replacement splash shield clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift into 1st gear, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and make sure you have your radio/security codes if needed (rare on this model).
• Plan to disconnect the battery: negative cable first, then positive if needed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 1/4" drive ratchet to loosen the negative (–) battery terminal and remove it from the battery post.
• Tuck the cable aside so it can’t spring back.
• When reinstalling later: Torque to 6 Nm (53 in-lbs).

Step 2: Raise the front of the car safely

• Use a floor jack to lift the front of the car at the proper front jacking point.
• Set the car down onto jack stands and confirm it’s stable before going underneath.

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool to pop out plastic retainers.
• Use an 8mm socket and 1/4" drive ratchet to remove any small bolts/screws.
• Set clips/bolts aside so you don’t lose them.

Step 4: Remove the air intake ducting for access

• From the top side, use an 8mm socket and 1/4" drive ratchet (or a flathead screwdriver) to loosen hose clamps.
• Unclip and remove the intake snorkel/duct pieces as needed to open up the area near the transmission side of the engine.
• If a connector is stubborn, use a pick tool gently to lift the locking tab. (A pick tool is a small hooked tool used to release clips without breaking them.)

Step 5: Locate the starter motor and disconnect the wiring

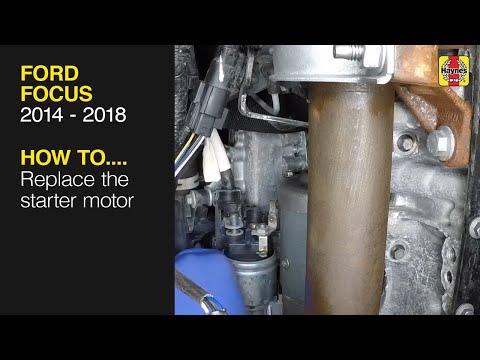

• Use a flashlight to find the starter at the engine-to-transmission joint (bellhousing area).
• Disconnect the small starter trigger connector by hand; if tight, help it with a pick tool carefully.
• Remove the main power cable nut using a 13mm socket and 3/8" drive ratchet, then remove the cable.
• When reinstalling later: Torque to 10 Nm (89 in-lbs) and apply a light coat of dielectric grease to the connector seal (not on the nut/threads).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand while you break bolts loose.
• Use a 13mm socket, 3/8" drive ratchet, and a 3/8" drive extension set (add a wobble extension if needed) to remove the starter mounting bolts.
• Remove the starter from the bellhousing area and guide it out carefully.

Step 7: Install the new starter

• Compare the new starter to the old one (mounting holes, connector positions) before installing.
• Position the starter and start the mounting bolts by hand to avoid cross-threading.
• Tighten the starter mounting bolts with a 13mm socket and 3/8" drive ratchet.
• Final tighten with a 3/8" drive torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 8: Reconnect starter wiring

• Install the main power cable onto the stud and tighten using a 13mm socket and 3/8" drive torque wrench: Torque to 10 Nm (89 in-lbs).
• Plug in the small trigger connector until it clicks.
• Make sure wires don’t rub the axle or exhaust.

Step 9: Reinstall the intake ducting and splash shield

• Reinstall intake ducting and tighten clamps using an 8mm socket and 1/4" drive ratchet (or flathead screwdriver).
• Reinstall the splash shield using the trim clip removal tool and 8mm socket as needed.

Step 10: Reconnect the battery and lower the car

• Reconnect the negative battery terminal using a 10mm socket and 1/4" drive torque wrench (or careful snug with ratchet): Torque to 6 Nm (53 in-lbs).
• Apply battery terminal anti-corrosion protection.
• Remove jack stands and lower the car with the floor jack.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or grinding.
• With the engine running, check that the battery light on the dash is off.
• Recheck the starter area for loose wiring and make sure nothing is near moving parts.
• If you hear a whine after starting, shut off and recheck starter seating/bolts.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $330-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
