🔧 CX-5 - Starter Motor Replacement

The starter motor spins your engine fast enough to begin combustion. If it’s weak (slow crank), clicks but won’t crank, or intermittently won’t start, replacing the starter is a common fix on your CX-5.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short.
• ⚠️ Keep metal tools away from the positive battery terminal.
• ⚠️ Let the engine cool; you’ll work near hot components.
• ⚠️ Support the vehicle with jack stands if you go underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Ratchet (3/8")
• Ratchet (1/2")
• Socket set (8mm, 10mm, 12mm, 14mm)
• Deep socket (12mm)
• Wrench set (10mm, 12mm, 14mm)
• Extension set (3", 6", 12")
• Universal joint adapter (3/8")
• Flat trim clip tool
• Torque wrench (10–100 Nm range)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Intake duct clamp(s) - Qty: 1-2
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park your CX-5 on level ground and set the parking brake.
• Open the hood and keep the key fob at least 10 feet away.
• If you’ll jack it up, place wheel chocks behind the rear wheels.
• Know your tools: a torque wrench tightens bolts to an exact tightness setting so you don’t strip or crack parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative (–) battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.
• Negative off first, on last.

Step 2: Remove the air intake duct (for access)

• Use an 8mm socket or flat trim clip tool (depending on clamp style) to loosen the intake duct clamps.
• Unclip any attached hose(s) carefully by hand, then lift the duct out.
• Set hardware aside in a small container.

Step 3: Raise the front (recommended for easier access)

• Place wheel chocks behind the rear wheels.
• Use a floor jack (rated 2-ton minimum) to lift the front jacking point.
• Set the vehicle down onto jack stands (rated 2-ton minimum).

Step 4: Remove the front under cover (splash shield), if equipped

• Use a flat trim clip tool to pop out plastic clips.
• Use a 10mm socket to remove any bolts holding the cover.
• Lower the cover and slide it out.

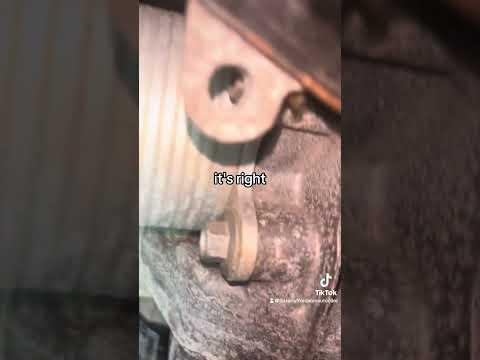

Step 5: Locate the starter on the transmission bellhousing

• Use a flashlight to find the starter where the engine meets the transmission (it has a large power cable and a smaller control wire).
• If access is tight, use a 3/8" extension set and universal joint adapter (3/8") to line up on the bolts.

Step 6: Disconnect the starter wiring

• Remove the starter terminal protective cap by hand.
• Use a 12mm deep socket to remove the nut on the large battery cable (B+ terminal), then move the cable aside.
• Disconnect the small starter solenoid connector by pressing the tab and pulling it straight off.
• When reinstalling the B+ nut, Torque to 9–12 Nm (80–105 in-lbs).

Step 7: Remove the starter mounting bolts

• Use a 14mm socket, ratchet (1/2"), and a 6"–12" extension to remove the starter mounting bolts.
• Support the starter with one hand as the last bolt comes out (it’s heavier than it looks).
• Pull the starter straight out of the bellhousing.

Step 8: Install the new starter

• Compare the new starter to the old one (same mounting ears, same electrical studs).
• Slide the starter into place and hand-thread the mounting bolts to avoid cross-threading.
• Use a 14mm socket and torque wrench (10–100 Nm range) to tighten the mounting bolts: Torque to 40–50 Nm (30–37 ft-lbs).
• Start bolts by hand every time.

Step 9: Reconnect wiring and reassemble

• Reconnect the small solenoid connector by pushing until it clicks.
• Install the large battery cable and nut using a 12mm deep socket: Torque to 9–12 Nm (80–105 in-lbs).
• Reinstall the terminal cap.
• Reinstall the under cover using a 10mm socket and flat trim clip tool.
• Reinstall the intake duct using an 8mm socket and tighten clamps snugly.

Step 10: Reconnect battery and test

• Reinstall the negative battery terminal using a 10mm wrench.
• Use a torque wrench (10–100 Nm range): Torque to 5–7 Nm (44–62 in-lbs).
• Start the engine and confirm it cranks strongly with no clicking.

---

✅ After Repair

• ✅ Verify there are no warning lights and the engine starts consistently.
• ✅ Recheck that the large starter cable nut is tight and the cap is installed.
• ✅ If you removed the under cover, confirm all clips/bolts are installed and nothing is hanging down.
• ✅ If the battery was disconnected, reset the clock and radio presets if needed.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000–₹35,000 (parts + labor)

DIY Cost: ₹8,000–₹22,000 (parts only)

You Save: ₹10,000–₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000–₹2,500/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
