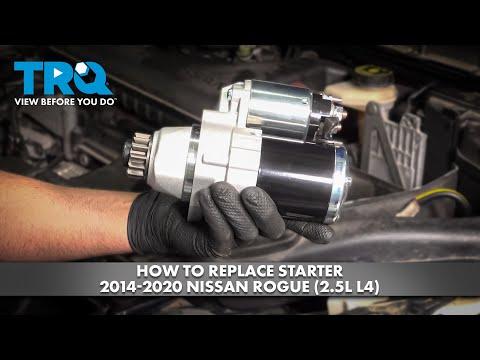

🔧 Rogue - Starter Motor Replacement

The starter motor spins your engine so it can start. On your Rogue, the starter is mounted to the transmission/bellhousing area and is accessed from the engine bay and/or underneath.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

Assumption: Stock 2.5L layout with OE-style starter.

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable first to prevent a short.
• 🛑 Support the Rogue with jack stands if you go underneath; never rely on a jack.
• 🛑 Let the engine cool; the exhaust area can burn you.
• 🛑 Keep tools off the positive terminal/cable; it’s always “hot” if connected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 6" extension (3/8")
• 12" extension (3/8")
• Torque wrench (3/8" drive)
• Flat trim tool
• Flathead screwdriver
• Needle-nose pliers
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if supplied/needed) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Use wheel chocks on the rear wheels.
• Open the hood and keep the key fob away from the vehicle.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access to the starter

• From the top, remove the engine cover (if equipped) by pulling upward firmly with your hands.
• Remove the intake duct/air inlet tube if it blocks access: loosen clamps with a flathead screwdriver and remove any clips with a flat trim tool.
• If you need more room, remove the upper air box section using a 10mm socket or 12mm socket (varies by clamp/fastener style).
• Tip: Take a quick photo before removing hoses.

Step 2: Raise and secure the Rogue (if needed)

• Place the floor jack (rated 3-ton minimum) under the front center jack point and lift.
• Set the Rogue on jack stands (rated 3-ton minimum) at the proper support points.
• Give the vehicle a firm shake to confirm it’s stable before you crawl under.

Step 3: Locate the starter and identify the wires

• Use a flashlight to find the starter on the transmission/bellhousing area.
• You’ll typically see:
• One thick battery cable on a stud (main power).
• One smaller plug/wire (starter solenoid signal).
• Mark cable orientation with a paint marker so it goes back the same way.

Step 4: Remove the starter electrical connections

• Pull off the rubber boot covering the large terminal (if present).
• Remove the nut from the large terminal using a 10mm socket, then lift the cable off the stud.
• Disconnect the small solenoid connector by pressing the tab (use needle-nose pliers gently if needed) and pulling straight off.
• Tip: Don’t yank wires—pull on the connector body.

Step 5: Unbolt and remove the starter motor

• Support the starter with one hand.
• Remove the starter mounting bolts using a 14mm socket, 3/8" ratchet, and a 6" extension (3/8") or 12" extension (3/8") as needed.
• Once bolts are out, wiggle the starter free and remove it from the vehicle.
• Tip: Keep bolts with the starter so none get lost.

Step 6: Install the new starter

• Compare the old and new starter (mounting ears and electrical studs should match).
• Position the new starter and start the mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a 14mm socket and torque wrench (3/8" drive): Torque to 44 Nm (33 ft-lbs).

Step 7: Reconnect starter wiring

• Reconnect the small solenoid connector until it clicks.
• Install the main battery cable onto the stud and tighten the nut using a 10mm socket: Torque to 9 Nm (80 in-lbs).
• Apply a thin film of dielectric grease (a non-conductive moisture protectant) around the connector seal/boot area, then reinstall the rubber boot.

Step 8: Reassemble intake/air box parts

• Reinstall the intake duct/air box components removed earlier.
• Tighten clamps with a flathead screwdriver and fasteners with a 10mm socket or 12mm socket as equipped.
• Make sure any vacuum/PCV hoses and clips are fully seated.

Step 9: Reconnect the battery and lower the vehicle

• If the Rogue is on stands, raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the vehicle.
• Reconnect the negative battery terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding/whine; if heard, shut off and recheck starter seating and bolt tightness.
• Check that the intake duct is sealed and the engine idle is normal (no hissing/air leak).
• If any warning lights appear, recheck electrical connectors and battery terminal tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
