🔧 QX60 - Starter Motor Replacement

The starter motor spins your engine fast enough to start. When it fails, you may get a single click, slow cranking, or no crank at all. On your QX60, the starter mounts to the transmission bellhousing and is typically accessed from underneath.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching the starter wiring.
• ⚠️ Support the vehicle with jack stands; never work under a car held only by a jack.
• ⚠️ Let the exhaust/catalytic converter cool fully; it can burn you.
• ⚠️ Keep tools away from the battery positive post to prevent short circuits.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Work light
• Trim clip remover tool
• Ratchet (3/8" drive)
• Socket set: 10mm, 12mm, 14mm
• Wrench: 10mm, 12mm, 14mm
• Extension set (3", 6", 12")
• Wobble extension (3/8" drive)
• Torque wrench (3/8" drive, 10-80 Nm range)
• Flathead screwdriver
• Needle-nose pliers
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter electrical terminal nut (if not included) - Qty: 1
• Undercover/clip assortment (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and disconnect the battery: use a 10mm wrench to remove the negative (-) terminal first, then isolate it so it can’t spring back.
• Tip: Take a quick photo of wiring before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the vehicle

• Use a floor jack (rated 3-ton minimum) on the front center jacking point to lift the front.
• Set the vehicle securely on jack stands (rated 3-ton minimum) at the proper support points.
• Give the vehicle a firm shake to confirm it’s stable before going underneath.

Step 2: Remove the lower engine undercover (splash shield)

• Use a trim clip remover tool and flathead screwdriver to remove plastic clips.
• Use a 10mm socket with a ratchet (3/8" drive) to remove any bolts.
• Lower the undercover and set it aside.

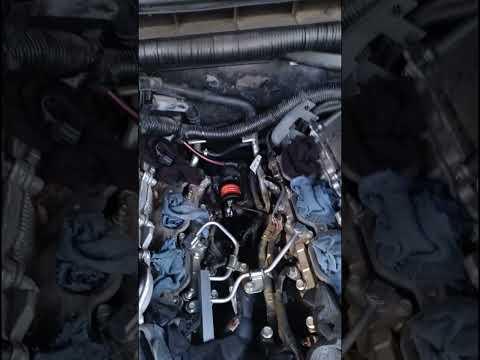

Step 3: Locate the starter

• Use a work light to find the starter where the engine meets the transmission (bellhousing area).
• You’ll see a small cylinder-shaped motor with a thick battery cable attached to a stud and a small electrical connector.

Step 4: Disconnect the starter electrical connections

• Unplug the small starter signal connector by pressing the lock tab (use needle-nose pliers only if needed—don’t crush it).
• Remove the rubber boot covering the battery cable stud.
• Use a 12mm socket (or 12mm wrench) to remove the nut on the starter main terminal, then remove the cable.
• Tip: Keep the nut with the cable so it won’t get lost.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a ratchet (3/8" drive) and extension set (3", 6", 12") to remove the starter mounting bolts (typically 2 bolts).
• If access is tight, use a wobble extension (3/8" drive) (a slightly flexible extension that helps reach angled bolts).

Step 6: Remove the starter from the bellhousing

• Wiggle and pull the starter straight out of the bellhousing.
• Lower it carefully—don’t let it hang by wiring.

Step 7: Install the new starter

• Compare the old and new starter (mounting holes and electrical studs should match).
• Position the new starter into the bellhousing opening.
• Hand-thread the mounting bolts first to avoid cross-threading.
• Tighten the mounting bolts with a 14mm socket, then Torque to 44 Nm (33 ft-lbs) using a torque wrench (3/8" drive, 10-80 Nm range).

Step 8: Reconnect the starter wiring

• Install the main battery cable onto the starter terminal stud.
• Thread the terminal nut by hand, then tighten with a 12mm socket.
• Torque to 9 Nm (80 in-lbs) (snug, not super tight).
• Reinstall the rubber boot over the terminal.
• Plug the small signal connector back in until it clicks.

Step 9: Reinstall the undercover and lower the vehicle

• Reinstall the lower undercover using the 10mm socket and trim clip remover tool as needed.
• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower the vehicle.

Step 10: Reconnect the battery and clean terminals

• Use a battery terminal brush to clean the battery posts and terminal clamps if they look dirty.
• Reconnect the battery negative (-) terminal with a 10mm wrench.

---

✅ After Repair

• Start the engine and listen: it should crank strong and start quickly.
• Check that no warning lights appear related to low voltage (some lights may clear after a short drive).
• Recheck under the hood and under the vehicle for any loose tools, clips, or wiring.
• Tip: If it still clicks, recheck battery and cable tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,050 (parts + labor)

DIY Cost: $160-$450 (parts only)

You Save: $440-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
