🔧 Rogue - Starter Motor Replacement

You’ll remove the old starter motor from the front of the engine where it meets the transmission, then install and tighten a new one. This restores reliable engine cranking when you turn the key or push the start button.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working on the starter to avoid electric shock or short circuits.
• ⚠️ The starter cable goes directly to the battery; touching it with tools while connected can cause strong sparks and burns.
• ⚠️ Raise the front of your Rogue securely with a floor jack and support it on jack stands; never rely on the jack alone.
• ⚠️ Let the engine and exhaust cool completely before working underneath the vehicle.
• ⚠️ Wear safety glasses and gloves to protect your eyes and hands from dirt, rust, and sharp edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 3/8" drive extension (6")
• 🛠️ 1/2" drive extension (6")
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 13mm socket
• 🛠️ 14mm socket
• 🛠️ 12mm combination wrench
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Torque wrench (3/8" drive, 5-80 Nm range)
• 🛠️ Torque wrench (1/2" drive, 20-150 Nm range)
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Creeper or mat
• 🛠️ Work light or flashlight
• 🛠️ Battery terminal brush
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor (QR25DE engine, AWD) - Qty: 1
• 🔩 Starter mounting bolts - Qty: 2 (recommended new)
• 🔩 Starter electrical terminal nut - Qty: 1 (if not included)
• 🔩 Dielectric grease - Qty: 1 small tube
• 🔩 Battery terminal protector spray - Qty: 1
• 🔩 Cable tie set - Qty: 1 pack

---

📋 Before You Begin

• Park your Rogue on level ground, shift to PARK, and set the parking brake firmly.
• Place wheel chocks behind the rear wheels to prevent rolling.
• Open the hood and make sure you have good lighting in the engine bay and under the vehicle.
• Note radio presets and any custom settings; disconnecting the battery may reset them.
• Disconnect the negative battery terminal with a 10mm socket and move the cable aside so it cannot spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Support the Front

• Position the floor jack (3-ton) under the front center jacking point (behind the front bumper on the subframe crossmember).
• Raise the front of your Rogue high enough to comfortably reach the underside.
• Place jack stands (3-ton) under the left and right front pinch welds or frame points and slowly lower the vehicle onto them.
• Gently rock the vehicle by hand to confirm it is stable before going underneath.

Step 2: Remove Lower Engine Splash Shield

• Use a 10mm socket to remove the bolts securing the plastic splash shield under the engine area.
• Use a flathead screwdriver or needle-nose pliers to carefully pop out any plastic push clips.
• Lower the splash shield and set it aside in order so reinstallation is easier later.

Step 3: Locate the Starter

• The starter is mounted at the front side of the transmission bellhousing, near where the engine and transmission meet, on the radiator side.
• From underneath, look up between the engine and radiator; you’ll see a cylindrical motor with a smaller cylinder (solenoid) attached and heavy cables bolted to it.
• Take a picture of the wiring before removal.

Step 4: Disconnect Starter Electrical Connectors

• Confirm the negative battery cable is still disconnected.
• On the starter solenoid, locate the small push-on connector (signal wire). Gently pull it off using your fingers or needle-nose pliers; do not yank on the wire.
• Locate the larger main battery cable attached with a nut.
• Use a 12mm socket or 12mm combination wrench to remove the nut from the main terminal.
• Pull the cable eyelet off the stud and gently move the cable aside so it cannot touch the starter or metal parts.

Step 5: Remove Starter Mounting Bolts

• There are usually two main mounting bolts holding the starter to the transmission housing.
• Use a 14mm socket with a 3/8" drive ratchet and 6" extension to loosen and remove the lower mounting bolt.
• Use the same 14mm socket and extension to reach and remove the upper mounting bolt from underneath (you may need to reach around hoses).
• Support the starter with one hand as you remove the last bolt so it does not fall.

Step 6: Remove the Old Starter

• With both bolts removed, carefully pull the starter straight away from the transmission.
• You may need to twist and wiggle it slightly to clear nearby wiring or brackets; be patient and avoid forcing it.

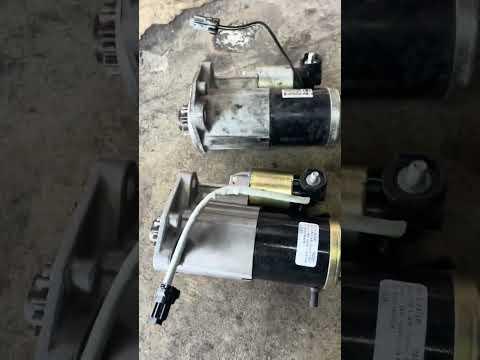

• Lower the starter out of the engine bay and compare it to the new starter to ensure mounting holes and electrical connections match.

Step 7: Prepare the New Starter

• Lightly clean the starter mounting surface on the transmission with a rag so it is free of dirt and corrosion.
• Apply a very thin smear of dielectric grease to the electrical terminal faces on the new starter to help prevent corrosion.
• Do not get grease on the starter gear.

Step 8: Install the New Starter

• Position the new starter in the same orientation as the old one and guide the nose of the starter into the opening on the transmission.
• Align the bolt holes in the starter flange with the holes in the transmission housing.
• Hand-thread the upper mounting bolt a few turns to hold the starter in place; use your fingers only at first.
• Hand-thread the lower mounting bolt a few turns.
• Use a 14mm socket and 3/8" drive ratchet to snug both bolts evenly.
• Then use a torque wrench (1/2" drive) with a 14mm socket to tighten both starter mounting bolts to 49 Nm (36 ft-lbs).

Step 9: Reconnect Starter Wiring

• Slide the main battery cable eyelet onto the large starter terminal stud.
• Install the new or original nut and tighten it with a 12mm socket or 12mm combination wrench to 9 Nm (80 in-lbs). Do not overtighten; it is a small stud.
• Push the small signal wire connector back onto its terminal until it clicks or feels fully seated.
• Check that neither wire is stretched or rubbing sharply on metal. Use cable ties to secure loose wiring if needed.

Step 10: Reinstall Splash Shield

• Lift the lower engine splash shield back into position under the front of your Rogue.
• Install the bolts with a 10mm socket, threading them in by hand first to avoid cross-threading.
• Reinstall any plastic push clips using your fingers or a flathead screwdriver to press centers flush.
• Snug the 10mm bolts with the 3/8" drive ratchet; do not overtighten, as the shield is plastic.

Step 11: Lower the Vehicle

• Position the floor jack under the front center jacking point again and raise the vehicle slightly to lift it off the jack stands.
• Remove the jack stands from both sides.
• Slowly lower the front of the vehicle back to the ground.
• Remove the wheel chocks from the rear wheels.

Step 12: Reconnect the Battery

• At the battery, slide the negative cable back onto the negative terminal.
• Use a 10mm socket to tighten the clamp bolt until snug; the terminal should not rotate by hand. Torque to about 5 Nm (44 in-lbs).
• Use a battery terminal brush if needed to clean corrosion before tightening.
• Spray a light coat of battery terminal protector on both terminals.

---

✅ After Repair

• Turn the ignition to ON without starting and check the dash lights; listen for any unusual buzzing or clicking near the starter.
• Start the engine; it should crank strongly and start quickly without grinding noises.
• With the engine running, look underneath (without going fully under) to confirm there are no loose wires or parts hanging down.
• Re-enter your radio presets and clock settings if they were reset.
• If you hear grinding, repeated rapid clicks, or no crank at all, turn the key off immediately and recheck starter wiring and battery connections.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$750 (parts + labor)

DIY Cost: $180-$280 (parts only)

You Save: $270-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
