🔧 Corolla - Starter Motor Replacement

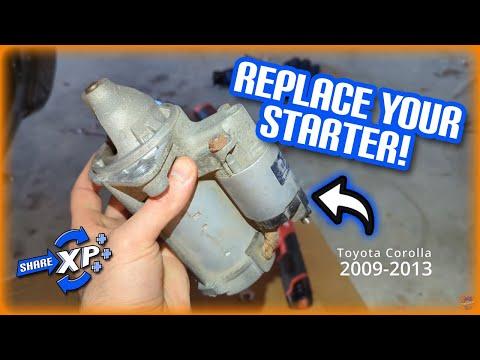

Your Corolla’s starter motor spins the engine so it can start. When it fails, you may get a single click, slow cranking, or no crank at all. This job is mostly about safe access, disconnecting the wiring correctly, and swapping the starter on the transmission bellhousing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative cable first; the starter cable is always “hot” otherwise.
• 🧯 Let the engine cool; you’ll work near hot exhaust/engine parts.
• 🧱 Support the car with jack stands; never work under a car held only by a jack.
• ⚡ Avoid touching the starter main terminal to metal; it can short and spark.
• 🧤 Wear gloves and safety glasses; you’ll be under the car.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 ft-lbs range)
• 3/8" extension set (3", 6", 12")
• 3/8" universal joint swivel
• Flat-blade screwdriver
• Trim clip remover
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut cap (if damaged/missing) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and keep your 10mm socket ready for the battery terminal.
• Take a quick photo of the wiring layout.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen and remove the negative battery cable (black) and tuck it aside so it can’t spring back.
• This prevents accidental short circuits while you’re on the starter main cable.

Step 2: Raise and support the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front at the correct front jacking point.
• Set the car down onto jack stands (rated 3-ton minimum) and gently shake-test for stability.

Step 3: Remove the lower engine splash shield (under cover)

• Use a trim clip remover for plastic clips and a 10mm socket for any bolts holding the splash shield.
• Lower it and set it aside so you can access the starter area.

Step 4: Locate the starter and unplug the small control connector

• Find the starter mounted to the transmission bellhousing (it has a small plug and a thick battery cable).
• Use needle-nose pliers only if needed to release the locking tab, then pull the small connector straight off.
• Don’t yank the wires—pull on the connector body.

Step 5: Remove the starter main power cable

• Use a flat-blade screwdriver to pop off the rubber protective cap on the large starter terminal (if equipped).
• Use a 12mm socket to remove the nut holding the thick battery cable to the starter terminal.
• Move the cable away so it can’t touch metal.
• If the cable end is dirty, wipe it clean.

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 3/8" ratchet, plus a 3/8" extension set and 3/8" universal joint swivel as needed, to remove the starter mounting bolts.
• Slide the starter out of the bellhousing and down carefully.

Step 7: Install the new starter

• Position the new starter into place and hand-thread the mounting bolts to avoid cross-threading.
• Use a 14mm socket and 3/8" ratchet to snug them evenly.
• Use a 3/8" torque wrench to finish tightening: Torque to 37 N·m (27 ft-lbs).

Step 8: Reconnect the starter wiring

• Install the thick battery cable on the main terminal and thread the nut by hand.
• Use a 12mm socket to tighten the nut: Torque to 9 N·m (80 in-lbs).
• Apply a small amount of dielectric grease to the connector seal (not the metal contact) if desired.
• Reconnect the small control connector until it clicks.
• Reinstall the rubber terminal cap (if equipped).

Step 9: Reinstall the splash shield and lower the car

• Reinstall the under cover using the 10mm socket and trim clip remover.
• Raise slightly with the floor jack, remove jack stands, and lower the car to the ground.

Step 10: Reconnect the battery and test

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and listen for a strong, smooth crank.

---

✅ After Repair

• Start the engine 3–4 times to confirm consistent cranking.
• Check that no warning lights appear and there’s no burning smell near the starter wiring.
• Re-check the area for any loose wiring or missing clips on the splash shield.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $330-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
