🔧 1500 - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. If it’s failing, you may hear a single click, slow cranking, or no crank at all. On your 1500, the starter is mounted low on the passenger side of the transmission bellhousing.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• 🧤 Disconnect the negative battery cable before touching the starter wiring (prevents shorts and burns).
• 🧯 Keep tools away from the starter’s main power stud; it is direct battery power.
• 🛞 Support the truck with jack stands on the frame; never rely on a jack.
• 🔥 Let the exhaust cool first; the starter sits near hot components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet (3/8")
• Ratchet (1/2")
• Socket set metric 8mm-18mm
• 15mm socket
• 13mm socket
• 10mm socket
• 6" extension (3/8")
• 12" extension (3/8")
• Torque wrench 10-100 ft-lbs
• Flat trim tool
• Battery terminal brush
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Dielectric grease - Qty: 1
• Battery terminal anti-corrosion protectant - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels with wheel chocks.
• 🔋 Open the hood and disconnect the battery negative cable using a 10mm socket.
• ⬆️ Lift the front with a floor jack and support with jack stands under the frame rails.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access under the truck

• Use a flashlight to locate the starter on the passenger side where the engine meets the transmission.
• If your 1500 has a splash shield/skid plate blocking access, remove its fasteners using your socket set metric 8mm-18mm and a ratchet (3/8"), then set it aside.
• Keep bolts grouped by location.

Step 2: Disconnect the starter wiring

• On the starter, locate the large battery cable on the main power stud (B+).
• Remove the nut using a 13mm socket and ratchet (3/8"), then pull the cable off and position it safely away from metal.
• Disconnect the small solenoid trigger wire (push-on connector or small nut depending on build) using a 10mm socket if it has a nut, or gently pull it straight off by hand if it’s a push-on.
• Pull on the connector, not the wire.

Step 3: Remove the starter mounting bolts

• Support the starter with one hand.
• Remove the two starter mounting bolts using a 15mm socket, ratchet (1/2"), and a 6" extension (3/8") or 12" extension (3/8") as needed for reach.
• Lower the starter out carefully.

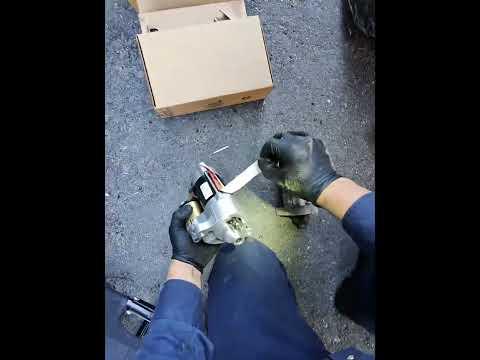

Step 4: Compare the old and new starter

• Place both starters side-by-side.
• Confirm the mounting ears match and the electrical terminals are in the same positions.
• If the new starter has protective terminal caps, leave them on until the wiring goes back on.

Step 5: Install the new starter

• Lift the new starter into position by hand.
• Start both mounting bolts by hand (this prevents cross-threading).
• Tighten the bolts using a 15mm socket and ratchet (1/2").
• Final tighten with a torque wrench 10-100 ft-lbs: Torque to 54 Nm (40 ft-lbs).

Step 6: Reconnect the starter wiring

• Reconnect the small solenoid trigger wire first (push-on until it clicks, or tighten the nut).
• If it uses a nut, tighten with a 10mm socket and ratchet (3/8"): Torque to 6 Nm (53 in-lbs).
• Reconnect the large battery cable to the main power stud.
• Tighten the nut with a 13mm socket and ratchet (3/8"): Torque to 13 Nm (115 in-lbs).
• Apply a thin film of dielectric grease to the outside of the connectors to help resist corrosion.

Step 7: Reinstall shields and lower the truck

• Reinstall any splash shield/skid plate you removed using the same socket set metric 8mm-18mm and ratchet (3/8").
• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower fully.

Step 8: Reconnect the battery

• Clean the battery terminal if needed using a battery terminal brush.
• Reconnect the negative battery cable using a 10mm socket.
• Apply battery terminal anti-corrosion protectant after tightening.

---

✅ After Repair

• 🔑 Start the engine and confirm it cranks strongly with no grinding noises.
• 🔍 With the engine running, look underneath for any loose wiring near the exhaust or moving parts.
• 🛠️ If you hear a sharp grind on startup, shut it off and re-check starter seating and bolt tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 (parts + labor)

DIY Cost: $150-$350 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
