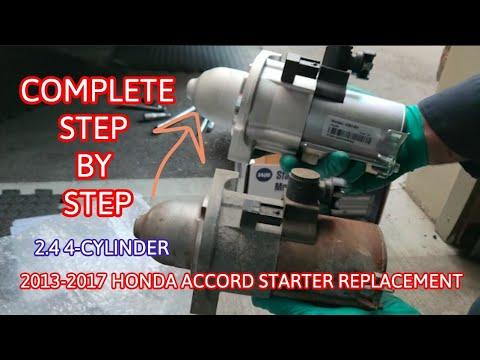

🔧 Accord - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. If it’s failing, you may hear a single click, slow cranking, or no crank at all. Replacing it on your Accord is very doable with basic hand tools and careful battery safety.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🔺 Disconnect the battery before touching the starter wiring (prevents sparks/shorts).
• 🔺 Let the engine cool fully; the exhaust and engine parts can burn you.
• 🔺 Support the car with jack stands if you go underneath; never rely on a floor jack alone.
• 🔺 Keep the key out of the ignition while working (prevents accidental cranking).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 Nm range)
• 3" extension (3/8" drive)
• 6" extension (3/8" drive)
• Universal joint adapter (3/8" drive)
• Trim clip removal tool
• Flat-blade screwdriver
• Pliers
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter mounting bolt set - Qty: 1 (optional but recommended)
• Battery terminal anti-corrosion spray - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and install a fender cover to protect paint.
• Plan for radio presets to reset after battery disconnect.
• A torque wrench tightens bolts to a safe exact force.
• A universal joint helps reach bolts at an angle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (–) battery terminal and remove it from the battery post.
• Move the cable aside so it cannot spring back onto the post.

Step 2: Remove the air intake duct (for access)

• Use a flat-blade screwdriver to loosen the hose clamps on the intake duct.
• Use pliers to release any small hose clamps, then pull the hoses off gently.
• Lift the intake duct out of the way.

Step 3: Raise the front safely (recommended)

• Use a floor jack (rated 2-ton minimum) to lift the front of the car at the proper front jacking point.
• Place jack stands (rated 2-ton minimum) under the front support points and lower the car onto them.

Step 4: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool and 10mm socket to remove the clips/bolts holding the lower cover.
• Set the hardware aside in a small tray.

Step 5: Locate the starter

• From above and/or below, find the starter mounted where the engine meets the transmission bell housing.
• You’ll see a thick battery cable going to it and a smaller trigger wire.

Step 6: Disconnect the starter electrical connections

• Use a 10mm socket to remove the nut/bolt holding the small trigger wire, then pull the connector off.
• Use a 12mm socket to remove the nut holding the main battery cable to the starter terminal.
• Move the cables aside so they can’t snag during removal.
• Torque to 9.8 Nm (7 ft-lbs) for the main cable nut during reassembly.

Step 7: Remove the starter mounting bolts

• Use a 14mm socket, 3/8" ratchet, and a 6" extension (3/8" drive) to remove the starter mounting bolts.
• If access is tight, add the universal joint adapter (3/8" drive).
• Support the starter with your free hand as the last bolt comes out.
• Torque to 44 Nm (33 ft-lbs) for the starter mounting bolts during reassembly.

Step 8: Remove the starter

• Work the starter out carefully, rotating it as needed to clear nearby hoses and wiring.
• Don’t pull on wiring harnesses.

Step 9: Install the new starter

• Position the new starter into place by hand.
• Start both mounting bolts by hand first (prevents cross-threading).
• Use a 14mm socket, 3/8" ratchet, and torque wrench to tighten the bolts: Torque to 44 Nm (33 ft-lbs).

Step 10: Reconnect the starter wiring

• Install the main battery cable on the starter terminal and tighten with a 12mm socket: Torque to 9.8 Nm (7 ft-lbs).
• Reconnect the small trigger wire and tighten with a 10mm socket: Torque to 9.8 Nm (7 ft-lbs).
• Make sure the rubber terminal cover (if equipped) is back in place.

Step 11: Reinstall splash shield and lower the car

• Reinstall the lower cover using a 10mm socket and trim clip removal tool.
• Use the floor jack to raise the car slightly, remove the jack stands, then lower the car safely.

Step 12: Reinstall the air intake duct

• Reinstall the intake duct and hoses.
• Tighten clamps using a flat-blade screwdriver.

Step 13: Reconnect the battery

• Reconnect the negative (–) terminal and tighten with a 10mm socket.
• If using protectant, apply battery terminal anti-corrosion spray.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts immediately.
• Listen for any grinding/whining from the starter area; shut off and recheck mounting if heard.
• Check that no warning lights appear and that the intake duct is sealed (no hissing or rough idle).
• Recheck the battery terminal is tight and not rotating by hand.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000–₹25,000 (parts + labor)

DIY Cost: ₹6,000–₹16,000 (parts only)

You Save: ₹6,000–₹9,000 by doing it yourself!

Shop labor rates vary but typically run ₹800–₹2,000/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
