🔧 RDX - Starter Motor Replacement

The starter motor spins the engine so it can start. On your RDX, the starter sits under the intake manifold (in the “valley” of the V6), so you’ll remove the intake manifold to access it.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Torque specs listed are common Acura/Honda J35 values—verify with a factory manual if possible.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short-circuits.
• ⚠️ Let the engine cool fully; you’ll work near hot coolant passages and the rear exhaust area.
• ⚠️ Keep tools away from the battery positive terminal and starter power cable.
• ⚠️ Cover the intake ports immediately once the manifold is off so nothing falls into the engine.
• ⚠️ If you remove any coolant hoses at the throttle body, catch coolant and clean spills.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fender cover
• 10mm socket
• 12mm socket
• 14mm socket
• 8mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 Nm range)
• 6" socket extension
• 12" socket extension
• Universal swivel joint
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Hose clamp pliers
• Pick tool
• Magnetic pickup tool
• Shop rags
• Masking tape
• Marker pen
• Drain pan
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Coolant (Honda/Acura Type 2 compatible) - Qty: 1-2 quarts
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Use masking tape and a marker to label hoses and connectors as you unplug them.
• A torque wrench is a tool that tightens bolts to an exact force so parts seal correctly and don’t crack.
• If you plan to disconnect throttle-body coolant hoses, place a drain pan under the front of the engine.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it.
• Wrap the terminal with a shop rag so it cannot spring back onto the post.

Step 2: Remove the engine cover and intake duct

• Lift off the engine cover (it pulls upward on most RDX covers); use a trim clip removal tool if clips resist.
• Use an 8mm socket or flathead screwdriver to loosen the air intake tube clamps.
• Unplug the intake tube sensor connector(s) using your hands (press the tab), then remove the tube.

Step 3: Remove the throttle body (move it aside)

• Unplug the throttle body electrical connector by hand (press the tab).
• If equipped with coolant hoses at the throttle body: use hose clamp pliers to slide the clamps back, then twist hoses off gently; catch coolant in a drain pan.
• Use a 10mm socket with a 6" extension to remove the throttle body bolts.
• Remove the throttle body and the old gasket. Do not scrape aluminum aggressively.
• Torque to 22 Nm (16 ft-lbs) when reinstalling.

Step 4: Disconnect intake manifold hoses and connectors

• Label each hose with masking tape and a marker.
• Disconnect vacuum/PCV/EVAP hoses using needle-nose pliers for spring clamps (if present).
• Unplug any sensors on/near the manifold by hand (press the locking tab).
• Move harnesses aside carefully; do not pull on wires.

Step 5: Remove the intake manifold

• Use a 12mm socket with a 12" extension and universal swivel joint to remove the intake manifold nuts/bolts.
• Lift the manifold straight up and out. If it’s stuck, tap gently with your hand—do not pry hard on sealing surfaces.
• Immediately stuff clean shop rags into the intake ports to block debris.
• Torque to 22 Nm (16 ft-lbs) when reinstalling (follow an even crisscross pattern).

Step 6: Remove the starter electrical connections

• Locate the starter in the engine valley.
• Remove the small starter signal wire connector by hand (or release clip with a pick tool if needed).
• Use a 12mm socket to remove the nut holding the main battery cable on the starter terminal.
• Move the cable aside and keep it from touching metal. This cable is always “hot” if battery connected.

Step 7: Remove the starter motor

• Use a 14mm socket with an extension to remove the starter mounting bolts.
• Lift the starter out. Use a magnetic pickup tool if a bolt tries to drop into the valley.
• Torque to 44 Nm (33 ft-lbs) when installing the starter mounting bolts.

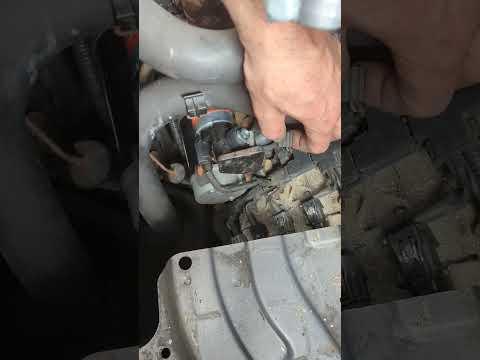

Step 8: Install the new starter

• Set the new starter in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten with a 14mm socket, then torque to 44 Nm (33 ft-lbs) using a torque wrench.
• Reconnect the main battery cable and tighten the nut with a 12mm socket; torque to 9 Nm (80 in-lbs).
• Reconnect the small signal wire connector until it clicks.
• Apply a thin wipe of dielectric grease to connector seals (not on threads).

Step 9: Reinstall the intake manifold with new gaskets

• Remove the shop rags from the intake ports.
• Install new intake manifold gaskets (seat them fully in their grooves).
• Lower the manifold into place carefully, making sure no hoses are trapped.
• Thread all nuts/bolts by hand, then tighten evenly with a 12mm socket.
• Torque to 22 Nm (16 ft-lbs) in a crisscross pattern.

Step 10: Reinstall throttle body and intake duct

• Install a new throttle body gasket and reinstall the throttle body using a 10mm socket.
• Torque to 22 Nm (16 ft-lbs).
• Reconnect throttle body connector.
• Reconnect throttle-body coolant hoses (if removed) using hose clamp pliers.
• Reinstall the intake tube and tighten clamps with an 8mm socket or flathead screwdriver.

Step 11: Refill coolant (only if you lost any)

• Top off the coolant reservoir with Honda/Acura Type 2 compatible coolant.
• Use a flashlight to check for any leaks around the throttle-body hoses.

Step 12: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and listen: it should crank strongly with no grinding.
• Let it idle for 3–5 minutes and check for coolant leaks (if hoses were removed).
• Turn the steering wheel lock-to-lock once and verify no warning lights remain.
• If idle is unstable at first, let it idle a few minutes; the throttle body may “relearn” after power loss.
• Do a short test drive, then re-check for any seepage and recheck coolant level after it cools.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
