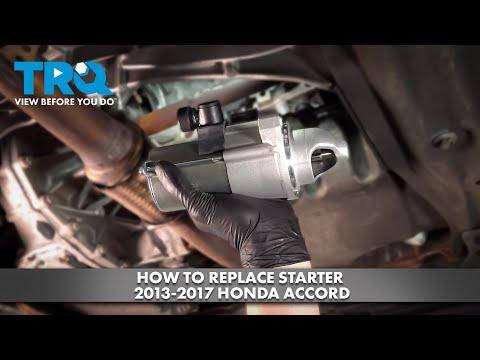

🔧 Starter Motor - Replacement

Your Accord’s starter sits tight in the engine bay, so most of the work is making room to reach it safely. The job is straightforward if you take your time and keep track of every connector, hose, and bolt you remove.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable first. The starter cable is always hot.
• Keep the key fob away from the vehicle so the engine cannot crank accidentally.
• Let the engine cool fully before working near the intake and exhaust areas.
• Use jack stands if you raise the car for access from below. Never rely on a jack alone.
• Be careful with the intake manifold and vacuum hoses. Cracks and leaks can cause a rough idle.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Extension bars
• Ratchet
• Torque wrench
• Flat-head screwdriver
• Trim clip tool
• Needle-nose pliers
• Shop light
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Battery terminal cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Shift to neutral and chock the wheels if you raise the car.
• Write down any radio presets if you want to restore them later.
• Disconnect the negative battery cable and wait 3 minutes before unplugging starter wiring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot touch the battery post.
• Torque to 5 N·m (44 in-lbs) on reassembly.

Step 2: Remove the air intake parts

• Use a flat-head screwdriver and 10mm socket to remove the air intake duct and clamps.
• Remove the intake tube, airbox cover, and any snorkel parts blocking access.
• Label every hose before removal.

Step 3: Remove the intake manifold

• Use a 10mm socket and 14mm socket with extensions to remove the intake manifold fasteners.
• Disconnect the throttle body connector, MAP sensor connector, and vacuum hoses.
• Lift the intake manifold off carefully and set it on a clean surface.
• Replace the intake manifold gasket set during reassembly.
• Torque to 22 N·m (16 ft-lbs) for intake manifold fasteners on reassembly.

Step 4: Disconnect the starter wiring

• Use a 10mm socket to remove the main battery cable nut from the starter.
• Unplug the starter solenoid connector by hand.
• Keep the cable from touching metal.

Step 5: Remove the starter motor

• Use a 14mm socket and extension to remove the starter mounting bolts.
• Support the starter with one hand as you remove the last bolt.
• Lift the starter out of the engine bay.
• Torque to 44 N·m (33 ft-lbs) for starter mounting bolts on reassembly.

Step 6: Install the new starter motor

• Position the new starter in place by hand first.
• Thread the mounting bolts in by hand before tightening.
• Reconnect the starter solenoid connector and main cable.
• Tighten the cable nut snugly with a 10mm socket.

Step 7: Reinstall the intake manifold and intake parts

• Install the new intake manifold gasket set.
• Set the manifold in place and hand-start all fasteners.
• Use a torque wrench to tighten fasteners evenly in sequence.
• Reinstall the throttle body, hoses, air duct, and clips.
• Torque to 10 N·m (89 in-lbs) for throttle body fasteners if removed.

Step 8: Reconnect the battery and test

• Use a 10mm socket to reconnect the negative battery cable.
• Start the engine and listen for fast, clean cranking.
• Check for vacuum leaks, warning lights, and loose connectors.

---

✅ After Repair

• Start the engine 2-3 times to confirm normal crank speed.
• Check the intake area for air leaks or a rough idle.
• Make sure no tools or rags were left in the engine bay.
• If the battery was weak, charge-test it before driving far.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $180-$400 (parts only)

You Save: $470-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
