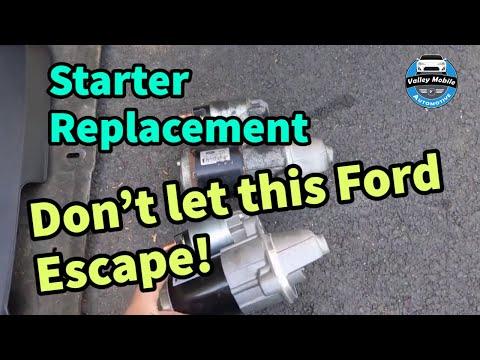

🔧 Escape - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/start button. On your Escape, it sits on the transmission bellhousing and is reached from the top and/or from underneath depending on hand clearance.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative cable before touching starter wiring (prevents shorts and burns).
• 🧯 Let the engine/turbo area cool completely; nearby parts can be very hot.
• 🧱 If lifting the Escape, support it on jack stands—never rely on a jack alone.
• ⚡ Keep tools away from the battery positive terminal and the starter B+ stud.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Metric socket set (8mm, 10mm, 13mm, 15mm)
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive extensions (3", 6", 12")
• 3/8" drive swivel socket or universal joint
• Torque wrench (10–100 ft-lbs range)
• Flat-blade screwdriver
• Trim clip removal tool
• Pick tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2-3 (Replace if supplied/recommended)
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Open the hood and keep the key/fob at least 10 feet away from the Escape so it can’t try to start.
• Disconnect the battery: use a 10mm socket to remove the negative (–) terminal first, then isolate it so it can’t spring back.
• A “swivel” helps reach bolts at an angle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake ducting (room for your hands)

• Use a flat-blade screwdriver (or the correct socket from your set if it’s a worm clamp) to loosen the intake hose clamps.
• Unclip/remove any resonator/duct pieces as needed using a trim clip removal tool.
• Move the ducting aside so you can see down toward the transmission.

Step 2: Remove the battery and battery tray (if it blocks access)

• Remove the battery hold-down using a 10mm socket.
• Lift the battery out carefully (it’s heavy).
• Remove the battery tray bolts using a 10mm socket and lift the tray out.

Step 3: Raise the front (if you need underside access)

• Lift the front of the Escape using a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set it down on jack stands (rated 3-ton minimum).
• Remove the lower splash shield (if equipped): use a trim clip removal tool and a socket set (8mm, 10mm) for the fasteners.

Step 4: Locate the starter motor and identify the wiring

• The starter is bolted to the transmission bellhousing where it meets the engine.
• You’ll see 2 electrical connections: the large B+ cable (main power) and a smaller signal connector (tells the starter to crank).
• Take a photo before removing wires.

Step 5: Disconnect the starter electrical connections

• Remove the protective cap on the large terminal using a pick tool.
• Remove the nut on the large cable using a 13mm socket, then lift the cable off the stud.
• Unplug the small signal connector by releasing the lock tab using a pick tool (a pick is a small hook tool used to lift plastic tabs without breaking them).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Remove the starter mounting bolts using a 15mm socket, 3/8" drive extensions (3", 6", 12"), and a 3/8" drive swivel socket or universal joint as needed.
• Lower and remove the starter from the vehicle.

Step 7: Compare the new starter and install it

• Match the new starter to the old one (mounting holes, nose length, and electrical stud locations).
• Position the starter and hand-thread the mounting bolts first (prevents cross-threading).
• Tighten the mounting bolts using a 15mm socket and torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 8: Reconnect the starter wiring

• Install the large B+ cable onto the starter stud and tighten using a 13mm socket and torque wrench: Torque to 12 Nm (9 ft-lbs).
• Reinstall the protective cap over the stud.
• Plug in the small signal connector until it clicks (light tug to confirm it’s locked).

Step 9: Reassemble what you removed

• Reinstall the splash shield using a trim clip removal tool and socket set (8mm, 10mm).
• Lower the Escape from the jack stands using the floor jack (rated 3-ton minimum).
• Reinstall the battery tray using a 10mm socket.
• Reinstall the battery hold-down using a 10mm socket.
• Reconnect the battery terminals: positive (+) first, then negative (–) using a 10mm socket.
• Tighten battery terminal clamps using a 10mm socket: Torque to 6 Nm (53 in-lbs).
• Reinstall the intake ducting using a flat-blade screwdriver and ensure clamps are snug.

---

✅ After Repair

• Start the Escape and confirm it cranks strongly with no clicking/grinding noises.
• Check that the intake ducting is fully seated (a loose duct can cause rough running or a check engine light).
• Look underneath for any tools left behind and verify the splash shield is secure.
• If you get a battery/charging warning light, recheck battery terminal tightness and the large starter cable nut.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $150-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
