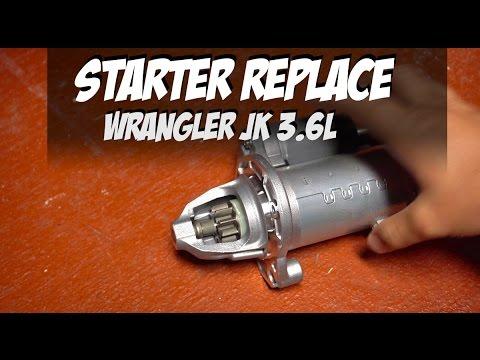

🔧 Wrangler - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. If it’s failing, you may get a single click, slow cranking, or no crank at all. On your Wrangler, the starter is mounted low on the passenger side of the engine/transmission bellhousing area.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: Fastener heads vary; tools below cover both common types.

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable first to prevent a short.
• 🧯 Keep metal tools away from the starter’s power stud (it’s direct battery power).
• 🧱 Support the Jeep with jack stands on a solid, level surface; never rely on a jack.
• 🔥 Let the exhaust cool before working underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet (3/8")
• Ratchet (1/2")
• Socket set 8mm-18mm
• 13mm socket
• 15mm socket
• External Torx E12 socket
• External Torx E14 socket
• Extension set (3", 6", 12")
• Universal joint adapter (3/8")
• Torque wrench (10-100 ft-lbs)
• Trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Work light
• Battery terminal wrench 10mm

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter solenoid terminal nut (if damaged) - Qty: 1
• Dielectric grease - Qty: 1
• Cable terminal cleaning brush - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Disconnect the battery: use a 10mm battery terminal wrench to remove the negative cable first, then position it so it can’t spring back. Negative off first prevents sparks.
• If your Wrangler has an aftermarket skid plate, plan to remove it for access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the Wrangler

• Use a floor jack (rated 3-ton minimum) to lift the front of the Jeep at a safe jacking point.
• Set it down on jack stands (rated 3-ton minimum) and gently shake the Jeep to confirm it’s stable.

Step 2: Remove any skid plate blocking access (if equipped)

• Use a socket set 8mm-18mm (commonly 13mm socket or 15mm socket) with a ratchet (1/2") to remove skid plate bolts.
• Set the skid plate and hardware aside in order.

Step 3: Locate the starter

• From underneath on the passenger side, look where the engine meets the transmission (bellhousing).
• You’ll see the starter (a small motor) with a smaller cylinder on it (the solenoid).

Step 4: Disconnect the starter wiring

• Remove the small signal-wire connector (usually a push-on or clip) using needle-nose pliers or your fingers.
• Remove the main battery cable nut from the starter’s large power stud using a 13mm socket with a ratchet (3/8") and extension set (3", 6", 12").
• Move the cables aside so they can’t touch metal.
• Clean the cable ends with a cable terminal cleaning brush and apply a thin film of dielectric grease. (Dielectric grease helps prevent corrosion.)
• Torque to 10 Nm (89 in-lbs / 7 ft-lbs) for the starter power stud nut when reinstalling.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand while loosening the bolts with the other.
• Use either a 15mm socket or External Torx E12 socket (some starters use E-Torx bolt heads) on a ratchet (3/8") with extension set (3", 6", 12").
• If access is tight, use a universal joint adapter (3/8").
• Remove the bolts fully, then lower the starter out.
• Torque to 54 Nm (40 ft-lbs) for starter mounting bolts during installation.

Step 6: Install the new starter

• Position the new starter into place by hand.
• Start the mounting bolts by hand first to avoid cross-threading.
• Tighten with a torque wrench (10-100 ft-lbs) to Torque to 54 Nm (40 ft-lbs).

Step 7: Reconnect the wiring

• Install the main battery cable onto the large starter stud and tighten with a 13mm socket.
• Use a torque wrench (10-100 ft-lbs) to set the stud nut to Torque to 10 Nm (89 in-lbs / 7 ft-lbs).
• Reconnect the small signal-wire connector until it fully seats/clicks.
• Loose wiring causes no-crank.

Step 8: Reinstall skid plate (if removed) and lower the Jeep

• Reinstall the skid plate using the same 13mm socket or 15mm socket you removed it with.
• Snug bolts evenly, then lower the Jeep using the floor jack (rated 3-ton minimum).

Step 9: Reconnect the battery

• Reconnect the negative battery cable using a 10mm battery terminal wrench.
• Ensure the terminal is tight and doesn’t rotate by hand.

---

✅ After Repair

• Start the engine and verify it cranks strongly and starts normally.
• Listen for grinding or “whirring” after start; if heard, shut off and recheck starter seating/bolts.
• Check that the main starter cable is not touching the exhaust or any sharp edge.
• Take a short drive and recheck for any loose hardware or new noises.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
