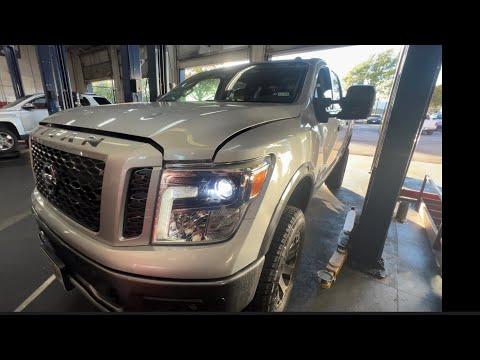

🔧 TITAN - Starter Motor Replacement

Your TITAN’s starter motor spins the engine so it can start. When it fails, you may get a single click, slow cranking, or no crank at all. This job is mostly access from underneath and careful handling of the battery cable on the starter.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching the starter wiring (the main cable is always “hot”).
• ⚠️ Support the truck with jack stands on a solid, level surface; never rely on a jack alone.
• ⚠️ Let the exhaust cool before working underneath (burn risk near the bellhousing area).
• ⚠️ Keep the starter’s main power cable from contacting ground/metal while disconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 6" extension (3/8")
• 12" extension (3/8")
• Torque wrench (10–150 ft-lbs)
• Trim clip remover
• Flathead screwdriver
• Work light
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if damaged) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and disconnect the battery negative terminal using a 10mm socket.
• Tip: Set the cable aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the truck

• Lift the front with a floor jack (rated 3-ton minimum) at a safe front lifting point.
• Set the frame securely onto jack stands (rated 3-ton minimum) and gently lower the truck onto them.
• Give the truck a firm shake to confirm it’s stable before getting underneath.

Step 2: Remove the front skid plate(s) if equipped

• Use a 12mm socket and/or 14mm socket with a 3/8" drive ratchet to remove skid plate bolts.
• If there are plastic clips, remove them with a trim clip remover or flathead screwdriver.
• Set the skid plate hardware aside in a small tray so you don’t lose it.

Step 3: Locate the starter motor

• From underneath, aim your work light at the engine/transmission joint (bellhousing).
• The starter is a small motor with a smaller “solenoid” attached and one thick power cable connected.

Step 4: Disconnect the starter electrical connections

• Unplug the starter solenoid connector by pressing the lock tab (use a flathead screwdriver gently if needed).
• Remove the rubber boot from the main power terminal.
• Use a 12mm socket to remove the nut holding the main power cable to the starter.
• Tip: Don’t twist the cable—pull it straight off.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 3/8" drive ratchet and a 6" extension (3/8") or 12" extension (3/8") to remove the starter mounting bolts.
• Remove the starter and guide it out carefully.

Step 6: Compare the new starter to the old one

• Confirm the new starter matches the old one: same mounting ears, same electrical post location, same connector.
• If your new unit didn’t come with a protective cap/boot, transfer the boot from the old starter.

Step 7: Install the new starter

• Position the starter into place by hand.
• Start the mounting bolts by hand first (this prevents cross-threading).
• Tighten using a 14mm socket and 3/8" drive ratchet, then use a torque wrench (10–150 ft-lbs) to final-tighten.
• Torque to OEM specification (starter mounting bolt torque varies by build and fastener style).

Step 8: Reconnect the electrical connections

• Clean the cable end lightly with a battery terminal brush if it’s corroded.
• Install the main power cable onto the starter terminal and tighten the nut using a 12mm socket and a torque wrench (10–150 ft-lbs).
• Torque to OEM specification (overtightening can crack the solenoid stud).
• Apply a small amount of dielectric grease to the solenoid connector seal, then plug it in until it clicks.
• Reinstall the rubber boot over the main terminal.

Step 9: Reinstall skid plate(s)

• Lift skid plate(s) into place and start bolts by hand.
• Tighten using a 12mm socket and/or 14mm socket with a 3/8" drive ratchet.
• Torque to OEM specification for skid plate fasteners.

Step 10: Lower the truck and reconnect the battery

• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower to the ground.
• Reconnect the battery negative terminal using a 10mm socket.
• Torque to OEM specification (snug is typically sufficient—don’t strip the clamp).

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding/whirring during cranking; if present, shut it off and recheck starter seating and bolts.
• Check that all wiring is clipped up and not touching exhaust or moving parts.
• If you had a “no crank” issue before, verify your battery terminals are clean and tight.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
