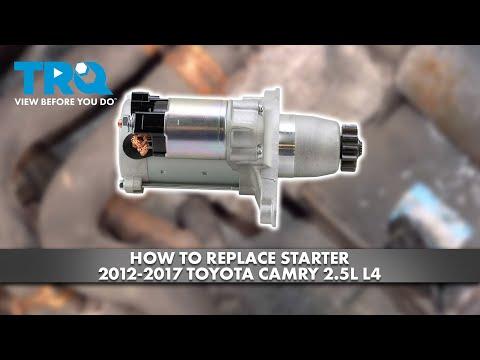

🔧 Camry - Starter Motor Replacement

On your Camry, the starter sits on the transmission bellhousing and is tucked under the intake manifold. Replacing it is mostly about safe electrical work (no shorts) and carefully moving the intake manifold out of the way so you can reach the starter bolts and wiring.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent a dangerous short at the starter power cable.
• ⚠️ Work on a cool engine; the intake area and exhaust can burn you.
• ⚠️ If you raise the front, support the car with jack stands before going underneath.
• Keep dirt and hardware out of the intake ports once the intake manifold is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 6" socket extension
• 12" socket extension
• Universal joint socket adapter
• 10mm wrench
• Needle-nose pliers
• Flat trim tool
• Pick tool
• Shop towels
• Masking tape
• Permanent marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Intake manifold gasket - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep your keys away from the car (prevents accidental cranking).
• Label connectors and hoses with masking tape as you unplug them. Pictures help a lot.
• Disconnect the battery: use a 10mm wrench to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and air intake tube

• Pull up to remove the plastic engine cover (no tools).
• Use a 10mm socket to loosen the intake hose clamps and remove the intake tube from the air box to the throttle body.
• Unclip/unplug any small vacuum lines or sensor connectors on the intake tube using a pick tool gently if needed.

Step 2: Remove the air cleaner box (as needed for access)

• Unclip the air box lid and remove the air filter.
• Use a 10mm socket to remove the air box fasteners, then lift the air box out.

Step 3: Unplug and move the throttle body out of the way

• Unplug the throttle body electrical connector by pressing the lock tab (use a pick tool carefully if the tab is stubborn).
• Use a 10mm socket to remove the throttle body bolts.
• Move the throttle body aside without stressing hoses/wiring; support it with a shop towel.
• Torque to 10 Nm (89 in-lbs) when reinstalling throttle body bolts.
• Replace the throttle body gasket during reassembly.

Step 4: Disconnect hoses and connectors on the intake manifold

• Disconnect the PCV hose and vacuum/EVAP hoses using needle-nose pliers for clamps.
• Unplug any intake manifold sensors/connectors (label with masking tape).
• Remove any wiring clips attached to the manifold using a flat trim tool.

Step 5: Remove the intake manifold

• Use a 12mm socket with a 6" extension to remove the intake manifold nuts/bolts.
• If equipped with a support bracket, remove it using a 12mm socket (a universal joint socket adapter may help).
• Pull the intake manifold straight off the studs.
• Immediately stuff clean shop towels into the intake ports to prevent anything from falling in.
• Torque to 21 Nm (15 ft-lbs) when reinstalling intake manifold fasteners.
• Replace the intake manifold gasket during reassembly.

Step 6: Access the starter wiring

• Locate the starter under the removed manifold area, mounted to the transmission bellhousing.
• Remove the small solenoid signal connector by pressing the lock tab (use a pick tool carefully).
• Remove the rubber boot from the main power terminal.
• Use a 12mm socket to remove the main power cable nut and lift the cable off.
• Torque to 9 Nm (80 in-lbs) when reinstalling the starter power cable nut.
• Apply a thin smear of dielectric grease inside the boot before reinstalling.

Step 7: Remove the starter motor

• Use a 14mm socket with a 12" extension to remove the two starter mounting bolts.
• Support the starter with one hand as the last bolt comes out, then lift it out.

Step 8: Install the new starter motor

• Position the new starter in place and hand-thread both mounting bolts to avoid cross-threading.
• Use a 14mm socket to tighten the mounting bolts.
• Torque to 39 Nm (29 ft-lbs) for the starter mounting bolts.
• Reconnect the main power cable and nut using a 12mm socket and reinstall the rubber boot.
• Reconnect the solenoid signal connector until it clicks.

Step 9: Reinstall the intake manifold and throttle body

• Remove the shop towels from the intake ports.
• Install the intake manifold with a new gasket; use a 12mm socket to snug fasteners evenly.
• Torque to 21 Nm (15 ft-lbs) for the intake manifold fasteners.
• Reinstall the throttle body with a new gasket using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) for throttle body bolts.
• Reconnect all hoses, wiring clips, and electrical connectors (match your labels).

Step 10: Reinstall the air box and intake tube

• Reinstall the air box and tighten fasteners using a 10mm socket.
• Reinstall the intake tube and tighten clamps using a 10mm socket.
• Reinstall the engine cover.

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm wrench.
• Make sure the terminal is fully seated and tight (do not overtighten).

---

✅ After Repair

• Turn the key to ON (engine off) for 10 seconds, then start the engine normally. Helps the throttle relearn.
• Verify the engine cranks strongly and starts every time.
• Listen for abnormal grinding or a whine after start; if present, recheck starter seating and bolts.
• Check that no warning lights come on and that idle is smooth.
• Recheck for any vacuum leaks (hissing sound) around the intake manifold and throttle body.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
