🔧 CR-V - Starter Motor Replacement

You’ll be removing the old starter from your CR-V and installing a new one. The starter is what spins the engine when you turn the key or press start, so a weak or dead starter can cause no-crank issues.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always disconnect the negative battery cable before touching the starter wiring to avoid shorts and sparks.
• 🛑 You’ll be working close to the engine and under the front of the vehicle. Use a floor jack and jack stands correctly; never rely on a jack alone.
• 🛑 Let the engine cool completely before starting; hot exhaust and engine parts can burn you.
• 🛑 Keep the ignition OFF and key removed while working on the starter circuit.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 13mm socket
• 🧰 14mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (5–75 ft-lbs range)
• 🧰 3/8" drive 6" extension
• 🧰 Flathead screwdriver (medium)
• 🧰 Needle-nose pliers
• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Wheel chocks
• 🧰 Work light or flashlight
• 🧰 Gloves
• 🧰 Safety glasses
• 🧰 Fender cover
• 🧰 Small wire brush

A torque wrench lets you tighten bolts to a specific force.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Starter motor (for 2.4L engine, AWD) - Qty: 1
• 🧱 Starter mounting bolt set - Qty: 1 (optional but recommended)
• 🧱 Battery terminal cleaning brush - Qty: 1
• 🧱 Dielectric grease - Qty: 1 small tube
• 🧱 Anti-seize compound - Qty: 1 small tube
• 🧱 Cable tie set - Qty: 1 (for securing any loose wiring/loom)

---

📋 Before You Begin

• 🧭 Park the CR-V on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• 🔌 Turn ignition OFF, remove the key, and make sure all accessories are off.
• 🔋 Open the hood and locate the battery on the left (driver’s) side.
• 🔌 You will disconnect the negative (-) battery cable first and reconnect it last.
• 🧭 Plan to access the starter from the top (through the intake area) and from underneath.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket with the ratchet to loosen the nut on the negative (-) battery terminal clamp.
• Lift the negative cable off the post and tuck it aside so it cannot spring back. Wrap it in a rag if needed.
• Use the 10mm socket again if needed to loosen and remove the positive cable later, but leave it on for now.

Step 2: Raise and secure the front of the CR-V

• Use the floor jack to lift the front of the CR-V at the front jacking point (center front subframe crossmember).
• Place jack stands under the left and right front pinch welds or frame points, then gently lower the vehicle onto the stands.
• Give the vehicle a shake to confirm it’s solid on the stands. Never work under a car on a jack only.

Step 3: Remove the intake air ducting for access (top side)

• Open the hood fully and install the fender cover over the front fender to protect paint.
• Locate the plastic air intake duct and air cleaner box on the right (passenger) side of the engine bay.

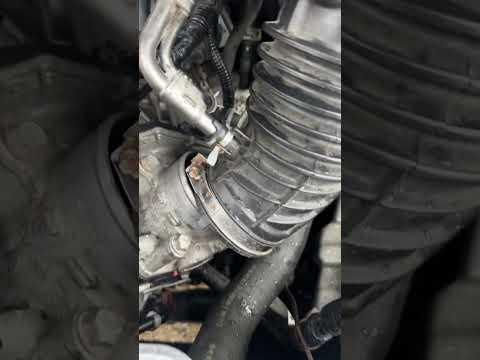

• Use a flathead screwdriver to loosen the hose clamp at the throttle body.
• Unclip or unsnap any air duct clips by hand or with the flathead screwdriver.
• Lift the duct and upper air box section out and set aside to create space near the front top of the engine.

Step 4: Locate the starter

• From above, look down between the engine and the radiator side of the bay. The starter is mounted on the front of the engine/transmission area, below the intake manifold.
• From underneath, use the work light to look up near the transmission bellhousing on the front side of the engine. You’ll see the starter body (cylindrical, with a smaller solenoid attached) and its wiring.

Step 5: Disconnect wiring from the starter (from below)

• With the vehicle safely on stands, slide under from the front.
• Locate the small push-on connector (solenoid signal wire). Use needle-nose pliers to gently pull the connector off the terminal. Pull on connector, not the wire.
• Locate the larger battery cable attached with a nut at the back of the starter solenoid.
• Use a 12mm or 13mm socket (depending on nut size) with the ratchet to remove the nut and washer from this terminal.
• Pull the heavy cable eyelet off the stud and move it aside.

Step 6: Remove starter mounting bolts

• The starter is held to the engine/transmission by 2 mounting bolts, accessible mainly from underneath, sometimes one from above for easier reach.
• Use a 14mm socket with a 6" extension and ratchet to loosen and remove the lower starter mounting bolt from underneath.
• For the upper bolt, you may reach from above or below:
  • If from above: reach down from the top and use the 14mm socket, extension, and ratchet.
  • If from below: again use the 14mm socket, extension, and ratchet while guiding the tool with your other hand.
• Support the starter with one hand as you remove the last bolt so it doesn’t drop.
• Note the bolt lengths and positions if they differ.

Step 7: Remove the starter from the vehicle

• Once both bolts are out, carefully pull the starter away from the engine/transmission.
• You may need to wiggle and rotate it to clear nearby parts. Take your time and avoid forcing it against wiring or hoses.
• Remove the starter either downwards (usually easiest) or upwards through the gap created by removing the air duct.

Step 8: Prepare the mounting surface and new starter

• Use the small wire brush to clean the starter mounting pad on the engine/transmission where the starter seats. This helps a good ground connection.
• Lightly apply anti-seize compound to the threads of the starter mounting bolts. Use a very thin coat.
• Compare the old and new starters: check mounting points, gear location, and electrical connections to ensure they match.

Step 9: Install the new starter

• Slide the new starter into position, aligning the gear and housing with the opening in the engine/transmission.
• Hand-thread the upper and lower mounting bolts by hand to avoid cross-threading.
• Once snug by hand, use the 14mm socket, extension, and ratchet to tighten both bolts evenly.
• Then use the 3/8" drive torque wrench with the 14mm socket to torque both mounting bolts to 44 Nm (33 ft-lbs).

Step 10: Reconnect starter wiring

• Slide the heavy battery cable eyelet back onto the large stud on the starter solenoid.
• Install the nut and washer by hand to avoid cross-threading.
• Use the 12mm or 13mm socket and ratchet to snug the nut.
• Then torque this nut with the torque wrench and same socket to 9.8 Nm (7.2 ft-lbs). Do not overtighten.
• Apply a small dab of dielectric grease to the small push-on terminal.
• Push the small solenoid connector firmly onto its terminal by hand until it clicks or feels fully seated.

Step 11: Reinstall intake ducting (top side)

• From above, reinstall the air intake duct and any airbox parts you removed earlier.
• Slide the hose fully onto the throttle body.
• Use the flathead screwdriver to tighten the hose clamp snugly (do not strip it).
• Reconnect any clips or small hoses you removed.

Step 12: Lower the CR-V

• Use the floor jack to lift the front of the vehicle slightly off the jack stands.
• Remove the jack stands from both sides.
• Lower the vehicle fully back onto the ground with the floor jack.

Step 13: Reconnect the battery

• Use a battery terminal cleaning brush to clean both battery posts and the inside of the terminal clamps if they look dirty or corroded.
• Place the positive (+) cable clamp on the positive post (if you removed it) and use the 10mm socket and ratchet to tighten the nut until snug.
• Place the negative (-) cable clamp back on the negative post.
• Use the 10mm socket to tighten the negative terminal nut snugly. Do not over-tighten.
• Torque to 5.4 Nm (48 in-lbs) if you wish to be precise.

Step 14: Final checks under the hood

• Check that all tools are removed from the engine bay and under the vehicle.
• Verify that all connectors are plugged in and all ducts/hoses are back in place.
• Make sure no wires are pinched or rubbing against sharp edges. Use cable ties to secure any loose wiring if needed.

---

✅ After Repair

• 🔑 Sit in the driver’s seat, make sure the transmission is in Park, and turn the key to start. The engine should crank strongly and start quickly.
• 👂 Listen for any unusual grinding or whining noises from the starter area. If you hear grinding, shut off immediately and recheck starter alignment and mounting bolts.
• 🔋 Check that your clock, radio presets, and power windows work. You may need to reset the auto-up/down window function by holding the switch up for a few seconds.
• 🚗 Take a short drive and restart the engine several times to confirm the issue is fixed.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$750 (parts + labor)

DIY Cost: $120–$250 (parts only)

You Save: $330–$500 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
