🔧 Explorer - Starter Motor Replacement

The starter motor cranks your A4’s—sorry—your Explorer’s engine when you turn the key. If the starter is failing, you may hear a single click, slow cranking, or no crank at all. This job is mostly access from underneath and careful handling of the main power cable.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring (the main cable is always “hot” otherwise).
• ⚠️ Support your Explorer with jack stands on solid level ground; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool fully if you just drove (burn risk near the bellhousing area).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Universal joint adapter (3/8" drive)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Flat trim tool
• Torque wrench (3/8" drive, 10–80 Nm range)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2 (recommended if supplied/required)
• Electrical terminal nut kit - Qty: 1 (only if threads/nuts are damaged)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Use wheel chocks on the rear wheels.
• Open the hood and disconnect the battery negative terminal using a 10mm socket. (Negative terminal = the “-” side.)
• Raise the front and support securely on jack stands using a floor jack.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery (if not already done)

• Use a 10mm socket to loosen the negative battery terminal clamp and remove it.
• Tuck the cable aside so it can’t spring back onto the battery post. Prevents accidental sparks.

Step 2: Remove the lower splash shield (if equipped)

• From under the front, use an 8mm socket and a flat trim tool to remove the bolts/clips holding the shield.
• Set the hardware aside in a small container so you don’t lose it.

Step 3: Locate the starter motor

• From underneath, look where the engine meets the transmission (the bellhousing area).

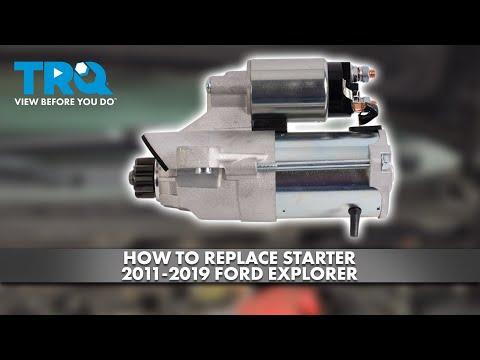

• The starter is a cylinder-shaped motor with a smaller cylinder (solenoid) attached, and it has a thick power cable going to it.

Step 4: Disconnect the starter electrical connections

• Remove the small signal wire first (usually on a small stud/connector) using a 10mm socket.
• Remove the main battery power cable nut using a 13mm socket, then lift the cable off the stud.
• Torque to 9 Nm (80 in-lbs) for the main power cable nut during reassembly.
• Avoid twisting the stud; hold the cable straight.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 13mm socket with a 3/8" ratchet, plus a 6" extension (and universal joint adapter if needed) to remove the two starter mounting bolts.
• Lower the starter out carefully once the bolts are removed.

Step 6: Install the new starter

• Position the new starter into place and start both mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts using a 13mm socket and 3/8" ratchet.
• Torque to 35 Nm (26 ft-lbs) for the starter mounting bolts.

Step 7: Reconnect the starter wiring

• Install the main power cable onto the starter stud and tighten the nut using a 13mm socket.
• Torque to 9 Nm (80 in-lbs) for the main power cable nut.
• Reconnect the small signal wire and tighten using a 10mm socket.
• Torque to 3 Nm (27 in-lbs) for the small terminal nut (snug only).

Step 8: Reinstall the splash shield

• Reinstall the shield using an 8mm socket and the flat trim tool for the clips.
• Snug the fasteners evenly (do not overtighten plastic clips).

Step 9: Reconnect the battery and lower the vehicle

• Lower the Explorer off the jack stands using the floor jack.
• Reconnect the negative battery terminal using a 10mm socket (snug, do not crush the terminal).

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check that no warning lights appear and that the starter area has no loose wiring.
• Recheck the main power cable nut for tightness after a short test drive (engine off, key out).

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹8,000-₹22,000 (parts only)

You Save: ₹10,000-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,000/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
