🔧 Juke - Starter Motor Replacement

The starter motor spins your engine to begin starting. If you’re getting a single click, slow cranking, or no-crank (with a good battery), replacing the starter is a common fix.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

Assumption: stock starter location at transmission bellhousing (typical Juke 1.6L layout).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent an electrical short.
• ⚠️ Support your A4—use jack stands, never only a jack.
• ⚠️ Let the engine cool; the starter sits near hot parts.
• ⚠️ Keep metal tools away from the starter’s main power stud (B+).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 13mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–100 Nm range)
• 3/8" extension set (3", 6", 10")
• 3/8" wobble extension
• Trim clip remover
• Flathead screwdriver
• Needle-nose pliers
• Work light
• Battery terminal puller (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut kit - Qty: 1
• Battery terminal anti-corrosion grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Pop the hood and keep your key away from the vehicle so nobody tries to crank it.
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then isolate it so it can’t spring back.
• If you need under-car access, raise the front with a floor jack and support it with jack stands at the approved lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove top-side access parts

• Use a flathead screwdriver to loosen the intake hose clamp(s), then remove the intake ducting that blocks access.
• If the battery and/or battery tray blocks access, remove it:
  • Use a 10mm socket to remove the battery hold-down.
  • Lift the battery out carefully (it’s heavy).
  • Use a 12mm socket or 13mm socket to remove the battery tray bolts (varies by tray hardware).
• Tip: Take a quick photo before unplugging anything.

Step 2: Remove the lower splash shield (if equipped)

• From under the front, use a trim clip remover and 10mm socket to remove the under-engine cover fasteners.
• Set the clips/bolts aside in a small container so they don’t disappear.

Step 3: Locate the starter motor

• The starter is mounted to the transmission bellhousing where the engine and transmission meet.
• Look for a small cylinder-shaped motor with:
  • A thick cable on a main power stud (B+).
  • A smaller plug or small wire for the solenoid signal.

Step 4: Disconnect the starter wiring

• Unplug the small solenoid connector using needle-nose pliers (if it has a locking tab, gently lift the tab first).
• Remove the nut from the main power cable stud using a 12mm socket (common) or 13mm socket (varies), then pull the cable off.
• Move the cable aside so it cannot touch metal.
• Torque on reassembly: Torque to 9–12 Nm (80–106 in-lbs) for the main cable nut.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand so it doesn’t drop.
• Use a 14mm socket, 3/8" ratchet, and a 3/8" extension (add a wobble extension if needed) to remove the starter mounting bolts (typically 2 bolts).

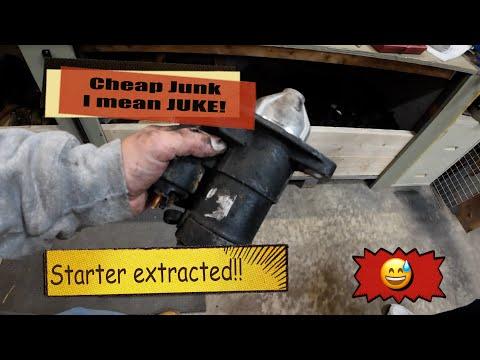

• Pull the starter straight out of the bellhousing.
• Torque on reassembly: Torque to 44–54 Nm (32–40 ft-lbs) for the starter mounting bolts.
• Tip: Break bolts loose, then spin out by hand.

Step 6: Compare parts and install the new starter

• Compare the old and new starter: mounting ears, electrical stud location, and connector style should match.
• Slide the new starter into place, aligning it with the bellhousing.
• Hand-thread the mounting bolts first to avoid cross-threading.
• Use a 14mm socket and 3/8" torque wrench to tighten: Torque to 44–54 Nm (32–40 ft-lbs).

Step 7: Reconnect starter wiring

• Install the main power cable on the stud and tighten with a 12mm socket or 13mm socket: Torque to 9–12 Nm (80–106 in-lbs).
• Reconnect the solenoid connector until it clicks/locks.
• Route the wiring exactly like it was so it can’t rub on anything.

Step 8: Reinstall covers, tray, and battery

• Reinstall the splash shield using a trim clip remover and 10mm socket.
• Reinstall the battery tray using a 12mm socket or 13mm socket.
• Install the battery and hold-down using a 10mm socket.
• Reconnect the battery terminals: positive first (if removed), negative last using a 10mm socket.
• Torque (battery terminal clamp): Torque to 5–6 Nm (44–53 in-lbs).
• Add a thin layer of battery terminal anti-corrosion grease after tightening.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• With the engine running, check that no warning lights appear related to low voltage.
• Listen near the starter area for rubbing or abnormal noises.
• Recheck the starter main cable nut after a short drive (engine off, key out).

---

💰 DIY vs Shop Cost

Shop Cost: $450–$900 (parts + labor)

DIY Cost: $150–$450 (parts only)

You Save: $300–$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
