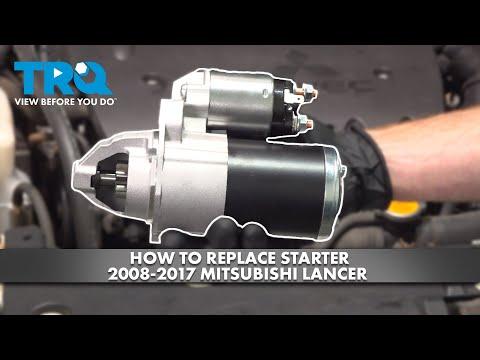

🔧 Lancer - Starter Motor Replacement

Your starter motor is the electric motor that cranks the engine when you turn the key. Replacing it means disconnecting the battery, unplugging the starter wiring, unbolting the starter from the transmission bellhousing, and installing the new one.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal first to prevent shorts and burns.
• ⚠️ Support the car on jack stands before working underneath; never rely on a floor jack alone.
• ⚠️ Keep tools away from the positive battery cable and starter power stud (it is always “hot” if the battery is connected).
• ⚠️ Let the engine cool; you’ll be working near hot exhaust parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 6" extension
• 12" extension
• Universal swivel joint 3/8" drive
• Torque wrench 3/8" drive (10-100 Nm range)
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Flashlight
• Fender cover
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter electrical terminal nut(s) - Qty: 1
• Dielectric grease - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and install a fender cover to protect paint.
• Assumption: Typical torque specs are provided; if your new starter includes instructions, follow those specs first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" ratchet to loosen the negative (-) battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.
• Always remove negative first.

Step 2: Remove the intake ducting for access

• Use a flathead screwdriver to loosen the intake hose clamp(s) near the air duct.
• Use needle-nose pliers to release any small hose clamps and move hoses off the duct if needed.
• Remove the intake duct and set it aside.

Step 3: Raise and support the front of the car

• Lift the front using a floor jack (rated 2-ton minimum) at the front jack point.
• Set the car down securely on jack stands (rated 2-ton minimum).
• Use a flashlight to locate the starter at the transmission bellhousing area.

Step 4: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool to pop out plastic clips.
• Use a 10mm socket and 3/8" ratchet to remove any bolts holding the shield.
• Lower the shield and set it aside.

Step 5: Unplug the starter control connector

• Locate the small electrical plug on the starter solenoid.
• Press the lock tab and pull it off by hand; if stuck, gently help it with needle-nose pliers (don’t crush it).
• Apply a thin film of dielectric grease to the connector seal during reassembly.

Step 6: Remove the starter main power cable

• Pull back the rubber boot on the starter’s large power stud.
• Use a 12mm socket with a 6" extension and 3/8" ratchet to remove the nut holding the cable.
• Move the cable aside so it cannot touch metal.

Step 7: Remove the starter mounting bolts

• Support the starter with one hand while loosening bolts with the other.
• Use a 14mm socket with a 12" extension and universal swivel joint 3/8" drive to remove the starter mounting bolt(s).
• Carefully pull the starter straight out from the bellhousing.
• Don’t let it hang on wires.

Step 8: Compare the old and new starter

• Match the nose length, mounting ears, and electrical terminals.
• If any heat shield/bracket is attached, transfer it using the appropriate metric socket set 8mm-19mm.

Step 9: Install the new starter

• Position the starter into the bellhousing opening by hand.
• Start the mounting bolts by hand first to avoid cross-threading.
• Tighten using a 14mm socket and 3/8" ratchet, then final-tighten with a torque wrench 3/8" drive (10-100 Nm range) (a torque wrench measures tightening force).
• Torque to 44 Nm (32 ft-lbs) for the starter mounting bolts.

Step 10: Reconnect the starter wiring

• Install the main power cable on the starter stud and hand-thread the nut.
• Use a 12mm socket and torque wrench 3/8" drive (10-100 Nm range) to tighten the nut.
• Torque to 9 Nm (80 in-lbs) for the starter B+ terminal nut.
• Reinstall the rubber boot over the stud.
• Plug the small control connector back in until it clicks.

Step 11: Reinstall splash shield and lower the car

• Reinstall the shield using the trim clip removal tool and 10mm socket.
• Lift slightly with the floor jack (rated 2-ton minimum), remove jack stands (rated 2-ton minimum), and lower the car.

Step 12: Reinstall the intake ducting

• Reinstall the intake duct and any small hoses.
• Use a flathead screwdriver to tighten the hose clamps snugly.

Step 13: Reconnect the battery

• Use a battery terminal brush to clean the battery post and terminal if needed.
• Install the negative (-) cable and tighten using a 10mm socket.
• Spray with battery terminal anti-corrosion spray.

---

✅ After Repair

• Start the engine and listen: cranking should be smooth and strong.
• Check that no warning lights appear related to loose connections.
• Recheck under the hood for any loose tools, unplugged hoses, or intake clamps.
• If you hear a grinding noise, shut off immediately and recheck starter seating/bolts.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$380 (parts only)

You Save: $310-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
