🔧 Tacoma - Starter Motor Replacement

Your Tacoma’s starter motor cranks the engine. When it fails, you’ll get a click/no-crank, slow crank, or intermittent starting. On the 4.0L V6, access can be either from the top (under the intake) or from the side/bottom—first we’ll confirm which layout you have.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first—starter wiring is always “hot” and can short.
• ⚠️ Let the engine cool before working near the intake and exhaust areas.
• ⚠️ If lifting the truck, support it on jack stands on a solid, level surface—never rely on a jack alone.
• ⚠️ Keep tools away from the battery positive terminal and the starter main cable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive extension set
• 1/2" drive extension set
• Universal joint adapter
• Torque wrench (10–100 ft-lbs)
• Flathead screwdriver
• Needle-nose pliers
• Trim clip removal tool
• Shop light
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and keep your key out of the ignition while working.
• Disconnect the battery: use a 10mm socket to remove the negative (–) cable first and isolate it so it can’t spring back.
• Quick check (important): look for the starter location—do you see it on the side of the engine/transmission area from underneath, or is it hidden under the intake manifold on top? If you tell me what you see, I can confirm the correct path.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which starter access layout you have

• Use a shop light and look down behind the throttle body area: if you can’t see the starter and it looks “buried,” you likely have the under-intake style.
• Safely raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum); look up near the bellhousing—if the starter is visible with wiring attached, you have side/bottom access.
• Don’t proceed until you visually confirm it.

Step 2A: Top-access removal (starter under the intake manifold)

• Remove the engine cover (if equipped) using a 10mm socket.
• Loosen the air intake tube clamps using a flathead screwdriver, then remove the intake tube/air ducting.
• Disconnect electrical connectors you remove by pressing the lock tab; use needle-nose pliers only if needed (don’t crush the tab).
• Remove the throttle body fasteners using a 10mm socket and set it aside carefully (do not stress the wiring). Torque to 10 Nm (89 in-lbs) during reassembly.
• Remove the upper intake manifold (intake plenum—this is the top half of the intake that feeds air to the engine) fasteners using a 12mm socket with extensions as needed.
• Lift the intake plenum off and cover the open intake ports with a clean rag to prevent anything from falling in.
• During reassembly, tighten intake fasteners evenly in a crisscross pattern: Torque to 21 Nm (15 ft-lbs).

Step 3A: Disconnect starter wiring (top-access path)

• Locate the starter solenoid connections.
• Remove the small control wire nut/connector using a 10mm socket (or depress the connector tab if it’s a plug-style).
• Remove the main battery cable nut using a 12mm socket and move the cable aside.
• Take a quick photo before removing wires.

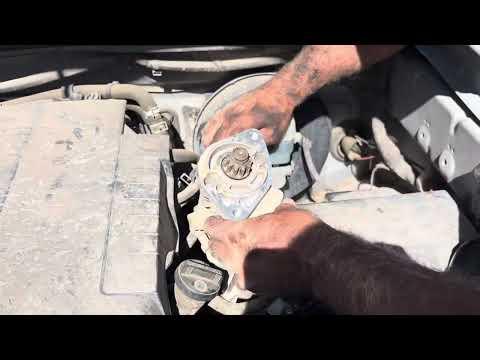

Step 4A: Remove the starter (top-access path)

• Remove the starter mounting bolts using a 14mm socket with extensions and a universal joint adapter as needed.
• Lift the starter out carefully (it’s heavier than it looks).
• During reassembly: Torque starter mounting bolts to 39 Nm (29 ft-lbs).

Step 2B: Side/bottom-access removal (starter visible at bellhousing)

• Raise and support the front using a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum).
• If a skid plate/splash shield blocks access, remove bolts/clips using a 12mm socket and trim clip removal tool.

Step 3B: Disconnect starter wiring (side/bottom path)

• Remove the small control wire nut/connector using a 10mm socket (or depress the connector tab if it’s a plug-style).
• Remove the main battery cable nut using a 12mm socket, then move the cable away from the stud.
• Apply a small amount of dielectric grease during reassembly to help prevent corrosion (don’t pack the connector full).

Step 4B: Remove the starter (side/bottom path)

• Support the starter with one hand.
• Remove the starter mounting bolts using a 14mm socket, ratchet, and extensions.
• Remove the starter from the bellhousing area.
• During reassembly: Torque starter mounting bolts to 39 Nm (29 ft-lbs).

Step 5: Install the new starter and reassemble

• Position the new starter and hand-start the mounting bolts to avoid cross-threading.
• Tighten with a torque wrench (10–100 ft-lbs) (a torque wrench is a tool that tightens bolts to an exact safe tightness): Torque to 39 Nm (29 ft-lbs).
• Reconnect the main battery cable and the small control wire using 12mm socket and 10mm socket.
• If you removed the intake plenum/throttle body, install new gaskets and reassemble:
  • Intake fasteners: use 12mm socket, then Torque to 21 Nm (15 ft-lbs).
  • Throttle body fasteners: use 10mm socket, then Torque to 10 Nm (89 in-lbs).
• Reinstall intake tubing and tighten clamps using a flathead screwdriver.

Step 6: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check that no warning lights appear and that idle is normal.
• Look and listen for air leaks (hissing) if the intake was removed.
• Recheck the starter wiring area for any loose cables or rubbing.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
