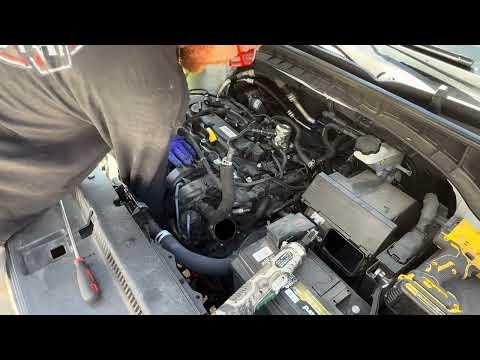

🔧 Tucson - Starter Motor Replacement

Replacing the starter motor on your Tucson means removing the old electric motor that cranks the engine and installing a new one. On the 2.4L engine, the starter is mounted low on the transmission side of the engine and is accessed best from underneath.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter. The starter’s large power wire is always hot when the battery is connected.
• ⚠️ Let the engine and exhaust cool completely before working underneath.
• ⚠️ Support your Tucson with jack stands, not just a floor jack. A floor jack lifts; jack stands hold the vehicle safely.
• ⚠️ Wear safety glasses because dirt and rust can fall while working under the engine.
• ⚠️ Keep track of wire positions on the starter so they go back on the same terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• Torque wrench rated 10-100 ft-lbs
• Flat-blade screwdriver
• Trim clip removal tool
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Mechanic gloves
• Safety glasses
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2, if damaged or corroded
• Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• Park your Tucson on level ground and shift the transmission to Park.
• Set the parking brake firmly.
• Place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool fully.
• Disconnect the negative battery cable using a 10mm wrench. The negative cable is usually marked with a minus sign.
• Lift the front of the vehicle using a floor jack rated 3-ton minimum and support it with jack stands rated 3-ton minimum.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm wrench to loosen the negative battery cable clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Tip: Tuck the cable away safely.

Step 2: Raise and Support the Front

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 3-ton minimum to lift the front of your Tucson at the front center jacking point.
• Place jack stands rated 3-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands and shake the vehicle lightly to confirm it is stable.

Step 3: Remove the Lower Engine Splash Shield

• Use a 10mm socket and 3/8-inch drive ratchet to remove the splash shield bolts.
• Use a trim clip removal tool or flat-blade screwdriver to remove any plastic clips.
• Set the splash shield and fasteners aside in order.
• Tip: A small tray prevents lost bolts.

Step 4: Locate the Starter Motor

• Use a shop light to look up between the engine and transmission area.
• The starter is a small cylindrical motor bolted to the transmission bellhousing. The bellhousing is the round outer case where the engine and transmission meet.
• Find the large battery cable and the smaller control wire attached to the starter solenoid. The solenoid is the smaller cylinder mounted on the starter that switches power to the motor.

Step 5: Disconnect the Starter Wires

• Use a 12mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to remove the nut holding the large battery cable to the starter.
• Pull the large cable off the starter terminal and move it aside.
• Use your hand or a flat-blade screwdriver to release the locking tab on the small starter signal wire connector.
• Pull the small connector straight off. Do not pull by the wire itself.
• Tip: Take a phone photo first.

Step 6: Remove the Starter Mounting Bolts

• Support the starter with one hand before removing the final bolt. It is heavier than it looks.
• Use a 14mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to remove the starter mounting bolts.
• If access is tight, use the 17mm socket only if your replacement or original fastener size requires it.
• Slide the starter out of the transmission opening and lower it carefully.

Step 7: Compare the Old and New Starter

• Place the old starter next to the new starter on the ground.
• Confirm the mounting ears, electrical terminals, and gear nose are in the same positions.
• Do not install the new starter if the shape or terminals do not match.

Step 8: Install the New Starter

• Lift the new starter into position by hand.
• Start both mounting bolts by hand first to avoid cross-threading. Cross-threading means the bolt is going in crooked and can damage the threads.
• Use a 14mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to snug the mounting bolts.
• Use a torque wrench rated 10-100 ft-lbs and 14mm socket to tighten the starter mounting bolts to Torque to 39-54 Nm (29-40 ft-lbs).

Step 9: Reconnect the Starter Wires

• Push the small starter signal connector onto the solenoid until it clicks.
• Install the large battery cable onto the starter power terminal.
• Use a 12mm socket and torque wrench rated 10-100 ft-lbs to tighten the starter terminal nut to Torque to 8-12 Nm (71-106 in-lbs).
• Do not overtighten the terminal nut. The starter terminal can crack.

Step 10: Reinstall the Lower Engine Splash Shield

• Lift the splash shield into place by hand.
• Use a trim clip removal tool or your fingers to reinstall the plastic clips.
• Use a 10mm socket and 3/8-inch drive ratchet to reinstall the splash shield bolts.
• Snug the bolts only; most splash shield fasteners are small and can strip easily.

Step 11: Lower the Vehicle

• Use a floor jack rated 3-ton minimum to lift the front slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Tucson slowly to the ground.

Step 12: Reconnect the Battery

• Place the negative battery cable back onto the negative battery post.
• Use a 10mm wrench to tighten the negative battery cable clamp until secure.
• Apply battery terminal protector spray to the terminal if desired.

---

✅ After Repair

• Start the engine. It should crank strongly and start normally.
• If you hear one click or no crank, turn the key off and recheck the battery terminals and starter wiring.
• Let the engine idle for a minute and watch for warning lights.
• Reset the clock and radio presets if they were lost after battery disconnect.
• Take a short test drive and restart the engine several times to confirm the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
