🔧 Terrain - Starter Motor Replacement

The starter motor spins the engine so it can start. If it’s failed, you’ll usually get a single click, slow/no crank, or intermittent starting even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring.
• ⚠️ Support the Terrain on jack stands; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool before working underneath (burn risk).
• ⚠️ Keep keys away from the vehicle so it can’t crank unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet (3/8")
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm
• Extension set (3/8")
• Universal joint adapter (3/8")
• Trim clip removal tool
• Flat screwdriver
• Torque wrench (3/8")
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and disconnect the battery negative cable using a 10mm wrench.
• Torque wrench = tool that tightens to an exact value.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the Terrain

• Lift the front using a floor jack (rated 3-ton minimum) at the approved front lift point.
• Set the vehicle down onto jack stands (rated 3-ton minimum) and give it a gentle shake to confirm stability.

Step 2: Remove the lower splash shield (if equipped)

• Remove push-clips with a trim clip removal tool.
• Remove any screws with an 8mm socket or flat screwdriver (varies by shield).
• Set the shield hardware aside in a small tray.

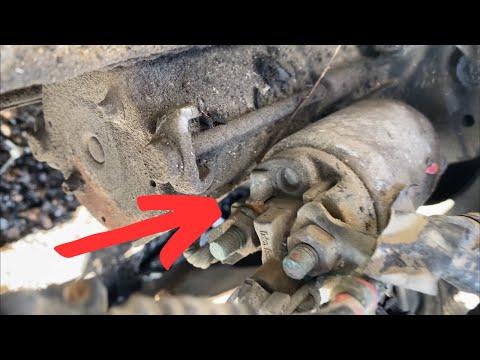

Step 3: Locate the starter

• From underneath, use a work light to find the starter where the engine meets the transmission (it’s a small motor with a cylinder on it).

Step 4: Disconnect the starter electrical connections

• Remove the starter’s small signal wire nut using an 8mm socket (some use 10mm).
• Remove the main battery cable nut using a 13mm socket.
• Pull the cables off gently and tuck them aside so they can’t touch metal.
• Apply a small dab of dielectric grease to the connector area during reassembly.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Remove the two starter bolts using a 15mm socket, ratchet (3/8"), and a 3/8" extension.
• If access is tight, add a universal joint adapter (3/8").

Step 6: Remove the starter from the vehicle

• Work the starter out carefully (you may need to rotate it slightly).
• Compare the old and new starters side-by-side to confirm the same mounting ears and electrical studs.

Step 7: Install the new starter

• Position the new starter in place by hand.
• Start both mounting bolts by hand to avoid cross-threading.
• Tighten with a 15mm socket and ratchet (3/8"), then finish with a torque wrench (3/8").
• Torque to 50 Nm (37 ft-lbs) for starter mounting bolts.
• Hand-start bolts first—threads strip easily.

Step 8: Reconnect the starter wiring

• Install the main battery cable onto the large stud and tighten using a 13mm socket.
• Torque to 13 Nm (115 in-lbs) for the main battery cable nut.
• Install the small signal wire and tighten using an 8mm socket (or 10mm socket if applicable).
• Torque to 5 Nm (44 in-lbs) for the signal terminal nut.
• Make sure the rubber boot covers the main power stud when finished.

Step 9: Reinstall the splash shield

• Reinstall screws with an 8mm socket and push-clips with a trim clip removal tool.

Step 10: Lower the vehicle and reconnect the battery

• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower fully.
• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check that no wires are near the exhaust or rubbing on sharp edges.
• Recheck for any loose tools/fasteners under the vehicle.
• If you get a no-crank after installation, recheck battery connections and the small signal wire seating.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $140-$350 (parts only)

You Save: $310-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: Common 2.4L Terrain starter fastener sizes/torques; minor variations may exist.
