🔧 Altima - Starter Motor Replacement

Your Altima’s starter motor bolts to the transmission bell housing and spins the engine to start it. Replacement involves disconnecting the battery, removing the air intake for access, unbolting the starter, and transferring the wiring to the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short (the starter cable is always “hot”).
• ⚠️ Support the car with jack stands if you go underneath—never rely on a floor jack alone.
• Let the engine cool before working near the exhaust/radiator area.
• Keep tools away from the battery positive terminal and starter main terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (5–80 ft-lb range)
• Flat trim tool
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if not included) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the ignition OFF, and remove the key.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and keep your radio presets in mind (battery will be disconnected).
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then the positive if you need extra room.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake duct (for access)

• Use a flat trim tool to release any intake clips.
• Use a 10mm socket to loosen the hose clamps and remove the intake duct/air snorkel as needed.
• Tip: Take a quick photo before removing hoses.

Step 2: Raise the front (if you need underside access)

• Use a floor jack (rated 2-ton minimum) to lift the front safely.
• Place jack stands (rated 2-ton minimum) under the proper front support points and lower onto the stands.
• Set wheel chocks at the rear wheels.

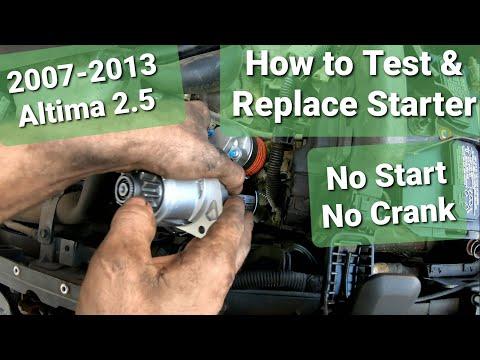

Step 3: Locate the starter motor

• Use a flashlight to find the starter where it meets the transmission bell housing.
• You’ll see a thick battery cable on a stud (main power) and a smaller plug/wire (starter signal).
• Tip: Starter sits where engine meets transmission.

Step 4: Disconnect starter wiring

• If there’s a protective boot on the main terminal, pull it back by hand or with needle-nose pliers.
• Use a 12mm socket to remove the nut holding the main battery cable to the starter stud.
• Disconnect the small starter signal connector by pressing the lock tab (use a flat trim tool gently if stuck).
• Move the wiring aside so it can’t snag during removal.
• Torque on install: Torque to 9.8 Nm (87 in-lb) for the starter main terminal nut.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 3/8" drive ratchet and 3/8" drive extensions to remove the starter mounting bolts.
• Pull the starter straight out from the bell housing.
• Torque on install: Torque to 44 Nm (33 ft-lb) for the starter mounting bolts.

Step 6: Install the new starter

• Compare the old and new starter (same mounting holes, same electrical connections).
• Position the new starter into the bell housing opening by hand.
• Start both mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug them, then use a torque wrench (5–80 ft-lb range) to finish: Torque to 44 Nm (33 ft-lb).

Step 7: Reconnect the wiring

• Plug in the small starter signal connector until it clicks.
• Install the main battery cable onto the starter stud and tighten with a 12mm socket.
• Finish with a torque wrench: Torque to 9.8 Nm (87 in-lb).
• Apply a small amount of dielectric grease and reinstall the protective boot over the terminal.

Step 8: Reinstall the air intake duct

• Reinstall the intake duct/snorkel and any hoses.
• Use a 10mm socket to tighten the clamps securely (snug—do not strip).
• Reinstall clips using the flat trim tool as needed.

Step 9: Reconnect the battery

• Reconnect the positive terminal first (if removed), then the negative terminal.
• Use a 10mm socket to tighten the terminals snugly.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or slow crank.
• Check that no warning lights appear related to low voltage after start (some lights may clear after driving).
• Listen near the starter area for abnormal grinding—if present, shut off and recheck mounting and alignment.
• Recheck the main starter cable nut after a short drive (make sure it’s still secure).

---

💰 DIY vs Shop Cost

Shop Cost: $450–$850 (parts + labor)

DIY Cost: $120–$320 (parts only)

You Save: $330–$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
