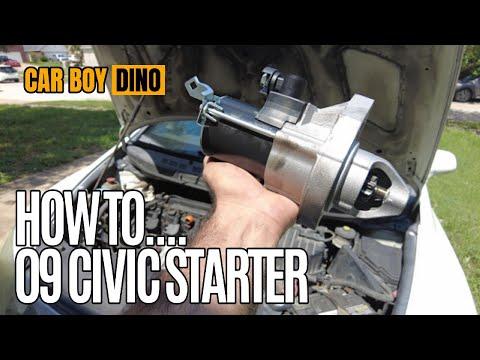

🔧 Civic - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. If it’s weak, clicks, or won’t crank (and the battery is good), replacing the starter is a common fix on your Civic.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the starter wiring (the main cable is always “hot”).
• ⚠️ Support the car with jack stands if you lift it—never rely on a floor jack alone.
• ⚠️ Let the engine cool; the starter sits near hot engine components.
• ⚠️ Keep metal tools away from the battery positive terminal to prevent arcing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• 3/8" drive swivel/universal joint
• Metric combination wrench set (10mm-14mm)
• Flathead screwdriver
• Pliers
• Torque wrench (10-80 ft-lb range)
• Battery terminal puller (optional)
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor (1.8L, manual transmission) - Qty: 1
• Starter electrical terminal nut (if not included) - Qty: 1
• Battery terminal anti-corrosion pads (optional) - Qty: 2

---

📋 Before You Begin

• Park on level ground, turn the ignition OFF, and remove the key.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and plan to disconnect the battery. Take a quick photo of wiring first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal (the “-” terminal) and remove it.
• Move the negative cable aside so it cannot spring back onto the battery post.
• If needed for access, use a 10mm socket to remove the positive terminal cover and disconnect the positive terminal next.

Step 2: Remove the air intake duct/air box (for access)

• Use a flathead screwdriver to loosen the hose clamp(s) on the intake duct.
• Unclip/remove any attached hoses using pliers (squeeze the clamp, slide it back, then twist the hose off).
• Remove the intake duct and, if it blocks access, remove the upper air box using a 10mm socket.
• Don’t force plastic—wiggle gently.

Step 3: (If needed) Remove the battery and battery tray for more room

• Remove the battery hold-down using a 10mm socket.
• Lift the battery out carefully (it’s heavy) and set it aside.
• Remove the battery tray fasteners using a 10mm socket and lift the tray out.

Step 4: Locate the starter and label the wires

• The starter is bolted to the transmission bellhousing area. You’ll see a thick battery cable going to it.
• Use your shop light to clearly see the wiring.
• A quick phone photo helps during reassembly.

Step 5: Disconnect the starter electrical connections

• Remove the small control wire connector (push tab and pull) by hand; if tight, use pliers gently.
• Remove the rubber boot covering the large battery cable terminal.
• Use a 12mm socket (or 12mm wrench) to remove the nut for the large battery cable, then lift the cable off.
• Torque wrench note: a torque wrench is a tool that tightens bolts/nuts to a specific safe tightness.
• When reinstalling later: Torque the large terminal nut to 9.8 N·m (7 ft-lb).

Step 6: Remove the starter mounting bolts

• Use a 14mm socket with a 3/8" drive extension to loosen and remove the starter mounting bolts.
• If a bolt is hard to reach, use the 3/8" drive swivel/universal joint to get a better angle.
• Support the starter with your free hand as the last bolt comes out.
• When reinstalling later: Torque the starter mounting bolts to 44 N·m (32 ft-lb).

Step 7: Remove the starter from the engine bay

• Wiggle the starter free and lift it out from the top.
• Compare the old and new starter side-by-side (mounting ears, connector locations, and gear position).

Step 8: Install the new starter

• Set the new starter into position by hand.
• Start both mounting bolts by hand first (this prevents cross-threading).
• Use a 14mm socket to snug the bolts, then use a torque wrench (10-80 ft-lb range) to finish: Torque to 44 N·m (32 ft-lb).

Step 9: Reconnect the starter wiring

• Install the large battery cable onto the starter terminal.
• Use a 12mm socket to install and snug the nut, then use a torque wrench: Torque to 9.8 N·m (7 ft-lb).
• Reinstall the rubber boot over the terminal.
• Reconnect the small control wire connector until it clicks into place.

Step 10: Reinstall the battery tray, battery, and intake parts

• Reinstall the battery tray using a 10mm socket.
• Set the battery in place and reinstall the hold-down using a 10mm socket.
• Reconnect the battery terminals: positive first, then negative (use a 10mm socket).
• Reinstall the intake duct/air box and tighten clamps using a flathead screwdriver.

---

✅ After Repair

• Turn the key to START: the engine should crank strongly with no clicking.
• Check that the intake duct is fully seated and clamps are tight (no hissing/air leak).
• Verify the starter wiring boot is on and cables are not rubbing or stretched.
• If you removed the battery, reset the clock/radio presets if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
