🔧 Maxima - Starter Motor Replacement

Your starter motor cranks the engine when you push the Start button. Replacing it is mostly a remove-and-reinstall job, but on some V6 layouts it can be tucked under the upper intake, which adds time and parts.

Difficulty Level: Intermediate | Estimated Time: 1.5-4.5 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery terminal first to prevent an electrical short.
• 🔥 Let the engine cool fully; the exhaust and radiator area can burn you.
• 🧯 Keep metal tools away from the battery positive terminal and starter power stud.
• 🧱 If you raise the car, support it with jack stands; never rely on a floor jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 6" extension (3/8")
• 12" extension (3/8")
• Universal joint adapter (3/8")
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Flashlight
• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Dielectric grease - Qty: 1
• Throttle body gasket - Qty: 1 (only if removed)
• Upper intake manifold gasket set - Qty: 1 (only if upper intake is removed)

---

📋 Before You Begin

• Park your Maxima on level ground and set the parking brake.
• Open the hood and make sure the key fob is at least 10 feet away from the car so it can’t wake modules while you work.
• Disconnect the battery negative terminal using a 10mm socket and isolate the cable so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which starter layout you have

• Use a flashlight and look down near where the engine meets the transmission (front side of the engine bay).
• If you can see the starter body and wiring without removing the upper intake, follow Path A.
• If the starter is not visible and appears buried under the upper intake manifold (the top “plenum”), follow Path B.

Step 2 (Path A): Remove intake ducting for access

• Loosen the hose clamps using a flathead screwdriver.
• Remove any clips with a trim clip removal tool.
• Lift the intake duct/air tube out of the way.

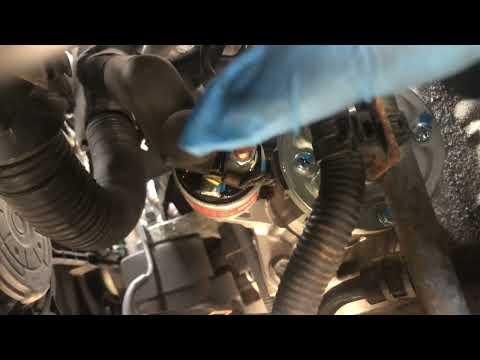

Step 3 (Path A): Disconnect starter wiring

• Unplug the starter solenoid connector by pressing the tab; use needle-nose pliers gently only if needed. Don’t pull on the wires.
• Remove the power cable nut using a 12mm socket (common) or 14mm socket (some variants).
• Move the cable aside so it can’t touch metal.

Step 4 (Path A): Remove the starter mounting bolts

• Remove the starter bolts using a 14mm socket, 3/8" ratchet, and a 6" extension (3/8").
• If access is tight, add a universal joint adapter (3/8").
• Support the starter with one hand as the last bolt comes out.

Step 5 (Path A): Install the new starter

• Position the new starter and hand-thread both mounting bolts to avoid cross-threading.
• Tighten mounting bolts using a 3/8" torque wrench and 14mm socket to Torque to Nissan factory specification.
• Reconnect the power cable and tighten the nut using a 12mm socket or 14mm socket to Torque to Nissan factory specification.
• Apply a thin wipe of dielectric grease to the connector seal (not the metal pin) and reconnect the solenoid connector until it clicks.

Step 6 (Path A): Reinstall intake ducting

• Reinstall the intake duct and clamps using a flathead screwdriver.
• Reinstall clips using a trim clip removal tool.

Step 2 (Path B): Remove the upper intake for access

• Remove the engine cover if equipped (typically pulls up; if clipped, use a trim clip removal tool).
• Remove the intake ducting using a flathead screwdriver and trim clip removal tool.
• Disconnect any vacuum hoses and electrical connectors attached to the upper intake; use a flashlight and take a photo first for routing.
• Remove upper intake fasteners using a 10mm socket / 12mm socket as applicable.
• Lift the upper intake off carefully and set it aside.
• Remove and discard old gaskets; install new upper intake manifold gaskets during reassembly.

Step 3 (Path B): Remove and replace the starter

• Disconnect the solenoid connector and power cable using needle-nose pliers (for the tab) and a 12mm socket / 14mm socket (for the nut).
• Remove the starter mounting bolts using a 14mm socket, 3/8" ratchet, and extensions.
• Install the new starter and tighten fasteners using a 3/8" torque wrench to Torque to Nissan factory specification.

Step 4 (Path B): Reinstall the upper intake

• Install new intake gaskets and set the upper intake back in place.
• Hand-start all bolts, then tighten evenly using a 10mm socket / 12mm socket.
• Final-tighten using a 3/8" torque wrench to Torque to Nissan factory specification.
• Reconnect hoses and electrical connectors (match your photo).
• Reinstall intake ducting using a flathead screwdriver.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket and tighten securely.
• Turn ignition to ON (without starting) and confirm no warning messages.
• Start the engine and listen: it should crank strongly with no grinding noises.
• Check that the intake ducting is fully seated (no hissing/whistling vacuum leak sounds).

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,250 (parts + labor)

DIY Cost: $220-$650 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-4.5 hours.

---
