🔧 Journey - Starter Motor Replacement

The starter motor is what spins the engine when you turn the key. If it’s failing, you may get a click/no-crank, slow cranking, or intermittent starting. This job is mostly access and careful handling of the main battery cable.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: Stock intake/exhaust; starter accessed from underneath.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first; the starter cable is always “hot” otherwise.
• ⚠️ Support the vehicle on jack stands; never rely on a floor jack alone.
• ⚠️ Let the engine cool; you’ll work near hot metal parts.
• ⚠️ Keep the key/fob away from the vehicle while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet (3/8" drive)
• Socket extension set (3" and 6")
• Swivel socket adapter (3/8" drive) (specialty)
• Torque wrench (3/8" drive, 10–100 Nm range)
• Flat trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Dielectric grease - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Use wheel chocks behind the rear tires.
• Open the hood and note radio presets if you care about them.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and position it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jack point.
• Set the vehicle down onto jack stands (rated 3-ton minimum).
• Shake the vehicle gently to confirm it’s stable before going underneath.

Step 2: Remove the lower splash shield (if equipped)

• Use an 8mm socket to remove the small bolts.
• Use a flat trim clip tool to pop any plastic push-clips (a trim clip tool is a flat pry tool made to remove clips without breaking them).
• Set the shield and fasteners aside in a small tray.

Step 3: Locate the starter and label the wires

• Use a shop light to find the starter mounted to the transmission bellhousing (it’s a small motor with a thicker battery cable attached).
• Use needle-nose pliers to release any wire-harness clip retainers near the starter.
• Tip: Take a quick photo before disconnecting anything.

Step 4: Remove the starter electrical connections

• Remove the small signal wire connector: use a flathead screwdriver to gently lift the locking tab if needed, then pull the connector straight off.
• Remove the main battery cable nut: use a 13mm socket to remove the nut from the starter terminal.
• Move the cable aside so it cannot touch metal.
• When reinstalling later: Torque the starter B+ terminal nut to 13 Nm (115 in-lbs).
• Apply a thin film of dielectric grease to the connector seals after reassembly.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket with a ratchet (3/8" drive) and a socket extension set (3" and 6") to remove the mounting bolts.
• If a bolt is at an angle, use a swivel socket adapter (3/8" drive) (this lets the socket bend slightly to reach tight bolts).
• Lower the starter out carefully.

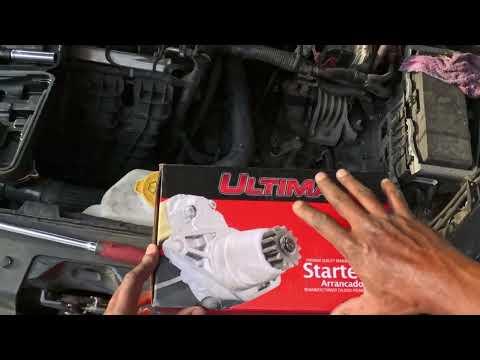

Step 6: Install the new starter

• Compare the new starter to the old one (mounting holes and electrical studs should match).
• Position the new starter and start both mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket and ratchet (3/8" drive) to snug the bolts evenly.
• Use a torque wrench (3/8" drive, 10–100 Nm range) to tighten: Torque starter mounting bolts to 54 Nm (40 ft-lbs).

Step 7: Reconnect the starter wiring

• Install the main battery cable onto the starter terminal and tighten with a 13mm socket.
• Use a torque wrench (3/8" drive, 10–100 Nm range): Torque the starter B+ terminal nut to 13 Nm (115 in-lbs).
• Reconnect the small signal connector by pushing it on until it clicks.
• Reattach any harness clips using needle-nose pliers as needed.

Step 8: Reinstall the splash shield and lower the vehicle

• Reinstall the shield using the flat trim clip tool for push-clips.
• Tighten shield bolts with an 8mm socket.
• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower the vehicle.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Spray the terminal with battery terminal anti-corrosion spray.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding or a “whirring” sound after the engine starts; if you hear it, shut off and recheck starter seating/bolts.
• Check that no wires are touching the exhaust or rubbing on sharp edges.
• Take a short test drive, then recheck under the hood/underbody for any loose fasteners.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
