🔧 RAV4 - Starter Motor Replacement

The starter motor cranks your engine when you turn the key (or press Start). If it’s failed, you may hear a single click, slow cranking, or nothing at all even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short (the starter power wire is always “hot”).
• ⚠️ Let the engine cool before working near the exhaust and radiator fans.
• ⚠️ Support the RAV4 with jack stands on solid, level ground; never rely on a floor jack alone.
• ⚠️ Keep keys away from the vehicle while working to avoid accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10-80 Nm range)
• 6" extension (3/8")
• 12" extension (3/8")
• Universal joint adapter (3/8")
• Flat trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter solenoid terminal nut (if damaged) - Qty: 1
• Battery terminal anti-corrosion pads (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep the key/fob away from the vehicle.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal first, then isolate it so it can’t spring back.
• Raise the front safely: use a floor jack and support with jack stands; add wheel chocks at the rear wheels.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine under cover (splash shield)

• Use a flat trim clip tool and flathead screwdriver to remove plastic clips.
• Use a 10mm socket to remove any 10mm bolts.
• Set the cover and clips aside in a tray. Sort clips by location.

Step 2: Create working room at the top (recommended)

• Remove the air intake tube/air cleaner ducting for access (exact pieces vary).
• Use a flathead screwdriver to loosen hose clamps.
• Use needle-nose pliers to release any spring clamps on small hoses.
• Use a 10mm socket for any air box/duct bolts.
• Take a quick photo before pulling hoses.

Step 3: Locate the starter

• From the front of the engine bay, the starter sits where the engine meets the transmission (bellhousing area).
• You’ll see a thick power cable (battery cable) going to a stud on the starter, plus a smaller plug/wire for the “start signal.”
• Use a work light to clearly see the wiring and the two starter mounting bolts.

Step 4: Disconnect the starter wiring

• Remove the rubber boot covering the main power stud on the starter.
• Use a 12mm socket to remove the nut from the main power cable at the starter B+ stud.
• Pull the cable off and move it aside so it cannot touch metal.
• Disconnect the small starter control connector (press the lock tab and pull). If it’s tight, use a flathead screwdriver gently at the tab.
• Torque to 9 Nm (80 in-lbs) for the starter B+ terminal nut during reassembly.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 3/8" ratchet, plus a 6" extension and universal joint adapter as needed, to remove the two mounting bolts.
• Once both bolts are out, wiggle and lift the starter out.
• Torque to 39 Nm (29 ft-lbs) for the starter mounting bolts during reassembly.

Step 6: Compare the old and new starter

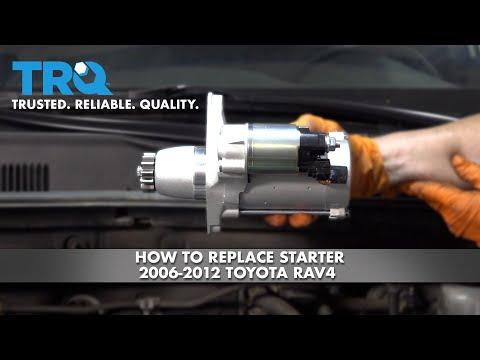

• Make sure the new starter matches the old one: mounting ears, electrical stud location, and connector style.
• Transfer any heat shield/bracket if your starter uses one (use the same sockets removed earlier).

Step 7: Install the new starter

• Position the starter into place by hand.
• Thread both mounting bolts in by hand first to avoid cross-threading.
• Use a 14mm socket and 3/8" torque wrench to tighten: Torque to 39 Nm (29 ft-lbs).

Step 8: Reconnect the starter wiring

• Reconnect the small control connector until it clicks.
• Install the main power cable onto the starter stud.
• Use a 12mm socket and 3/8" torque wrench to tighten: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the stud.

Step 9: Reinstall intake parts and under cover

• Reinstall any intake ducting/air box parts removed earlier using a 10mm socket and flathead screwdriver for clamps.
• Reinstall the splash shield using a 10mm socket and flat trim clip tool.

Step 10: Reconnect the battery

• Use a 10mm socket to reconnect the negative (-) terminal.
• Torque to 5 Nm (44 in-lbs) for the battery terminal clamp nut.

---

✅ After Repair

• Start the engine and verify it cranks strongly and starts normally.
• Listen for abnormal grinding/whirring; if present, shut off and recheck starter mounting and alignment.
• Check that the starter cable boot is fully seated and the cable is routed away from moving/hot parts.
• Recheck for any warning lights and make sure intake hoses are fully clamped (no hissing/vacuum leak).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$450 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
