RAV4 - Starter Motor Replacement 🔧

Replacing the starter on your RAV4 is very doable at home, but you’ll be working near the exhaust and under the vehicle, so we’ll go step by step and keep it safe.

Safety First ⚠️

• 🛑 Disconnect the battery before touching the starter. This prevents sparks and short circuits.
• 🛑 Support the vehicle with jack stands, never only a jack. A jack stand is a solid metal support that holds the car safely.
• 🛑 Let the engine and exhaust cool completely if the RAV4 was just driven.

Tools & Parts You’ll Need 🧰

• 🔧 Tools
  • Floor jack and jack stands (rated for SUV weight).
  • Wheel chocks (blocks behind wheels so the car can’t roll).
  • Socket set:
    • 10 mm socket (battery terminal, covers).
    • 12 mm socket (brackets / shields if equipped).
    • 14 mm and 15 mm sockets (starter mounting bolts, depending on build).
  • Ratchet and short extension (about 3–6").
  • Torque wrench (click-type tool that lets you tighten bolts to a specific force).
  • Flat screwdriver or trim tool (for clips on any plastic covers).
  • Needle-nose pliers (for electrical connector clips if tight).
  • Work light or headlamp.
  • Gloves and safety glasses.
• ⚙️ Parts
  • Starter motor assembly for 2018 RAV4 SE 2.5L AWD.
  • New starter mounting bolts if Toyota specifies one-time-use (many shops reuse, but new is best).
  • Dielectric grease (optional, for electrical connections; helps prevent corrosion).

Key Specs (Typical for Your RAV4) 📏

• 🔩 Starter mounting bolts: approx. 29–34 ft-lb (39–46 N·m).
• 🔩 Battery terminal nut: snug only, about 4–6 ft-lb (do not overtighten).

If your starter bolts came with a spec sheet, follow that torque value.

RAV4 - Starter Location 🧭

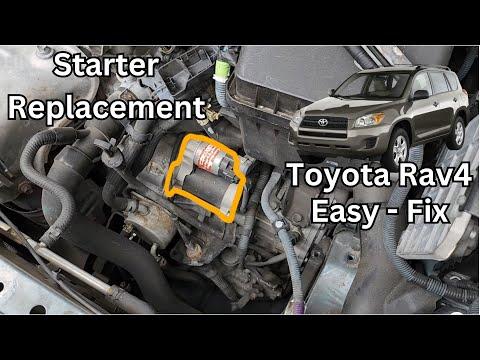

On your RAV4 2.5L, the starter is mounted on the front side of the engine, low down, near the transmission bellhousing. You’ll access it mostly from underneath, slightly toward the driver side.

Step 1 – Prepare the RAV4 🧱

• 🚗 Park on a flat surface, shift to P, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔌 Open the hood and disconnect the negative (-) battery cable:
  • Use a 10 mm socket to loosen the clamp on the negative terminal.
  • Lift the cable off and tuck it aside so it cannot spring back.

Step 2 – Raise and Support the Front 🔼

• 🧰 Place the floor jack under the front center jacking point (front subframe crossmember).
• 🔺 Lift the front high enough to work comfortably underneath.
• 🛠 Place jack stands under the left and right front pinch welds or frame points and lower the vehicle onto them.
• 🧪 Give the car a gentle shake to confirm it’s stable.

Step 3 – Remove Any Under Covers / Shields 🛡️

• 🔎 Look under the engine for a plastic engine under cover (splash shield).
• 🔧 Remove:
  • 10 mm bolts and plastic clips holding the cover.
  • Use a flat screwdriver or trim tool to pop clips out gently.
• 📦 Set the cover and fasteners aside in order so reassembly is easy.

Step 4 – Identify the Starter and Wiring 🔌

• 🔍 Find the starter on the front of the engine where it meets the transmission:
  • Cylindrical body with a smaller cylinder (solenoid) attached.
  • One thick cable from the battery (B+ terminal).
  • One small plug or spade connector (signal wire from ignition switch/ECU).

Step 5 – Disconnect Starter Wiring (Battery Still Disconnected) 🧷

• 🔌 On the starter solenoid:
  • Small connector:
    • Press the plastic tab and pull the connector straight off.
    • If stuck, use needle-nose pliers gently on the plug body, not the wires.
  • Large battery cable:
    • Use a 12 mm or 13 mm socket (varies) to remove the nut on the large stud.
    • Pull the cable eyelet off and move it aside.
• 💡 Remember the order of any washers or insulators on the stud.

Step 6 – Remove Starter Mounting Bolts 🔩

• 🔧 Locate the two main mounting bolts that hold the starter to the transmission bellhousing:
  • Usually 14 mm heads (sometimes 15 mm).
  • One upper, one lower.
• 🛠 Use a ratchet and extension:
  • Loosen the lower bolt first but do not remove it completely.
  • Then loosen and remove the upper bolt.
  • Support the starter with one hand while removing the last bolt so it doesn’t drop.
• 📤 Wiggle the starter out from the bellhousing opening. You may need to rotate it slightly to clear nearby parts.

Step 7 – Compare Old and New Starter 🔁

• 🔎 On the bench, compare:
  • Mounting ear shape and bolt hole positions.
  • Electrical terminal locations and sizes.
  • Overall length and nose shape (gear end).
• 💡 If anything looks different, do not install; confirm part number first.

Step 8 – Install the New Starter 🔧

• 📥 Position the new starter into the bellhousing opening, aligning the nose into the transmission and the mounting ears with the bolt holes.
• 🔩 Install the upper bolt by hand first, turning several threads to avoid cross-threading.
• 🔩 Install the lower bolt by hand.
• 🛠 Snug both bolts with the ratchet, then torque:
  • Use the torque wrench to tighten each to about 29–34 ft-lb (39–46 N·m).

Step 9 – Reconnect Starter Wiring 🔌

• 🔧 On the large stud:
  • Place the large battery cable eyelet back on the stud.
  • Install any washer/insulator in the same order as removed.
  • Install the nut and tighten it snug with a 12–13 mm socket (do not overtighten; you can crack the solenoid cap).
• 🔗 Plug the small connector back in until it clicks.
• 💡 Optional: a tiny bit of dielectric grease on the small connector seal helps keep moisture out.

Step 10 – Reinstall Under Cover and Lower Vehicle 🛡️

• 🧩 Refit the plastic under cover:
  • Align it, then install the 10 mm bolts and clips.
• 🔻 Use the jack to lift the RAV4 slightly, remove the jack stands, and lower the vehicle to the ground.

Step 11 – Reconnect Battery and Test 🔋

• 🔌 Reconnect the negative (-) battery cable:
  • Place it on the terminal and tighten the 10 mm nut until snug. Do not crush the clamp.
• 🚀 Sit in the driver’s seat and turn the key / push start:
  • The engine should crank strongly and start quickly.
  • Listen for any grinding or unusual noises from the starter area.

Tips & Tricks 💡

• 🧽 Clean battery terminals if they are corroded (white/green buildup). Poor connections can mimic a bad starter.
• 🧊 If bolts are stubborn, a short breaker bar (longer handle) gives more leverage than a normal ratchet.
• 📸 Take photos before removing wiring so you can match everything during reassembly.

What’s Next 🧾

If you’d like, I can also walk you through double-checking that the starter was really the problem (battery, cables, and relay checks) so you’re confident in the repair.
