🔧 Wrangler - Starter Motor Replacement

The starter motor is the electric motor that cranks your engine when you turn the key. On your Wrangler, it’s mounted low on the passenger side of the engine where it bolts to the transmission bellhousing.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative cable first to prevent a short or fire.
• 🛑 Support the Jeep with jack stands on the frame; never rely on a floor jack alone.
• 🛑 Let the exhaust cool before working underneath (burn hazard).
• 🛑 Keep the key out of the ignition so nobody cranks it while you’re under it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive universal joint
• Torque wrench (10-100 ft-lbs range)
• 10mm socket
• 13mm socket
• 15mm socket
• Flathead screwdriver
• Trim clip tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Dielectric grease - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and plan to disconnect the battery (negative first).
• If you have a radio with an anti-theft code, make sure you have it (most Wranglers don’t require one).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen and remove the negative battery cable (black) from the battery.
• Move the cable aside so it cannot spring back onto the battery post.

Step 2: Raise and support the Jeep

• Use a floor jack (rated 3-ton minimum) to lift the front end at a safe lift point.
• Place jack stands (rated 3-ton minimum) under the frame rails and gently lower onto the stands.
• Give the Jeep a firm shake to confirm it’s stable before going underneath.

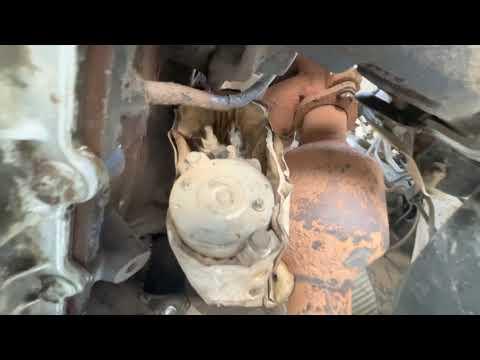

Step 3: Locate the starter motor

• Use a flashlight and look up on the passenger side where the engine meets the transmission.
• The starter is a cylinder-shaped motor with a smaller cylinder (the solenoid) attached.

Step 4: Remove the starter electrical connections

• If there’s a protective rubber boot on the large cable, pull it back using a flathead screwdriver.
• Use a 13mm socket to remove the nut holding the large battery cable to the starter solenoid stud.
• Remove the small trigger wire connector (it may pull straight off; use a flathead screwdriver gently if it’s stuck).
• Take a quick photo before removing wires.

Step 5: Unbolt and remove the starter

• Support the starter with one hand.
• Use a 15mm socket with a 3/8" drive extension set (and 3/8" drive universal joint if needed) to remove the starter mounting bolts.
• Lower the starter out carefully once the bolts are out.

Step 6: Install the new starter

• Compare the new starter to the old one (same mounting holes and same electrical studs).
• Apply a light wipe of anti-seize compound to the starter mounting bolt threads.
• Position the starter and hand-thread the mounting bolts to avoid cross-threading.
• Use a 15mm socket to snug the bolts, then use a torque wrench (10-100 ft-lbs range): Torque to 54 Nm (40 ft-lbs).

Step 7: Reconnect the starter wiring

• Reconnect the small trigger wire connector by hand until it seats fully.
• Install the large battery cable onto the solenoid stud and start the nut by hand.
• Use a 13mm socket and torque wrench: Torque to 9 Nm (80 in-lbs).
• Apply a small amount of dielectric grease to help fight corrosion, then slide the rubber boot back in place if equipped.

Step 8: Lower the Jeep and reconnect the battery

• Use the floor jack to lift slightly, remove the jack stands, and lower the Jeep to the ground.
• Reconnect the negative battery cable using a 10mm socket: Torque to 6 Nm (53 in-lbs).

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding or a “whirring” sound after the engine starts (could indicate alignment or incorrect part).
• Check that all tools are removed from the engine bay and under the Jeep.
• Recheck the starter cable nut for tightness after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $150-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
