🔧 Starter Motor - Replacement

The starter on your Sequoia sits under the upper intake area, so this job requires removing several top-side engine components to reach it. Once access is opened up, the starter itself is straightforward to unbolt and swap.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The starter circuit carries high current.
• The intake area may contain fuel vapors. Work in a well-ventilated area and keep sparks away.
• Let the engine cool completely before touching the intake manifold, throttle body, or nearby hoses.
• Use care around electrical connectors and vacuum lines. Label them as you remove them.
• Assumption: access and fastener locations match the 5.7L 3UR-FE layout used on this Sequoia.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• Torque wrench
• Flat blade trim tool
• Pliers
• Pick tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Air cleaner duct clamp or replacement clips - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Shift to Park and remove the key/fob from the vehicle.
• Disconnect the negative battery terminal with a 10mm socket and isolate the cable so it cannot touch the post.
• Tip: Take photos of hose and connector routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake assembly

• Use a 10mm socket and flat blade trim tool to loosen the air cleaner duct clamps and release any retainers.
• Lift out the intake tube and air duct pieces to open access to the upper engine area.
• Keep all clamps with their hoses.

Step 2: Remove the throttle body

• Use a 10mm socket to remove the throttle body fasteners.
• Disconnect the electrical connector and move the throttle body aside.
• Replace the throttle body gasket during reassembly.
• Torque to 10 Nm (7 ft-lbs) on installation.

Step 3: Remove upper intake manifold components

• Use a 10mm socket, 12mm socket, and 3/8-inch extension set to remove the upper intake manifold fasteners and any brackets in the way.
• Disconnect vacuum hoses, wiring connectors, and any attached breather lines as needed.
• Lift the manifold carefully so you do not tear the gasket surfaces.
• Replace the intake manifold gaskets during reassembly.
• Torque to 20 Nm (15 ft-lbs) on installation.

Step 4: Locate and disconnect the starter

• Find the starter mounted low in the engine valley area.
• Use a 10mm socket to remove the starter electrical terminal nut and disconnect the wiring.
• Remove any harness clips or brackets that block access.
• Do not let the cable touch ground.

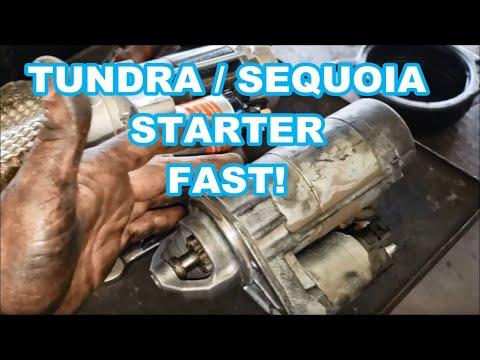

Step 5: Remove the starter motor

• Use a 14mm socket and ratchet with extensions to remove the starter mounting bolts.
• Lift the starter out of the engine valley.
• Compare the old and new starter before installing the replacement.
• Torque to 37 Nm (27 ft-lbs) on installation.

Step 6: Install the new starter

• Position the new starter in place by hand first.
• Use a 14mm socket to install and tighten the starter bolts evenly.
• Reconnect the electrical terminal with a 10mm socket.
• Torque to 9 Nm (80 in-lbs) for the starter terminal nut.

Step 7: Reinstall the intake system

• Install new intake manifold gaskets and set the manifold back in place.
• Use a 10mm socket and 12mm socket to reinstall all manifold fasteners and brackets.
• Reinstall the throttle body with a new gasket.
• Reconnect every hose and connector exactly where it came from.
• Torque to 20 Nm (15 ft-lbs) for the manifold and 10 Nm (7 ft-lbs) for the throttle body.

Step 8: Reinstall the air intake assembly and battery

• Reinstall the intake tube, clamps, and any clips using a 10mm socket and flat blade trim tool.
• Reconnect the negative battery cable with a 10mm socket.
• Double-check every connector before starting.

---

✅ After Repair

• Start the engine and listen for a clean crank with no grinding or clicking.
• Check for intake leaks, vacuum hissing, or a check engine light.
• If idle is rough, recheck all hoses, connectors, and manifold seating.
• Do one more visual inspection for leftover tools or loose fasteners in the engine bay.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $450-$1,150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
