🔧 Accord - Starter Motor Replacement

The starter motor cranks the engine when you turn the key. On your Accord, it’s bolted to the transmission bellhousing and can be reached from the top (after removing a few parts) or from underneath.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the starter wiring (the main cable is always “hot” and can spark).
• ⚠️ Let the engine cool first; the starter sits near hot engine/transmission parts.
• ⚠️ If you go underneath, support the car with jack stands on solid ground—never rely on a floor jack alone.
• ⚠️ Keep metal tools away from the battery positive terminal and the starter B+ terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 3/8" drive swivel (universal joint)
• Torque wrench (10–80 Nm range)
• Flat-blade screwdriver
• Pliers
• Trim clip tool
• Flashlight
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to 1st gear, and set the parking brake.
• 🛑 Put wheel chocks behind the rear tires.
• 🔑 If your radio requires an anti-theft code, have it ready before disconnecting the battery.
• 🔋 Disconnect the battery: use a 10mm socket to remove the negative (–) terminal first, then isolate it so it can’t spring back.
• 🧰 If you’ll work from underneath, raise the front with a floor jack and support with jack stands at the proper front lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make room to access the starter (top-side access)

• Use a flat-blade screwdriver to loosen the air intake hose clamp(s).
• Use pliers to release any spring clamps on small breather hoses, then pull the hose(s) off.
• Remove the intake duct/air snorkel pieces as needed to open up the area near the transmission.
• Take a quick photo before removing hoses.

Step 2: Remove the battery and battery tray (for working space)

• Use a 10mm socket to remove the battery hold-down hardware and lift the battery out carefully.
• Use a 10mm socket (and 12mm socket if equipped) to remove the battery tray bolts, then lift the tray out.
• Use a battery terminal brush to clean any heavy corrosion you see on the terminals/cable ends.

Step 3: Locate the starter and identify the connections

• Use a flashlight to find the starter on the transmission bellhousing (where the engine and transmission meet).
• You’ll see (1) a thick battery cable on the starter’s main terminal and (2) a smaller plug (the start signal connector).
• A swivel (universal joint) is a joint that lets your socket bend to reach bolts at an angle.

Step 4: Disconnect the starter wiring

• Pull off the small start-signal connector by hand; use pliers gently if it’s stuck.
• Remove the rubber boot from the main terminal.
• Use a 12mm socket to remove the nut holding the main battery cable to the starter terminal, then move the cable aside.
• Torque to 9.8 Nm (7.2 ft-lbs) when reinstalling that main-terminal nut.
• Do not over-tighten the stud nut.

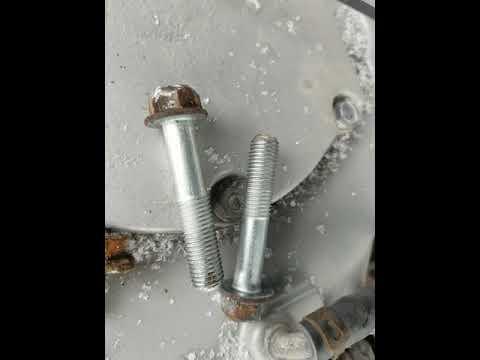

Step 5: Remove the starter mounting bolts

• Use a 14mm socket with a 3/8" drive extension (and swivel (universal joint) if needed) to remove the two starter mounting bolts.
• Support the starter with your free hand as the last bolt comes out.
• Torque to 44 Nm (33 ft-lbs) when reinstalling the starter mounting bolts.

Step 6: Remove the starter from the car

• Wiggle the starter free and lift it out from the top.
• If it won’t clear from the top, go to the underside access steps in Step 7.

Step 7: Optional underside access (if needed)

• Use a trim clip tool to remove the lower splash shield clips (if equipped).
• Use a 10mm socket to remove splash shield bolts (if equipped).
• From underneath, use the 14mm socket, extensions, and swivel (universal joint) to guide the starter out.

Step 8: Install the new starter

• Position the new starter in place by hand and start both mounting bolts by hand first (this prevents cross-threading).
• Use a 14mm socket to tighten the mounting bolts, then torque to 44 Nm (33 ft-lbs) with a torque wrench.
• Reconnect the main battery cable and tighten the nut using a 12mm socket, then torque to 9.8 Nm (7.2 ft-lbs).
• Apply a small amount of dielectric grease inside the rubber boot, then reinstall the boot over the terminal.
• Reconnect the small start-signal connector until it clicks into place.

Step 9: Reinstall battery tray, battery, and intake parts

• Reinstall the battery tray using a 10mm socket (and 12mm socket if equipped).
• Install the battery and hold-down using a 10mm socket.
• Reconnect battery terminals: positive (+) first, then negative (–). Use a 10mm socket.
• Reinstall the intake duct and tighten clamps with a flat-blade screwdriver.
• Apply battery terminal anti-corrosion spray to help prevent future corrosion.

---

✅ After Repair

• 🔑 Start the engine and confirm it cranks strongly and starts normally.
• 🔎 Check that no warning lights appear due to loose battery connections.
• 🧯 Recheck the starter area for any loose wires or tools left behind.
• ⏱️ Reset the clock and enter the radio anti-theft code if required.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
