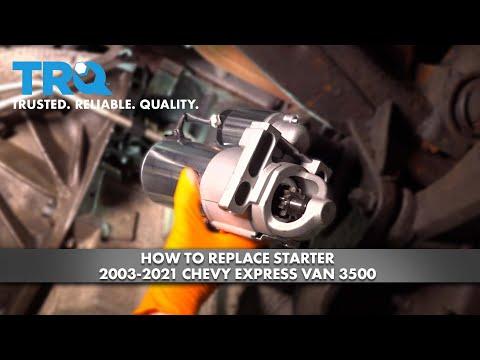

🔧 Savana - Starter Motor Replacement

The starter motor cranks the engine. If it’s failed (clicking, slow/no crank, intermittent crank), replacing it restores reliable starting. On your Savana, the starter is bolted to the lower side of the engine where it meets the transmission bellhousing.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the starter wiring to prevent shorts and burns.
• ⚠️ Support the van with jack stands on the frame; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool fully; the starter sits near hot exhaust parts.
• ⚠️ Keep the key out of the ignition so nobody can crank the engine while you’re under it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• 3/8" drive extension set
• Torque wrench (10-100 ft-lbs)
• Flat trim tool
• Battery terminal puller (specialty)
• Flashlight
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter mounting bolts - Qty: 2 (recommended)
• Starter heat shield (if equipped) - Qty: 1 (only if damaged)
• Battery terminal anti-corrosion pads - Qty: 2 (optional)

---

📋 Before You Begin

• Park on level ground, shift to PARK, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and locate the battery so you can disconnect it.
• Tip: Take a quick photo of the starter wiring before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use an 8mm socket to loosen the negative battery terminal clamp.
• Remove the negative cable and move it aside so it can’t spring back.
• If it’s stuck, use a battery terminal puller (specialty). A terminal puller is a small tool that lifts the clamp off without prying or cracking it.

Step 2: Raise and support the van

• Use a floor jack (rated 3-ton minimum) to lift the front safely at a solid lift point.
• Set it down onto jack stands (rated 3-ton minimum) placed under the frame.
• Give the van a firm push to confirm it’s stable before you crawl under.

Step 3: Locate the starter and label the wires

• Use a flashlight to find the starter at the lower engine/transmission area.
• Use a paint marker to mark which wire goes where on the starter solenoid.
• If there’s a small shield covering the starter, remove it using a 10mm socket (fasteners vary).

Step 4: Disconnect the starter wiring

• Remove the large battery cable nut from the solenoid using a 13mm socket.
• Pull the cable off and tuck it aside so it can’t touch metal.
• Disconnect the small trigger wire (often a push-on connector). Use a flat trim tool to gently pry it off if it’s tight.
• Tip: Don’t pull on the wire—pull the connector.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket, ratchet, and 3/8" drive extension set to remove the two starter mounting bolts.
• Lower the starter out carefully; it’s heavier than it looks.

Step 6: Compare parts and transfer any shield/bracket

• Set the old and new starters side-by-side and confirm the nose length, mounting holes, and electrical studs match.
• If your starter has a heat shield or bracket, move it to the new starter using a 10mm socket (hardware varies).

Step 7: Install the new starter

• Position the new starter in place by hand.
• Start both mounting bolts by hand to avoid cross-threading.
• Tighten the bolts with a 15mm socket and ratchet.
• Final tighten with a torque wrench (10-100 ft-lbs): Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect the starter wiring

• Install the small trigger wire connector back onto its terminal (push until fully seated).
• Install the main battery cable onto the large solenoid stud, then tighten the nut using a 13mm socket.
• Final tighten with a torque wrench if you can fit it: Torque to 10 Nm (89 in-lbs).
• Reinstall any heat shield using a 10mm socket.

Step 9: Lower the van and reconnect the battery

• Use the floor jack to lift slightly, remove the jack stands, and lower the van.
• Reconnect the negative battery terminal and tighten with an 8mm socket.

---

✅ After Repair

• Turn the key to START and confirm the engine cranks strongly and starts normally.
• Listen for abnormal grinding or whirring; if present, shut it off and recheck starter seating and bolts.
• With the engine running, check that the main battery cable at the starter is not touching exhaust or moving parts.
• Check for any warning lights; starter replacement typically does not require programming on your Savana.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
