🔧 Corolla - Starter Motor Replacement

The starter motor cranks your engine when you turn the key. When it fails, you’ll often get a single click, slow cranking, or no crank at all. On your Corolla, the starter sits on the transmission bellhousing under the intake area, and you can usually replace it from the top with basic hand tools.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the starter wiring (prevents short circuits).
• ⚠️ Keep tools off the battery positive terminal and body metal at the same time.
• ⚠️ Work on a cool engine to avoid burns near the exhaust and engine block.
• ⚠️ If you raise the car, support it with jack stands on solid ground (never rely on a jack alone).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive universal joint
• Torque wrench (5–80 ft-lb range)
• Flathead screwdriver
• Pliers
• Trim clip remover
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Dielectric grease - Qty: 1
• Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park (or Neutral for manual), and set the parking brake.
• Install wheel chocks behind the rear wheels.
• Open the hood and plan your lighting; the starter is tucked under the intake area.
• If your radio has an anti-theft code (rare on this model), make sure you have it before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it from the battery.
• Tuck the cable aside so it can’t spring back onto the terminal.

Step 2: Remove the air intake ducting (for access)

• Use a flathead screwdriver to loosen the hose clamps on the intake duct.
• Use pliers to release any spring clamps on small hoses, then slide hoses off carefully.
• Remove the duct/air inlet pieces to open up space near the starter.
• Tip: Take a quick photo for hose routing.

Step 3: Locate the starter and identify the wires

• Look down toward the transmission bellhousing; the starter is the cylinder-shaped motor with a smaller “solenoid” attached.
• There are usually 2 connections: a thick battery cable on a stud, and a small plug-on signal wire.
• A universal joint is a wobble connector that lets your socket bend to reach tight bolts.

Step 4: Disconnect the starter electrical connections

• If equipped with a protective boot, pull it back off the large terminal.
• Use a 12mm socket to remove the nut holding the thick battery cable to the starter terminal.
• Disconnect the small signal connector by pressing the tab and pulling it off (use pliers gently if needed).
• Apply a thin film of dielectric grease to the small connector on reassembly (it helps prevent corrosion).
• Torque to 9.8 Nm (87 in-lb) for the large terminal nut during reassembly.

Step 5: Remove the starter mounting bolts

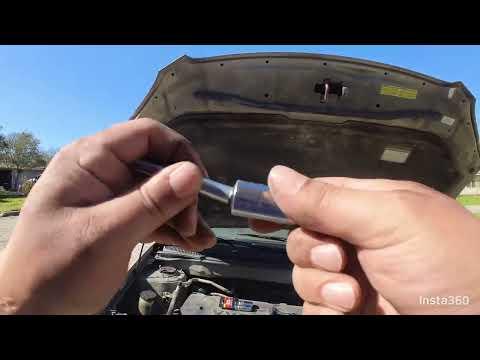

• Use a 14mm socket with a 3/8" drive ratchet and the appropriate extension to remove the 2 starter mounting bolts.
• If the angle is tight, add the 3/8" drive universal joint between the socket and extension.
• Support the starter with your free hand as the last bolt comes out.

Step 6: Remove the starter from the engine bay

• Wiggle the starter free from the bellhousing and lift it out from the top.
• If it won’t clear, check that no hoses/wiring are still clipped in the way and reposition the intake ducting further aside.

Step 7: Install the new starter

• Set the new starter into position, aligning it with the bellhousing.
• Start both mounting bolts by hand (this prevents cross-threading).
• Use a 14mm socket and ratchet to snug the bolts evenly.
• Use a torque wrench with a 14mm socket to tighten the starter bolts: Torque to 39 Nm (29 ft-lb).

Step 8: Reconnect the wiring to the starter

• Push the small signal connector on until it clicks (don’t force it).
• Install the thick battery cable onto the stud and thread the nut on by hand.
• Use a 12mm socket and torque wrench to tighten: Torque to 9.8 Nm (87 in-lb).
• Reposition the protective boot over the large terminal (if equipped).

Step 9: Reinstall the air intake ducting

• Reinstall the intake duct and any resonator/air inlet pieces removed earlier.
• Use a flathead screwdriver to tighten the hose clamps.
• Reconnect any small hoses and clamps using pliers.

Step 10: Reconnect the battery

• Reinstall the negative battery cable and tighten using a 10mm socket.
• Apply battery terminal protector spray to help slow corrosion.

---

✅ After Repair

• Turn the key to Start and confirm the engine cranks strongly and starts normally.
• Listen for abnormal grinding; if heard, shut it off and recheck starter seating and bolt torque.
• Check that the intake duct is sealed and hoses are fully connected (prevents rough idle and check-engine lights).
• Do a quick under-hood check for any tools left behind and any loose wiring near the starter.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
