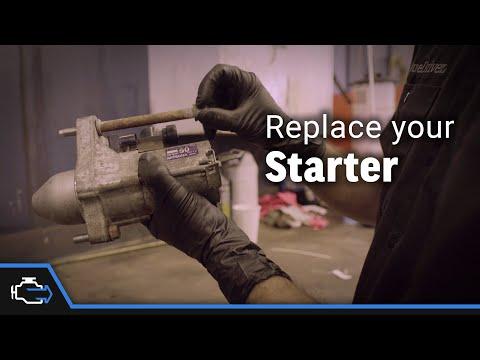

🔧 Civic - Starter Motor Replacement

The starter motor spins the engine so it can fire up. When it fails, you may get a single click, slow cranking, or no crank at all even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wiring to prevent a short and sparks.
• ⚠️ Let the engine cool; the starter sits near hot engine parts.
• ⚠️ Support the car with jack stands if you work from underneath; never rely on a floor jack alone.
• ⚠️ Keep tools off the battery positive circuit; the starter cable is always “hot” if the battery is connected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm combination wrench
• 12mm combination wrench
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• 6" extension (3/8" drive)
• Universal joint adapter (3/8" drive)
• Flathead screwdriver
• Torque wrench (3/8" drive, 10–80 ft-lb range)
• Small pick tool
• Flashlight
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if not included) - Qty: 1
• Intake duct clamp (if yours is damaged) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and install a fender cover to protect paint.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal first, then move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access to the starter

• Use a flathead screwdriver to loosen the intake tube clamps.
• Remove the air intake duct/resonator pieces as needed for working room (you’re making a clear path to the starter on the front side of the engine near the transmission).
• Tip: Take a quick photo before disassembly.

Step 2: Raise the front safely (optional but helpful)

• Lift the front using a floor jack (rated 3-ton minimum) at the front center jack point.
• Set the car down onto jack stands (rated 3-ton minimum).
• Use a flashlight to locate the starter from above and/or below.

Step 3: Remove the starter wiring

• On the starter, remove the small push-on signal connector by hand. If it’s stubborn, use a small pick tool gently to lift the locking tab.
• Use a 12mm socket (or 12mm combination wrench) to remove the nut for the main battery cable on the starter terminal.
• Pull the cable off and move it aside so it cannot touch metal.
• Torque for reassembly (main cable nut): Torque to 9 N·m (80 in-lb)
• A universal joint is a swivel that helps reach angled bolts.

Step 4: Unbolt and remove the starter

• Use a 14mm socket with a 3/8" drive ratchet, 6" extension, and universal joint adapter as needed to remove the two starter mounting bolts.
• Support the starter with your free hand as you remove the last bolt.
• Work the starter out of the bellhousing area and remove it from the engine bay.
• Torque for reassembly (starter mounting bolts): Torque to 44 N·m (33 ft-lb)

Step 5: Install the new starter

• Position the new starter into place by hand and start both mounting bolts by hand first (this prevents cross-threading).
• Use a 14mm socket with a torque wrench (3/8" drive, 10–80 ft-lb range) to tighten the mounting bolts.
• Torque to 44 N·m (33 ft-lb)

Step 6: Reconnect starter wiring

• Install the main battery cable onto the starter terminal and thread the nut on by hand.
• Use a 12mm socket and torque wrench to tighten the nut.
• Torque to 9 N·m (80 in-lb)
• Add a small amount of dielectric grease to the small signal connector, then push it on until it clicks.

Step 7: Reinstall the intake ducting

• Reinstall the air intake duct/resonator pieces.
• Use a flathead screwdriver to tighten the clamps snugly.

Step 8: Reconnect the battery

• Reconnect the negative (-) battery terminal using a 10mm socket.
• Make sure the terminal is fully seated and doesn’t rotate by hand.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or grinding noises.
• Check that the intake tube is fully seated (no air leaks or loose clamps).
• If the starter still won’t crank: recheck the small signal connector and the main cable nut for tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
