🔧 Accord - Starter Motor Replacement

Your Accord’s starter motor is the electric motor that spins the engine so it can start. When it’s worn out, you’ll usually get a single click, slow cranking, or intermittent no-crank even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent an electrical short.
• ⚠️ Let the engine cool; the starter sits near hot engine parts.
• ⚠️ If you work from underneath, support the car on jack stands—never rely on a floor jack.
• ⚠️ Keep tools away from the starter’s main power stud; it’s direct battery power.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 8mm deep socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive wobble extension
• Torque wrench (10-100 ft-lbs range)
• Flathead screwdriver
• Needle-nose pliers
• Trim clip tool
• Flashlight
• Small wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter solenoid terminal nut kit (if included/needed) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Disconnect the battery using a 10mm socket: remove the negative (–) cable first, then move it aside so it can’t spring back.
• Take a photo of wiring before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake duct/air box for access (top access)

• Open the hood and locate the air intake tube and air box on the driver side.
• Use a flathead screwdriver to loosen the hose clamps on the intake tube.
• Unplug the intake air temperature sensor connector (if equipped) by pressing the tab and pulling it off.
• Remove any clips with a trim clip tool, then lift out the intake tube/air box as needed for working room.

Step 2: (Optional) Raise the front for bottom access

• If you prefer more room, lift the front with a floor jack (rated 2-ton minimum) at the front center jacking point.
• Set the car down on jack stands (rated 2-ton minimum) at the front pinch welds.
• Confirm stability with a gentle shake before going underneath.

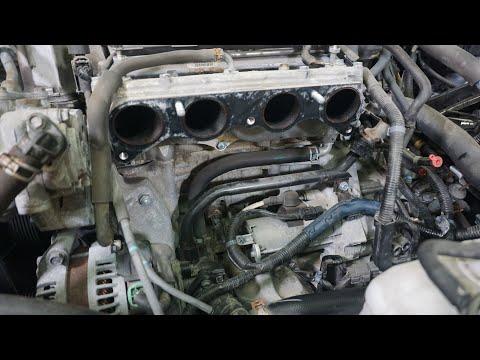

Step 3: Locate the starter

• Use a flashlight to find the starter where the engine meets the transmission (bellhousing area), below the intake manifold.
• You’ll see a cylindrical motor with a smaller solenoid on top and a thick battery cable attached.

Step 4: Disconnect the starter electrical connections

• Remove the rubber boot covering the large power terminal using needle-nose pliers (gently pull it back).
• Use a 12mm socket to remove the nut on the large battery cable (B+), then lift the cable off and position it away from metal.
• Disconnect the small solenoid trigger wire:
  • If it’s a nut-style terminal, use an 8mm deep socket to remove the nut and pull the ring terminal off.
  • If it’s a clip-style connector, press the tab and pull it off by hand.
• Don’t pull on the wire—pull the connector.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 3/8" drive ratchet and a 6" or 12" extension (and a wobble extension if needed) to remove the two starter mounting bolts.
• Once both bolts are out, pull the starter straight out from the transmission housing.

Step 6: Transfer parts (only if needed)

• Compare the old and new starter (nose length, mounting ears, electrical studs).
• If your replacement starter did not include heat shielding or brackets, move them over using the same sockets you removed them with.

Step 7: Install the new starter

• Place the starter into position and start both mounting bolts by hand to avoid cross-threading.
• Tighten using a 14mm socket, then finish with a torque wrench: Torque to 44 N·m (32 ft-lbs).

Step 8: Reconnect the starter wiring

• Clean the cable ends lightly with a small wire brush if they’re oxidized.
• Install the small solenoid wire:
  • Nut-style: install and tighten with an 8mm deep socket to Torque to 3.4 N·m (30 in-lbs), then add a light smear of dielectric grease to the outside of the connection.
• Install the large battery cable (B+) and tighten with a 12mm socket to Torque to 9.8 N·m (7 ft-lbs).
• Reinstall the rubber boot over the B+ terminal.

Step 9: Reinstall the intake parts

• Reinstall the intake tube/air box and any clips you removed.
• Tighten hose clamps using a flathead screwdriver.
• Reconnect any unplugged sensor connectors until they click.

Step 10: Reconnect the battery

• Reconnect the positive cable first (if removed), then reconnect the negative cable using a 10mm socket.

---

✅ After Repair

• Start your Accord and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding or whining—if heard, shut it off and re-check starter seating and bolts.
• Verify the intake tube is fully seated (no hissing/whistling air leak).
• If you raised the car, remove jack stands and lower it safely using the floor jack.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
