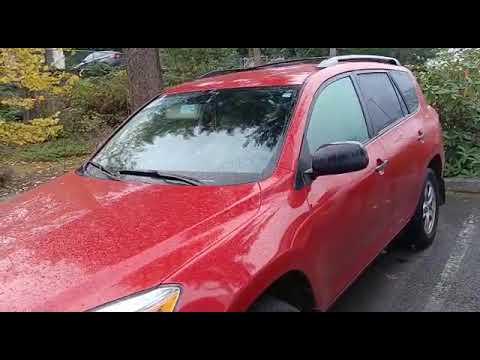

🔧 RAV4 - Starter Motor Replacement

The starter motor cranks your engine when you turn the key to START. If it’s failing, you may get a click/no-crank, slow cranking, or intermittent starting. This job is mostly access + removing two mounting bolts and the electrical connections.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short.
• ⚠️ Keep keys out of the ignition while working.
• ⚠️ If raising the vehicle, support it on jack stands on solid level ground.
• ⚠️ Don’t allow the starter power cable to touch metal parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 3/8" extension set (3" and 6")
• 3/8" universal joint (swivel)
• 10mm wrench
• Needle-nose pliers
• Trim clip removal tool
• Flathead screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut (if damaged) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Install wheel chocks behind the rear wheels.
• Open the hood and have a work light ready.
• Plan to disconnect the battery: use a 10mm wrench on the negative terminal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative (–) battery terminal clamp.
• Lift the cable off and tuck it aside so it can’t spring back to the post.
• Battery off first prevents accidental short circuits.

Step 2: Create access to the starter area (upper access)

• Use a flathead screwdriver to loosen the intake hose clamp(s).
• Use a trim clip removal tool to pop any plastic clips holding the air inlet duct/cover.
• Use a 10mm socket and 3/8" ratchet to remove air cleaner housing bolts (if equipped), then move the intake duct/air box out of the way.

Step 3: Raise and support the front (if you need lower access)

• Use a floor jack to lift the front at a safe jacking point.
• Place jack stands under solid support points and lower the vehicle onto them.

Step 4: Remove any lower splash shield (if equipped)

• Use a trim clip removal tool for plastic clips.
• Use a 10mm socket and 3/8" ratchet for bolts.

Step 5: Disconnect the starter wiring

• Locate the starter on the transaxle bellhousing area.
• Unclip the small control-wire connector: use needle-nose pliers only if your fingers can’t press the lock tab.
• Remove the rubber boot over the main power terminal.
• Use a 12mm socket and 3/8" ratchet to remove the nut holding the main battery cable to the starter.
• Move the cable aside so it can’t touch metal.
• A “universal joint (swivel)” helps reach tight angles.

Step 6: Remove the starter mounting bolts

• Use a 14mm socket, 3/8" ratchet, and 3/8" extensions (and universal joint (swivel) if needed) to remove the two starter mounting bolts.
• Support the starter with one hand as the last bolt comes out.

Step 7: Remove the starter from the vehicle

• Wiggle the starter free from the bellhousing.
• Guide it out through the best path (top or bottom) using your work light to avoid snagging wires.

Step 8: Install the new starter

• Position the new starter in place by hand (no tools yet).
• Start both mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and 3/8" ratchet to snug them down evenly.
• Use a 3/8" torque wrench and 14mm socket: Torque to 39 Nm (29 ft-lbs).

Step 9: Reconnect the starter wiring

• Install the main battery cable onto the starter terminal.
• Use a 12mm socket and 3/8" torque wrench: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the terminal.
• Plug in the small control-wire connector until it clicks.
• If using it, apply a tiny amount of dielectric grease by hand to the connector seal only.

Step 10: Reinstall intake parts and/or splash shield

• Reinstall the splash shield using a 10mm socket, 3/8" ratchet, and trim clip removal tool for clips.
• Lower the vehicle safely using the floor jack and remove the jack stands.
• Reinstall the air box/ducting using a 10mm socket and tighten clamps with a flathead screwdriver.

Step 11: Reconnect the battery

• Install the negative battery cable on the terminal.
• Use a 10mm wrench to tighten the clamp snug (do not overtighten).

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking.
• Check that no warning lights appear and that the engine bay intake ducting is fully seated (no hissing/air leaks).
• Recheck the starter power cable boot is covering the terminal completely.
• Take a short drive, then do a quick recheck for any loose clamps or rattles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
