🔧 Tacoma - Starter Motor Replacement

Your starter motor cranks the engine when you turn the key. If it’s failing, you may get a single click, slow cranking, or no crank even with a good battery. On your Tacoma, the starter is mounted to the transmission bellhousing and is usually reachable from underneath.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before touching starter wiring.
• 🛑 Support the truck with jack stands on the frame; never rely on a jack alone.
• 🛑 Let the exhaust cool before working underneath.
• 🛑 Keep tools off the starter main terminal to avoid shorting to ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" to 12")
• 3/8" drive wobble extension
• Torque wrench (10-80 ft-lbs range)
• Flat trim tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter solenoid terminal nut kit - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in Neutral, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Disconnect the battery: use a 10mm socket to remove the negative (−) battery terminal and tuck it aside so it can’t spring back.
• Raise the front with a floor jack and support with jack stands under the frame rails.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get access to the starter

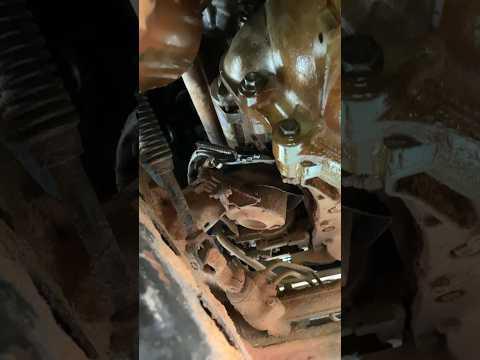

• Slide under the passenger side with a flashlight and locate the starter where it meets the transmission bellhousing.
• If a splash shield/skid plate blocks access, remove its fasteners using a 12mm socket or 14mm socket (varies by shield), then set it aside.

Step 2: Disconnect the starter wiring

• Pull back the rubber boot on the large starter terminal (B+).
• Use a 12mm socket to remove the nut holding the main battery cable to the starter, then lift the cable off and move it away.
• Unplug the small solenoid signal connector (S-terminal) by pressing the tab; use a flat trim tool gently if it’s stuck.
• Tip: Take a quick photo before removal.

Step 3: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 14mm socket with a 3/8" drive ratchet and a 3/8" drive extension to remove the two starter mounting bolts.
• If the angle is tight, use a 3/8" drive wobble extension (a slightly-flexible extension that helps reach bolts at an angle).

Step 4: Remove the starter from the truck

• Wiggle the starter straight back to unseat it from the bellhousing, then lower it out.
• Compare the old and new starters (mounting ears, electrical studs, and overall length) before installing.

Step 5: Install the new starter

• Position the new starter into the bellhousing opening and hand-thread both mounting bolts.
• Tighten with a 14mm socket, then final tighten with a torque wrench: Torque to 39 N·m (29 ft-lbs).

Step 6: Reconnect the wiring

• Plug in the small solenoid connector until it clicks.
• Install the main battery cable on the large terminal, then tighten the nut using a 12mm socket: Torque to 13 N·m (115 in-lbs).
• Add a small amount of dielectric grease to the connector seal area (not on the metal contact faces), then reinstall the rubber boot.

Step 7: Reinstall shields and lower the truck

• Reinstall any shield/skid plate using a 12mm socket or 14mm socket and snug the fasteners evenly.
• Raise slightly with the floor jack, remove the jack stands, and lower the truck.

Step 8: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket: Torque to 5 N·m (44 in-lbs).

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for grinding or a “whirring” sound after startup (could indicate the starter isn’t seating correctly).
• Recheck the starter main cable nut for tightness if you notice intermittent no-crank.
• Check that no wires are touching the exhaust or steering components.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹6,000-₹16,000 (parts only)

You Save: ₹6,000-₹9,000 by doing it yourself!

Shop labor rates vary but typically run 1-2 hours for this job.

---
