🔧 Tacoma - Starter Motor Replacement

On your Tacoma (4.0L), the starter sits in the “V” of the engine under the intake manifold. Replacing it means disconnecting the battery, removing the intake manifold for access, swapping the starter, then reinstalling everything with new gaskets so you don’t create a vacuum leak.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent an electrical short.
• ⚠️ Work on a cold engine; the intake area can burn you if hot.
• ⚠️ Keep dirt out of the intake ports; cover openings immediately after the manifold comes off.
• ⚠️ Do not pry on plastic connectors; release locks to avoid breaking them.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs)
• 6" socket extension
• 12" socket extension
• Universal joint adapter
• Phillips screwdriver
• Flathead screwdriver
• Needle-nose pliers
• Trim clip removal tool
• Pick tool set
• Magnetic pickup tool
• Shop towels
• Masking tape and marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1
• Brake cleaner or throttle-body safe cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any engine cover using a 10mm socket (if equipped).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Label hoses and connectors with masking tape and marker so everything goes back to the right spot.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake tube

• Use a flathead screwdriver or 10mm socket to loosen the hose clamps at the throttle body and air box.
• Unplug the mass air flow sensor connector (press the lock tab; don’t yank the wires).
• Remove the intake tube and set it aside on a clean surface.

Step 2: Disconnect intake manifold attached hoses and connectors

• Use needle-nose pliers to slide spring clamps back, then remove vacuum/PCV hoses.
• Unplug electrical connectors you can reach around the throttle body and manifold.
• Use a trim clip removal tool to release any harness clips attached to the manifold.
• Tip: Take a quick photo before unplugging.

Step 3: Remove the throttle body

• Unplug the throttle body connector.
• Remove the throttle body mounting bolts using a 10mm socket and 6" extension.
• Lift the throttle body off and remove the old gasket.
• During reassembly: Torque to 10 N·m (89 in-lbs).
• Tip: Cover the opening with a clean towel.

Step 4: Remove the intake manifold (upper)

• Remove the manifold bolts/nuts using a 12mm socket with extensions and a universal joint adapter as needed.
• Lift the manifold straight up. If it sticks, gently wiggle—do not pry on sealing surfaces.
• Immediately stuff clean shop towels into the intake ports to keep hardware out of the engine.
• During reassembly: Torque intake manifold bolts/nuts to 21 N·m (15 ft-lbs).

Step 5: Access the starter and disconnect its wiring

• Locate the starter in the engine valley.
• Remove the small starter solenoid signal wire connector by releasing the tab (use a pick tool set if needed).
• Remove the main battery cable nut on the starter using a 12mm socket, then pull the cable off.
• Apply a tiny amount of dielectric grease to the connector seal during reassembly.

Step 6: Remove the starter

• Remove the starter mounting bolts using a 14mm socket, ratchet, and extensions.
• Lift the starter out carefully; use a magnetic pickup tool if a bolt tries to fall into the valley.
• During reassembly: Torque starter mounting bolts to 39 N·m (29 ft-lbs).

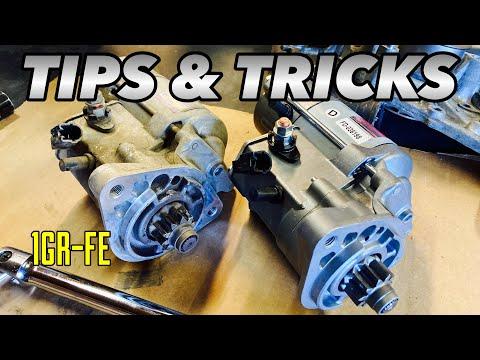

Step 7: Install the new starter

• Set the new starter into place by hand first (don’t force it).
• Start both mounting bolts by hand to prevent cross-threading, then tighten with a 14mm socket.
• Use a torque wrench: Torque to 39 N·m (29 ft-lbs).
• Torque wrench definition: a tool that tightens bolts to an exact setting so you don’t strip threads.

Step 8: Reconnect starter wiring

• Install the main starter cable and tighten the nut using a 12mm socket (snug, not over-tight).
• Reconnect the small solenoid signal connector until it clicks.
• Make sure the cable boot/cover is seated so it can’t short.

Step 9: Reinstall intake manifold with new gaskets

• Remove the shop towels from the intake ports.
• Install new intake manifold gaskets.
• Set the manifold in place and hand-start all bolts/nuts using a 12mm socket.
• Tighten evenly in a crisscross pattern, then use a torque wrench: Torque to 21 N·m (15 ft-lbs).

Step 10: Reinstall throttle body and intake tube

• Install a new throttle body gasket, mount the throttle body, and tighten using a 10mm socket.
• Use a torque wrench: Torque to 10 N·m (89 in-lbs).
• Reconnect the throttle body connector.
• Reinstall the air intake tube and tighten clamps using a 10mm socket or flathead screwdriver.
• Reconnect the mass air flow sensor connector.

Step 11: Reconnect battery

• Reconnect the negative battery terminal using a 10mm socket.
• Make sure the terminal is tight and cannot rotate by hand.

---

✅ After Repair

• Turn the key to ON for a few seconds, then start the engine. It may crank slightly longer on the first start.
• Let it idle and listen for air leaks (hissing). If idle is rough, recheck intake hoses and manifold connections.
• Verify there are no warning lights. If a check engine light appears, recheck unplugged connectors at the throttle body and MAF.
• Do a short test drive, then recheck for loose clamps and any fuel/vacuum smell.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
