🔧 Grand Cherokee - Starter Motor Replacement

The starter motor cranks (spins) the engine when you turn the key. If it’s failed, you may get a single click, slow cranking, or no crank at all. On your Grand Cherokee, the starter is mounted to the transmission bellhousing and is accessible from underneath.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short (the starter cable is always “hot”).
• ⚠️ Support the SUV with jack stands on solid ground—never rely on a jack alone.
• ⚠️ Let the exhaust cool before working near it.
• ⚠️ Keep keys out of the ignition while your hands are near the starter.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive swivel adapter
• Torque wrench (10–100 ft-lbs range)
• 10mm socket
• 13mm socket
• 15mm socket
• Flat trim tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor (4.7L) - Qty: 1
• Starter electrical terminal nut kit (if your new starter doesn’t include it) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the steering wheel straight, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and disconnect the battery: use a 10mm socket to remove the negative (–) battery terminal, then move it aside so it can’t spring back. Negative off first, on last.
• Raise the front of the SUV with a floor jack and support it securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• From under the front, use a flat trim tool to pop out plastic push-pins (if present).
• Use a 10mm socket to remove any shield bolts, then set the shield aside.

Step 2: Locate the starter

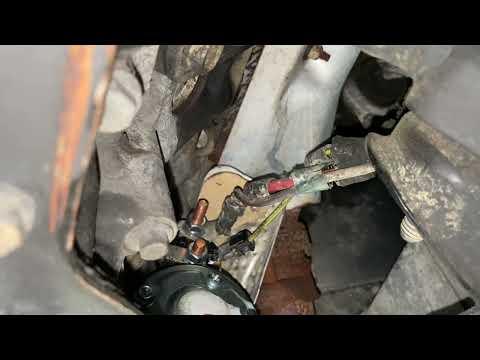

• Use a work light and look up along the transmission bellhousing area. The starter is the cylindrical motor with a smaller “solenoid” attached and a thick power cable on it.

Step 3: Disconnect the starter wiring

• Unplug the small control connector (solenoid trigger): press the tab and pull it straight off by hand.
• Use a 13mm socket to remove the nut holding the main battery cable (B+ cable) to the starter terminal.
• Move the cable aside so it cannot touch metal. Apply a thin wipe of dielectric grease to the connector seal if desired.
• When reinstalling, Torque the starter B+ terminal nut to 13 Nm (115 in-lbs).

Step 4: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket with a 3/8" drive ratchet and extensions (and a swivel adapter if needed) to remove the starter mounting bolts.
• Lower the starter out carefully once the last bolt is removed.

Step 5: Install the new starter

• Compare the old and new starter (same mounting ears, same electrical studs, same connector).
• Position the new starter into place and start the mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket to tighten the mounting bolts evenly.
• Torque the starter mounting bolts to 54 Nm (40 ft-lbs).

Step 6: Reconnect the starter wiring

• Install the main battery cable onto the starter stud and tighten using a 13mm socket.
• Torque the starter B+ terminal nut to 13 Nm (115 in-lbs).
• Plug the solenoid trigger connector back in until it clicks.

Step 7: Reinstall the splash shield and lower the SUV

• Reinstall the splash shield using a 10mm socket and the push-pins (use a flat trim tool to seat them).
• Raise slightly with the floor jack, remove the jack stands, then lower to the ground.

Step 8: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque the battery terminal clamp bolt to 11 Nm (97 in-lbs).

---

✅ After Repair

• Turn the key to START: the engine should crank strongly and start normally.
• Listen for abnormal grinding or a “whirring” sound after start (could indicate a starter not seated squarely).
• Check under the SUV for any loose wiring near the starter and ensure the cable is not touching the exhaust.
• If you had a no-crank issue before: confirm battery connections are clean and tight.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
