🔧 Starter Motor - Replacement

If your Tahoe won’t crank (or cranks slowly) and the battery/cables check out, the starter motor is a common fix. You’ll be working underneath the truck, disconnecting the battery, removing the wiring from the starter, then unbolting and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent arcing/shorts.
• ⚠️ Support the Tahoe with jack stands on a level surface; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool before working near it.
• ⚠️ Keep the key out of the ignition while your hands are near the starter wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet (3/8")
• Ratchet (1/2")
• Socket set (metric 8mm-15mm)
• 13mm socket
• 15mm socket
• Extension set (3/8")
• Swivel adapter (3/8")
• Torque wrench (3/8")
• Flathead screwdriver
• Trim clip remover
• Wire brush
• Dielectric grease
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Battery terminal cleaning pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and locate the battery.
• Have a torque wrench ready (it’s a tool that tightens bolts to an exact spec).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and ratchet (3/8") to loosen the negative battery cable clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back to the terminal.

Step 2: Raise and support the Tahoe

• Use a floor jack (rated 3-ton minimum) to lift the front of the Tahoe at the proper front jacking point.
• Set it down onto jack stands (rated 3-ton minimum) and confirm it’s stable before going underneath.

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip remover and flathead screwdriver to remove any clips.
• Use a socket set (metric 8mm-15mm) and ratchet (3/8") to remove any small bolts.
• Set the shield and hardware aside.

Step 4: Locate the starter and label the wires

• The starter is mounted low on the passenger side of the engine, at the transmission bellhousing.
• Use a shop light to clearly see the wiring on the starter solenoid.
• Take a quick photo before disconnecting.

Step 5: Disconnect the starter wiring

• Use a 13mm socket and ratchet (3/8") to remove the nut for the main battery cable on the large solenoid stud.
• Use a flathead screwdriver to gently release the small control wire connector (do not pull on the wire itself).
• Clean the cable eyelet with a wire brush if it’s dirty or corroded.

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket, ratchet (1/2"), and extension set (3/8") (plus swivel adapter (3/8") if needed) to remove the two starter mounting bolts.
• Lower the starter out carefully; it’s heavier than it looks.

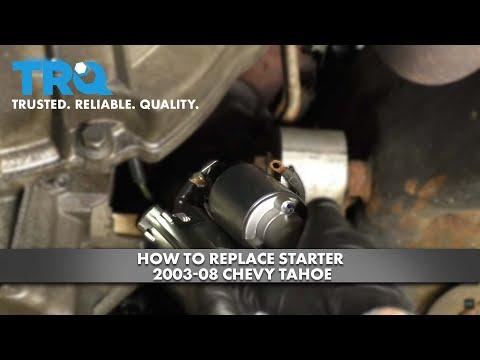

Step 7: Install the new starter

• Position the new starter up to the mounting pad by hand.
• Start both mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket and ratchet (1/2") to snug the bolts evenly.
• Use a torque wrench (3/8") to finish tightening: Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect the starter wiring

• Reconnect the small control wire until it clicks/locks in place.
• Install the main battery cable onto the large stud and start the nut by hand.
• Use a 13mm socket and torque wrench (3/8"): Torque to 12 Nm (106 in-lbs).
• Apply a light coat of dielectric grease to help resist moisture/corrosion.

Step 9: Reinstall the splash shield (if removed)

• Reinstall the shield using the socket set (metric 8mm-15mm), ratchet (3/8"), and the original clips with the trim clip remover.
• Snug fasteners securely (do not over-tighten small shield hardware).

Step 10: Lower the Tahoe and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower to the ground.
• Use a 10mm socket and ratchet (3/8") to reconnect the negative battery cable.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Listen for abnormal grinding; if present, shut off and recheck starter seating and bolt tightness.
• Check that the starter cable is tight and routed away from exhaust/rotating parts.
• If you had “no crank” before, verify battery terminals are clean and tight.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
