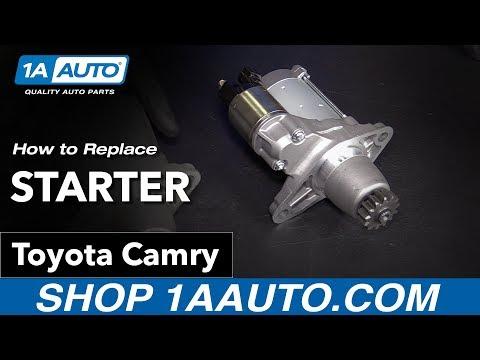

🔧 Camry - Starter Motor Replacement

The starter motor spins the engine fast enough for it to start. When it fails, you may get a single click, slow cranking, or no cranking even with a good battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short.
• ⚠️ Support the car with jack stands; never rely on a jack alone.
• ⚠️ Keep tools away from the starter power terminal; it is battery-hot if connected.
• ⚠️ Let the engine cool before working near the exhaust and radiator area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 12")
• 3/8" drive swivel socket adapter
• Torque wrench (10-80 ft-lb range)
• 10mm combination wrench
• Needle-nose pliers
• Flat-blade screwdriver
• Trim clip remover
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Mechanic gloves
• Safety glasses
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Starter electrical terminal nut (optional) - Qty: 1
• Intake duct clamp (optional, if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and keep your 10mm socket ready for the battery terminal.
• If you raise the front, lift at the proper front jack point and set the car on jack stands before going underneath.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and tuck it aside so it can’t spring back.

Step 2: Remove the intake air duct/air box as needed for access

• Use a flat-blade screwdriver (or 10mm socket, depending on clamp style) to loosen the hose clamp at the throttle body.
• Unclip/unbolt the air cleaner duct/box fasteners using a 10mm socket.
• Remove the ducting to open up space to reach the starter. Take a photo before unplugging anything.

Step 3: Raise the front (if you need under-car access)

• Place wheel chocks, then lift the front with a floor jack (rated 3-ton minimum).
• Set the car securely on jack stands (rated 3-ton minimum).
• If equipped with a lower engine cover, remove it using a 10mm socket and a trim clip remover.

Step 4: Locate the starter and remove the electrical connections

• The starter is mounted to the transmission bellhousing where the engine meets the transmission.
• Remove the small starter signal connector (push-tab plug) using needle-nose pliers gently if it’s tight.
• Remove the rubber boot covering the main power cable terminal.
• Use a 12mm socket (or 12mm combination wrench) to remove the nut on the main starter power cable, then pull the cable off the stud.
• Torque on install: Torque to 9 Nm (80 in-lbs) for the main terminal nut.

Step 5: Remove the starter mounting bolts

• Support the starter with one hand so it doesn’t drop when the bolts come out.
• Use a 14mm socket with a 3/8" drive ratchet and extension set to remove the two starter mounting bolts.
• If the angle is awkward, use the 3/8" drive swivel socket adapter to prevent rounding the bolt head.
• Torque on install: Torque to 39 Nm (29 ft-lbs) for the starter mounting bolts.

Step 6: Remove the starter

• Work the starter out of the bellhousing area.
• If it’s stuck, wiggle it by hand—avoid prying on aluminum surfaces with force.

Step 7: Install the new starter

• Compare the new starter to the old one (mounting ears, electrical studs, connector style) before installing.
• Position the starter in place and hand-start both mounting bolts to avoid cross-threading.
• Tighten with a 14mm socket, then use a torque wrench: Torque to 39 Nm (29 ft-lbs).

Step 8: Reconnect the starter wiring

• Install the main power cable onto the starter stud and thread the nut by hand first.
• Tighten the nut with a 12mm socket and finish with a torque wrench: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the terminal.
• Reconnect the small signal connector until it clicks.
• Loose terminals cause “click-no-start”.

Step 9: Reinstall intake parts and lower covers

• Reinstall the intake duct/air box using a 10mm socket.
• Tighten the throttle-body hose clamp using a flat-blade screwdriver (or 10mm socket).
• If removed, reinstall the lower engine cover with a 10mm socket and trim clip remover.

Step 10: Reconnect the battery and test

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and verify it cranks strongly and starts normally.

---

✅ After Repair

• Start the engine 3-5 times to confirm consistent cranking.
• Check that no warning lights came on from unplugged intake sensors.
• Listen for any abnormal grinding; if heard, shut off and recheck starter seating/bolts.
• Recheck the main starter terminal for tightness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
