🔧 Starter Motor - Replacement

The starter motor is the electric motor that spins your A4’s engine to start it. On your F-150, it’s mounted to the transmission bellhousing and has a large battery cable plus a small control wire.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching starter wiring (prevents short circuits and burns).
• ⚠️ Support the truck with jack stands on the frame; never rely on a floor jack alone.
• ⚠️ Let the exhaust cool before working underneath (burn hazard near the starter area).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet (3/8")
• Socket set (metric)
• 8mm socket
• 10mm socket
• 13mm socket
• Extension set (3/8")
• Wobble extension (3/8")
• Torque wrench (10-100 ft-lbs)
• Flat trim tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Dielectric grease - Qty: 1
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and disconnect the battery negative cable using a 10mm socket.
• Wobble extension = angled extension for tight bolts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the truck

• Lift the front using a floor jack (rated 3-ton minimum) at the approved front lifting point.
• Place jack stands (rated 3-ton minimum) under the frame rails and lower the truck onto them.
• Give the truck a firm push to confirm it’s stable before going underneath.

Step 2: Remove the lower shield/skid plate (if equipped)

• Use a flat trim tool to pop out any plastic push-pins.
• Remove any retaining bolts using a 13mm socket, then set the shield aside.

Step 3: Locate the starter and clean the area

• From underneath, find the starter at the passenger side of the bellhousing area.
• Spray the electrical connectors lightly with electrical contact cleaner and wipe with a clean rag.
• Cleaning helps prevent bad connections later.

Step 4: Disconnect the starter wiring

• Remove the large battery cable nut from the starter B+ terminal using a 13mm socket.
• Move the cable aside so it cannot touch metal.
• Disconnect the small starter solenoid control wire (may be a push-on connector or a small nut, depending on build).
• If it uses a small nut, remove it carefully using an 8mm socket.

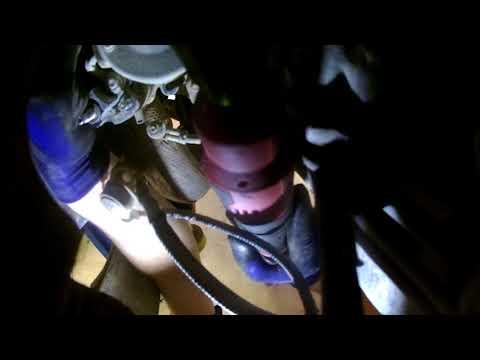

Step 5: Remove the starter mounting bolts

• Support the starter with one hand.
• Remove the starter mounting bolts using a 13mm socket with a 3/8" extension set (use a wobble extension (3/8") if access is tight).
• Lower the starter out of the truck.

Step 6: Install the new starter

• Position the new starter in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten the starter mounting bolts using a torque wrench (10-100 ft-lbs): Torque to 47 Nm (35 ft-lbs).

Step 7: Reconnect the wiring

• Apply a thin film of dielectric grease to the terminals (do not pack the connector full).
• Install the large battery cable onto the B+ terminal and tighten with a torque wrench (10-100 ft-lbs): Torque to 13 Nm (115 in-lbs).
• Reconnect the small control wire.
• If the small terminal uses a nut, tighten using a torque wrench (10-100 ft-lbs): Torque to 4 Nm (35 in-lbs).

Step 8: Reinstall the shield/skid plate (if removed)

• Reposition the shield and install fasteners using a 13mm socket.
• Reinstall push-pins using a flat trim tool to seat them.

Step 9: Lower the truck and reconnect the battery

• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower to the ground.
• Reconnect the battery negative cable using a 10mm socket.

---

✅ After Repair

• Start the engine and listen: cranking should be strong and smooth (no clicking or grinding).
• Verify the starter wiring is not touching the exhaust or any moving parts.
• Check for any warning lights and confirm normal starting multiple times.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$400 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
