🔧 F-150 - Starter Motor Replacement

The starter on your F-150 bolts to the transmission bellhousing and is removed from underneath the truck. You’ll disconnect the battery, remove the electrical connections, unbolt the starter, and install the new unit with the correct torque so it cranks reliably.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before touching the starter wiring.
• The starter can be hot after recent driving. Let the truck cool down first.
• Keep fingers clear of the flexplate and starter opening.
• Support the truck securely with jack stands if you need underbody access.
• Do not let the starter hang by the cables.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm wrench
• 10mm socket
• 13mm socket
• 3/8-inch ratchet
• 3/8-inch extension
• Torque wrench
• Flat blade screwdriver
• Jack stands
• Floor jack
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2
• Battery terminal cleaning brush - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key.
• Disconnect the negative battery cable first, then secure it away from the post.
• If the truck has been driven recently, let the exhaust and starter area cool down.
• Label the cables before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use an 8mm wrench to loosen the negative battery terminal.
• Remove the cable and isolate it so it cannot spring back to the battery.

Step 2: Access the starter

• Raise the front of the truck with a floor jack and support it on jack stands if needed for access.
• Locate the starter on the passenger side of the engine, mounted low at the transmission bellhousing.

Step 3: Remove the starter electrical connections

• Use a 10mm socket to remove the nut on the main power cable.
• Remove the smaller control wire from the solenoid connector.
• Move the wires aside carefully so they do not get damaged.

Step 4: Remove the starter mounting bolts

• Use a 13mm socket with a 3/8-inch ratchet and extension to remove the two starter bolts.
• Support the starter with one hand while removing the last bolt.
• Lower the starter out of the vehicle.

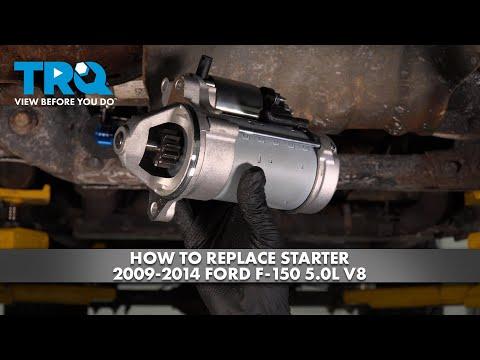

Step 5: Install the new starter

• Position the new starter in place and start both bolts by hand.
• Use the 13mm socket to snug the bolts evenly.
• Torque to 41 Nm (30 ft-lbs).

Step 6: Reconnect the wiring

• Reinstall the control wire and main power cable.
• Use the 10mm socket to tighten the cable nut.
• Make sure the cables are secure and routed away from heat and moving parts.

Step 7: Restore power

• Reconnect the negative battery cable with the 8mm wrench.
• Tighten the terminal securely.

---

✅ After Repair

• Turn the key to START and confirm the engine cranks normally.
• Listen for any grinding, clicking, or unusual noise.
• Check that the starter cable and wires stay cool and secure after starting.
• If the truck does not crank, recheck battery condition and cable tightness first.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$350 (parts only)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
