🔧 Sentra - Side View Mirror Replacement

You’ll be removing the interior door trim, unplugging the mirror wiring, then unbolting the mirror from the door. The main reason this takes a bit of time is access—the mirror fasteners and connector sit behind the door panel.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Turn ignition OFF and remove the key/fob from the car.
• 🧤 Wear gloves—door panel edges and mirror studs can be sharp.
• 🔋 If your mirror has any wiring (power adjust/heated/turn signal/BSW), disconnect the negative battery terminal before unplugging connectors.
• 🚪 Support the mirror with one hand while removing the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb or Nm)
• Phillips #2 screwdriver
• Trim removal tool (plastic)
• Panel clip pliers
• Pick tool
• Painters tape (1")
• Shop light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (LH or RH, paint-to-match if applicable) - Qty: 1
• Door trim panel clips - Qty: 6-10
• Mirror mounting nuts - Qty: 3

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• Lower the window on the side you’re working on.
• Apply painters tape (1") along the door edge near the mirror area to help prevent scratches.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner sail trim (mirror corner cover)

• Use a trim removal tool (plastic) to gently pry off the triangular trim at the top-front corner of the door (inside, by the mirror).
• If it has a tweeter speaker, unplug it using a pick tool to lift the locking tab. Pull on the connector, not the wires.

Step 2: Remove the door switch panel

• Use a trim removal tool (plastic) to pry up the power window/lock switch panel.
• Unplug the connectors by pressing the release tabs (use a pick tool if needed).

Step 3: Remove screws from the door panel

• Remove the screw(s) in the interior pull handle area using a Phillips #2 screwdriver.
• If equipped, remove any additional visible door-panel screws using a Phillips #2 screwdriver.

Step 4: Release the door panel clips and lift the panel off

• Start at the bottom edge: use a trim removal tool (plastic) to pop the panel loose.
• Use panel clip pliers to pull stubborn clips straight out (helps prevent breaking them).
• Lift the door panel upward to unhook it from the window channel.

Step 5: Disconnect door panel cables/connectors

• Unplug any remaining connectors (courtesy light, etc.) using a pick tool as needed.
• If your A4-style handle cable is present (a bowden cable: a cable with a ball-end), unclip it carefully—use a trim removal tool (plastic) to pop the cable housing out of its bracket, then lift the cable end out.

Step 6: Peel back the moisture barrier near the mirror area

• Use a trim removal tool (plastic) to gently peel the plastic water shield back enough to access the mirror mounting area.
• Try not to tear the sticky butyl (black adhesive). Warm it with your hands to re-stick later.

Step 7: Unplug the mirror connector

• Locate the mirror harness connector behind the upper-front part of the door.
• Press the release tab and unplug it (use a pick tool if the tab is tight).
• If equipped (heated/turn signal/BSW), you may see additional pins/wires in the same connector—replacement mirror must match.

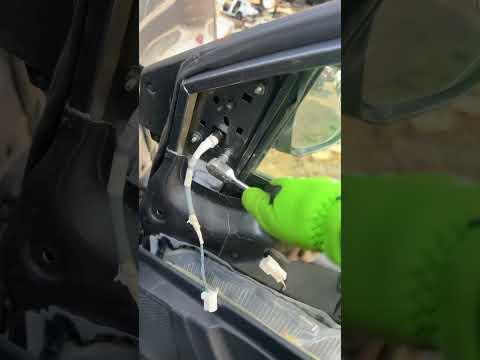

Step 8: Remove the mirror mounting nuts

• Hold the mirror with one hand from outside.
• Use a 10mm socket, 6" extension (1/4" drive), and 1/4" drive ratchet to remove the three mirror nuts.
• Remove the mirror from the door and guide the wiring through the opening.

Step 9: Install the new mirror

• Feed the new mirror wiring through the door opening and set the mirror onto the studs.
• Thread the three nuts on by hand first (prevents cross-threading).
• Use a torque wrench (in-lb or Nm) with a 10mm socket to tighten: Torque to 7.5 Nm (66 in-lbs).

Step 10: Reconnect wiring and reassemble the door

• Plug the mirror connector back in until it clicks.
• Re-stick the moisture barrier in place, pressing the butyl firmly by hand.
• Reconnect any door panel cables/connectors.
• Hang the door panel on the top edge first, then press clips in around the perimeter (use your palm).
• Reinstall the screws using a Phillips #2 screwdriver.
• Reinstall the switch panel by plugging connectors in, then snapping it down.
• Snap the sail trim back on (and reconnect tweeter if equipped).

---

✅ After Repair

• 🔋 Reconnect the negative battery terminal using a 10mm socket.
• Turn ignition ON and test mirror functions: adjust directions, heat (if equipped), turn signal/BSW indicator (if equipped).
• Check mirror stability by gently pushing on the housing—there should be no looseness.
• Take a short drive and listen for rattles from the door panel (a missed clip is common).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $90-$400 (parts only)

You Save: $160-$250+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
