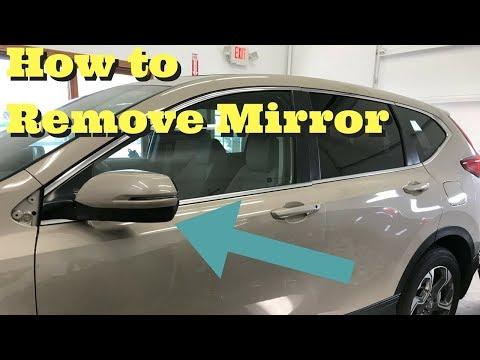

🔧 Side View Mirror - Replacement

Replacing a side view mirror on your CR-V is usually a straightforward exterior trim job. You’ll remove the interior sail panel, unplug the mirror connector, then unbolt the mirror assembly and install the new one.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work with the ignition off and the key far away from the vehicle.
• Do not pry hard on the door trim; the clips can break easily.
• If your mirror has heat, blind-spot monitoring, or turn signal wiring, unplug the connector gently.
• No battery disconnect is normally required, but keep the window fully up while working.
• Handle the new mirror carefully so the paint and glass do not get scratched.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Plastic trim removal tool
• 10mm socket
• Ratchet
• Short extension
• Torque wrench
• Phillips screwdriver
• Small pick tool
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Qty: 1
• Mirror mounting nuts - Qty: 3
• Door trim clip set - Qty: 1
• Mirror gasket - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Roll the window fully up.
• Have the new mirror ready before removing the old one.
• Keep the door closed while working.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inside mirror trim

• Use a plastic trim removal tool to pry off the small interior sail panel at the front upper corner of the door.
• Work slowly so you do not crack the panel or break the clips.

Step 2: Unplug the mirror connector

• Reach behind the opening and find the mirror wiring connector.
• Press the lock tab and unplug it by hand.
• If the tab is tight, use a small pick tool very gently.

Step 3: Remove the mirror nuts

• Use a 10mm socket, ratchet, and short extension to remove the three mirror mounting nuts.
• Support the mirror with your other hand while removing the last nut so it does not fall.

Step 4: Remove the old mirror assembly

• Pull the mirror straight away from the door.
• Lift the wiring connector through the opening carefully.
• Do not twist the mirror housing.

Step 5: Install the new mirror

• Position the new mirror on the door and guide the connector through the opening.
• Start all three nuts by hand first.
• Use the 10mm socket and ratchet to snug the nuts evenly.
• Torque to 8 Nm (71 ft-lbs).

Step 6: Reconnect and reassemble

• Plug the mirror connector back in until it clicks.
• Reinstall the interior sail panel by pressing it into place with your hand.
• Make sure all clips seat fully.

---

✅ After Repair

• Turn the ignition on and test mirror adjustment in all directions.
• If equipped, test mirror heating, blind-spot warning, and turn signal function.
• Check that the mirror housing sits flush against the door.
• Drive slowly and listen for wind noise around the mirror area.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹4,000-₹12,000 (parts only)

You Save: ₹4,000-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹8,000-₹12,000 per hour. This repair takes a shop approximately 1-2 hours.

---
