🔧 ProMaster - Side View Mirror Replacement

You’ll remove the interior trim at the front of the door, unplug the mirror (if equipped), remove the mirror mounting nuts, then install and align the new mirror. This is a common repair after impact damage or loose/vibrating mirrors.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours (per side)

Assumption: Your ProMaster has the common 3-nut mirror mount; steps include both manual and power mirrors.

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and keep the key out of the ignition.
• ⚠️ If your mirror is powered/heated/has a turn signal, disconnect the battery before unplugging connectors to prevent shorts.
• ⚠️ Support the mirror with one hand when removing the last nut so it doesn’t fall and chip paint.
• ⚠️ Use trim tools (plastic) to avoid breaking clips and scratching panels.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension for 1/4" drive
• Torque wrench (inch-pound) 20–200 in-lb
• Trim removal tool set (plastic)
• Phillips screwdriver #2
• Pick tool (small)
• Needle-nose pliers
• Painter’s tape 1" wide
• Shop towel
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (correct side: LH driver or RH passenger) - Qty: 1
• Mirror mounting nuts (if not included) - Qty: 3
• Door trim panel clips (assorted, optional) - Qty: 1 set
• Mirror gasket/seal (if not included) - Qty: 1

---

📋 Before You Begin

• Park your ProMaster on level ground and open the door fully for access.
• Apply painter’s tape along the door edge below the mirror to protect the paint.
• If equipped with a powered/heated/turn-signal mirror: use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back.
• Place a shop towel on the door sill to catch clips/screws.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior mirror trim (sail panel)

• At the top-front corner of the door (inside), locate the small triangular trim cover.
• Use a trim removal tool set (plastic) to gently pry the cover outward.
• If there is a retaining clip, use a pick tool (small) to help release it without snapping.
• Tip: Pull straight out to save clips.

Step 2: Disconnect the mirror wiring (if equipped)

• If you see an electrical connector, press the lock tab and unplug it.
• Use a pick tool (small) only if the lock tab is stubborn (don’t break it).
• Use a shop towel to keep dirt out of the connector.
• Definition: A “lock tab” is the small latch that holds a plug in place.

Step 3: Remove the mirror mounting nuts

• Hold the mirror from the outside with one hand.
• Use a 10mm socket, 1/4" drive ratchet, and 3" extension to remove the three mounting nuts.
• Set the nuts aside if you’re reusing them.

Step 4: Remove the old mirror

• Guide the mirror away from the door.
• If it’s a powered mirror, feed the wiring and connector through the opening carefully.
• Remove any old gasket material stuck to the door using a shop towel (do not scratch paint).

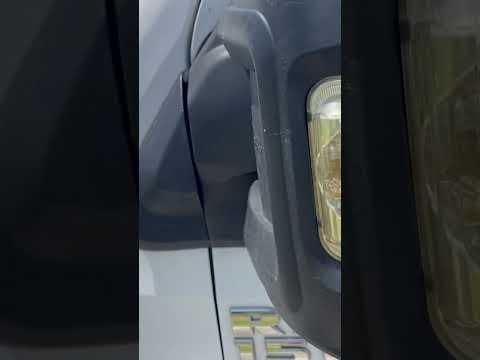

Step 5: Install the new mirror and start the nuts by hand

• Position the new mirror and seat the gasket flush against the door.
• If equipped with wiring, feed the connector through the opening before fully seating the mirror.
• Thread all three nuts on by hand first (this prevents cross-threading).
• Tip: Hand-starting threads prevents expensive mistakes.

Step 6: Torque the mirror nuts evenly

• Use a torque wrench (inch-pound) 20–200 in-lb with a 10mm socket.
• Tighten the three nuts in a “triangle” pattern (a little at a time) so the mirror sits flat.
• Torque to 80 in-lb (9 Nm).

Step 7: Reconnect wiring and reinstall the trim cover

• Reconnect the mirror connector until it clicks (if equipped).
• Reinstall the triangular trim cover by lining up the clips and pressing firmly by hand.
• If a screw is present on your trim piece, install it using a Phillips screwdriver #2 (snug only).

Step 8: Reconnect the battery (if disconnected)

• Use a 10mm socket to reconnect the negative battery terminal.
• Make sure the clamp is fully seated and tightened (do not over-tighten).

---

✅ After Repair

• Start your ProMaster and verify mirror functions (if equipped): power adjust, heat, turn signal, and any puddle lamp.
• Check mirror stability by gently pushing on the housing—there should be no looseness.
• Take a short test drive and re-check for vibration or wind noise around the gasket.
• Remove the painter’s tape and wipe the area clean with a shop towel.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $90-$450 (parts only)

You Save: $160-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
