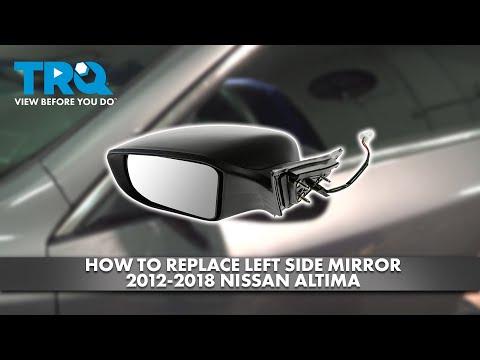

🔧 Altima - Side View Mirror Replacement

Replacing a side view mirror is mostly an access job: you remove the small interior trim “sail panel,” unplug the mirror wiring, then unbolt and swap the mirror. This restores safe visibility and fixes a loose, cracked, or broken mirror assembly.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

Assumption: your Altima has a standard power mirror (no camera).

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and turn the ignition OFF.
• ⚠️ Protect paint: place masking tape along the door edge near the mirror.
• ⚠️ Don’t pull on wiring; unplug connectors by the locking tab.
• ⚠️ Battery disconnect: recommended (use a 10mm wrench) to prevent accidental shorting while unplugging the mirror.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Masking tape
• Trim removal tool set
• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound)
• Phillips screwdriver #2
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (Left/Driver or Right/Passenger) - Qty: 1
• Mirror sail panel clips (optional, if any break) - Qty: 1-3
• Door trim clips (optional, only if door panel is removed) - Qty: 2-10

---

📋 Before You Begin

• Park your Altima on level ground and set the parking brake.
• Lower the window on the side you’re working on (helps access and prevents locking keys inside).
• Apply masking tape around the mirror base area on the outside of the door.
• Disconnect the negative battery terminal: use a 10mm wrench and isolate the cable so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior sail panel trim

• At the front top corner of the door (inside), locate the small triangular trim panel by the mirror.
• Use a trim removal tool to gently pry the sail panel away from the door.
• If it has a clip-on fit, pull straight outward to release the clips. Slow, even pressure prevents broken clips.
• If your sail panel has a small cover or screw (varies), remove it with a Phillips screwdriver #2.

Step 2: Unplug the mirror electrical connector

• Look behind the sail panel area for the mirror wiring connector.
• Press the lock tab and unplug the connector by hand. Use needle-nose pliers only if needed for the tab (don’t crush the connector).
• A “locking tab” is the small latch that keeps the plug from backing out.

Step 3: Remove the mirror mounting nuts

• Support the mirror from the outside with one hand so it doesn’t fall and chip paint.
• Use a 10mm socket, 1/4" ratchet, and 6" extension to remove the mirror mounting nuts (typically 3 nuts).
• Set the nuts aside where they won’t drop into the door.

Step 4: Remove the old mirror assembly

• Feed the wiring harness and connector out through the door opening.
• Lift the mirror straight off the door.
• Check the mirror gasket (foam/rubber seal) surface on the door for dirt or torn material and clean it by hand.

Step 5: Install the new mirror

• Route the new mirror wiring through the opening in the door.
• Set the mirror onto the door and make sure the gasket sits flat all the way around. A pinched gasket can cause wind noise and leaks.
• Thread the mounting nuts on by hand first (prevents cross-threading).
• Tighten the nuts evenly using a 10mm socket and 1/4" ratchet.
• Final tighten with a torque wrench (inch-pound): Torque to 7 Nm (62 in-lbs).

Step 6: Reconnect wiring and reinstall the sail panel

• Plug the mirror connector back in until it clicks.
• Reinstall the sail panel by lining up the clips and pressing it straight into place by hand.
• If there was a screw, reinstall it using a Phillips screwdriver #2 (snug only; do not over-tighten).

Step 7: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm wrench.
• Tighten securely (do not strip the clamp).
• Remove the masking tape from the door.

---

✅ After Repair

• Turn the ignition ON and test mirror adjustment in all directions.
• Confirm the mirror sits flush and doesn’t wobble when gently pushed.
• Drive at neighborhood speed first and listen for wind noise around the mirror.
• If you notice water leaks or wind noise, re-check that the gasket is flat and the nuts are evenly torqued.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$600 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $170-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
