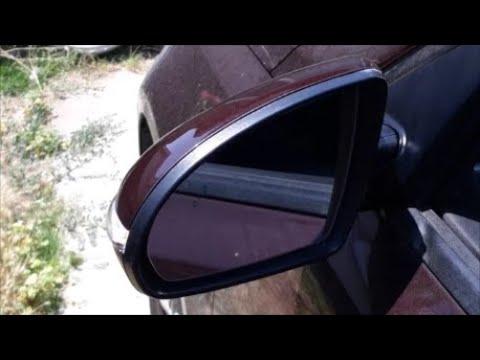

🔧 Optima - Side View Mirror Replacement

You’ll remove the interior door trim, unplug the mirror wiring, unbolt the mirror from the door, then install the new mirror and reassemble everything. This is mostly careful trim work so you don’t crack clips or scratch paint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

Assumption: Your mirror is a complete assembly (power/heat/turn-signal) and mounts with 3 nuts behind the inside “sail” trim.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before unplugging door wiring to reduce airbag/SRS risk in the door area.
• ⚠️ Hybrid safety: do not touch or pull any orange high-voltage cables/connectors (you shouldn’t need to for this job).
• ⚠️ Wear gloves and safety glasses; door sheet metal edges can be sharp.
• ⚠️ Support the mirror when removing the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Pick tool
• Needle-nose pliers
• Torque wrench (5–25 Nm range)
• Painters tape
• Fender cover
• Mechanic gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (LH or RH, correct options: heated/turn signal) - Qty: 1
• Door trim panel clips - Qty: 5-10
• Butyl tape (vapor barrier adhesive) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the car OFF.
• Open the window on the side you’re working on (gives you a safe handhold on the door).
• Use painters tape along the mirror base and door edge to protect the paint.
• Disconnect the 12V battery negative terminal using a 10mm wrench and wait 3 minutes. (This reduces the chance of an SRS/airbag warning.)
• Know your tools: a trim removal tool is a plastic pry tool made to pop clips without marring panels.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inside mirror “sail” trim

• Use a plastic trim removal tool set to gently pry off the small triangular interior trim at the front top corner of the door.
• If it has a small clip tether, release it carefully with a pick tool.

Step 2: Remove the door panel fasteners

• Use a pick tool to pop the small plastic covers hiding screws (usually near the pull handle and/or door latch area).
• Remove screws using a Phillips #2 screwdriver.

Step 3: Release the door panel clips

• Slide a plastic trim removal tool set under the bottom/side edge of the door panel and pry outward to pop the clips.
• Work around the panel—don’t yank one spot.

Step 4: Lift the door panel off and disconnect wiring

• Lift the door panel straight up to unhook it from the window channel.
• Disconnect electrical connectors using a pick tool (press the lock tab, then pull the connector straight out).
• If equipped, disconnect the door handle cable: use needle-nose pliers to rotate the cable housing out of its bracket, then unhook the cable end.

Step 5: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back near the mirror area by hand. If the adhesive is stubborn, use a plastic trim removal tool set.
• Try not to tear it; you’ll reseal it to prevent water leaks and wind noise.

Step 6: Unplug the mirror connector

• Find the mirror wiring connector inside the door near the mirror mount.
• Release the lock tab with a pick tool and unplug it.
• Optional: apply a tiny amount of dielectric grease to the seal (dielectric grease helps prevent corrosion on connectors).

Step 7: Remove the mirror mounting nuts

• Support the mirror with one hand from the outside.
• Use a 10mm socket, 3" extension (1/4" drive), and 1/4" drive ratchet to remove the 3 mirror mounting nuts.
• Remove the mirror from the outside and feed the harness out through the hole.

Step 8: Install the new mirror

• Feed the new mirror harness through the door and seat the mirror onto the mounting studs.
• Hand-thread all nuts first to avoid cross-threading.
• Tighten the nuts with a 10mm socket and torque wrench (5–25 Nm range).
• Torque to 9 Nm (80 in-lbs).

Step 9: Reconnect wiring and reseal the vapor barrier

• Plug the mirror connector back in until it clicks.
• Press the vapor barrier back into place. If the adhesive won’t stick, use butyl tape to reseal the edges.

Step 10: Reinstall the door panel

• Reconnect all door electrical connectors and the door handle cable.
• Hang the top of the door panel onto the window channel, then press it down to seat it.
• Press around the perimeter to snap all clips back in.
• Reinstall screws using a Phillips #2 screwdriver and reinstall the screw covers.
• Reinstall the sail trim by pressing it back into its clips.

Step 11: Reconnect the 12V battery

• Reconnect the negative terminal using a 10mm wrench and tighten snugly.

---

✅ After Repair

• Turn the car ON and test mirror functions: adjust, fold (if equipped), heater (if equipped), and turn signal/repeater (if equipped).
• Check the window switches and door lock on that door.
• Close the door and listen for rattles; if you hear one, a clip may be out of place.
• Do a quick water test: lightly spray near the mirror area and confirm no water leaks inside the door.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$750 (parts + labor, varies a lot by mirror options)

DIY Cost: $120-$450 (parts only)

You Save: $180-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
