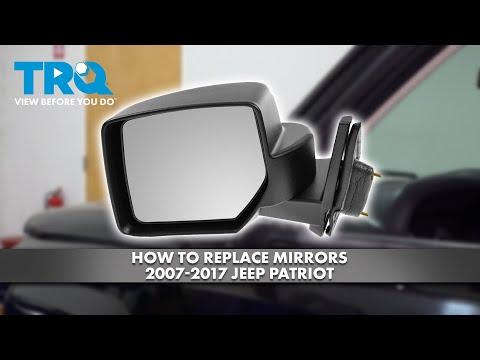

🔧 Patriot - Side View Mirror Replacement

You’ll remove the inside door trim, unplug the mirror wiring, unbolt the mirror, then install the new mirror and test it. This is a straightforward job, but you need to be careful with plastic clips and paint around the mirror base.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground, key OFF, and keep the window fully down for easier access.
• ⚠️ Protect the paint: place masking tape around the mirror base area on the outside of the door.
• ⚠️ Recommended: disconnect the negative battery cable to avoid accidental shorting or warning lights while unplugging door electronics.
• ⚠️ Support the mirror with your hand when removing the last nut so it doesn’t fall and chip paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" drive
• Phillips #2 screwdriver
• Trim removal tool set (specialty)
• Torque wrench (inch-pound) 20-200 in-lb
• Needle-nose pliers
• Masking tape (1" wide)
• Fender cover
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Left or Right (match your side/options) - Qty: 1
• Door panel trim clips - Qty: 6-12
• Mirror gasket/seal - Qty: 1

---

📋 Before You Begin

• 🧰 Lower the window fully and turn the ignition OFF.
• 🧰 If disconnecting the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• 🧰 Lay a fender cover over the door sill area to prevent scratches.
• 🧰 Put masking tape (1" wide) around the outside mirror base area to protect paint.
• 🧰 A “trim removal tool” is a plastic pry tool used to pop panels/clips without gouging them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inside mirror sail panel

• Use a trim removal tool set (specialty) to gently pry off the small triangular trim panel at the top-front of the door (inside corner by the mirror).
• Work slowly and pop the clips straight out. Pry close to each clip.

Step 2: Remove the door handle/armrest screws

• Use a Phillips #2 screwdriver to remove the visible screws in the interior door pull/armrest area.
• If a small cap covers a screw, use the trim removal tool set (specialty) to lift the cap first, then remove the screw with the Phillips #2 screwdriver.

Step 3: Release the door panel clips

• Starting at the lower edge of the door panel, use the trim removal tool set (specialty) to pop the plastic push-clips free.
• Work around the sides and bottom until the panel is loose. You’ll hear clips “snap” free.

Step 4: Lift the door panel up and disconnect wiring

• Lift the door panel straight upward to unhook it from the window ledge.
• Unplug electrical connectors (window/lock/mirror switch) by pressing the tab and pulling apart by hand. Use needle-nose pliers only if needed, and pull on the connector body (not the wires).
• If equipped with a mechanical door-handle cable, unclip it and swing the cable end out of the handle lever.

Step 5: Unplug the mirror connector

• Behind the sail panel area, locate the mirror wiring connector.
• Press the lock tab and disconnect it by hand.

Step 6: Remove the mirror mounting nuts

• Hold the mirror housing from the outside with one hand.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension for 1/4" drive to remove the three mirror mounting nuts.
• Set the nuts aside if the new mirror does not include replacements.

Step 7: Remove the old mirror and transfer parts if needed

• Carefully pull the mirror away from the door and guide the wiring through the opening.
• If the new mirror does not include a foam seal/gasket, transfer the old one (replace it if torn or flattened).

Step 8: Install the new mirror

• Feed the mirror wiring through the door opening and seat the mirror against the door.
• Thread the mounting nuts on by hand first to avoid cross-threading.
• Use a 10mm socket and 1/4" drive ratchet to snug the nuts evenly.
• Use a torque wrench (inch-pound) 20-200 in-lb to finish tightening: Torque to 9 N·m (80 in-lb).

Step 9: Reconnect mirror wiring and reassemble the door

• Reconnect the mirror connector by hand until it clicks.
• Reconnect the door panel electrical connectors and the door-handle cable (if equipped).
• Hang the door panel on the top window ledge, then press down to seat it.
• Press the panel clips back in using firm hand pressure around the perimeter.
• Reinstall screws using the Phillips #2 screwdriver.
• Reinstall the sail panel by aligning clips and pressing it into place by hand.

Step 10: Reconnect the battery (if disconnected)

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• ✅ Turn the key ON and test mirror movement on all directions using the mirror switch.
• ✅ If equipped, test heated mirrors by turning on the rear defrost and feeling for warming after a few minutes.
• ✅ Check the mirror for wobble and verify the gasket seals evenly all around.
• ✅ Take a short drive and listen for wind noise; reseat the mirror if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $60-$250 (parts only)

You Save: $120-$200+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
