🔧 Civic - Side View Mirror Replacement

You’ll remove the interior door trim at the front corner, unplug the mirror wiring, and unbolt the mirror from the door. Then you’ll install the new mirror, reconnect the wiring, and reassemble everything so the mirror is secure and works correctly.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: power mirrors; passenger mirror may have LaneWatch camera.

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and keep the key out of the car to prevent accidental window/mirror movement.
• ⚠️ Support the mirror with one hand while removing the last nut so it doesn’t fall and chip paint.
• ⚠️ Use plastic trim tools to avoid breaking clips or scratching panels.
• ⚠️ If your Civic has LaneWatch (camera in the passenger mirror), handle the camera wiring gently and do not pull on the harness.
• ⚠️ Battery disconnect is not required, but if you’re nervous around wiring, disconnect the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Plastic trim removal tool set
• Phillips #2 screwdriver
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Torque wrench (inch-pound or small ft-lb)
• Pick tool
• Painters tape
• Magnetic pickup tool
• Shop light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left/driver or right/passenger), power - Qty: 1
• Mirror mounting nuts - Qty: 3 (recommended)
• Door trim panel clips - Qty: 2-6 (as needed)
• Butyl tape (weather-seal adhesive) - Qty: 1 (if the vapor barrier adhesive is damaged)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the window on the side you’re working on (gives you a safe handhold and room).
• Apply painters tape along the door edge below/around the mirror area to help protect the paint.
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the small interior mirror trim (sail panel)

• At the front upper corner of the door (by the mirror), pry the small triangular trim piece off using a plastic trim removal tool.
• If it feels stuck, change angles and pry near the clip locations. Slow pressure prevents clip breaks.

Step 2: Remove the door panel fasteners

• Locate the screw(s) behind the inside door handle area and/or in the armrest pocket.
• Remove Phillips screws using a Phillips #2 screwdriver.
• If your Civic uses a small cap hiding a screw, lift the cap gently with a pick tool, then remove the screw.

Step 3: Release the door panel clips and lift the door panel off

• Start at the lower edge of the door panel. Slide in a plastic trim removal tool and pop the clips free one at a time.
• Once the clips are free, lift the entire panel straight up to unhook it from the window ledge.
• Trim clip (definition): a plastic snap fastener that holds the panel to the door metal.

Step 4: Disconnect door panel connectors

• Support the panel close to the door (don’t let it hang by wires).
• Unplug the electrical connectors (window switch, door lock, etc.) by pressing the tab and pulling the connector out by hand.
• If there’s a cable for the inside handle, unhook it carefully (note its routing for reassembly).

Step 5: Peel back the vapor barrier (only as much as needed)

• Peel the plastic sheet (vapor barrier) back near the mirror area.
• Do this slowly so the sticky seal stays on the plastic. If it tears or won’t stick later, use butyl tape during reassembly.

Step 6: Unplug the mirror wiring harness

• Find the mirror connector near the front upper door area and unplug it by pressing the lock tab.
• If equipped with LaneWatch on the passenger side, there may be an additional camera-related connector—unplug it the same way.
• Pull connectors by the housing, not the wires.

Step 7: Remove the mirror mounting nuts

• Hold the mirror from the outside with one hand.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the three mounting nuts.
• Use a magnetic pickup tool if a nut drops inside the door.

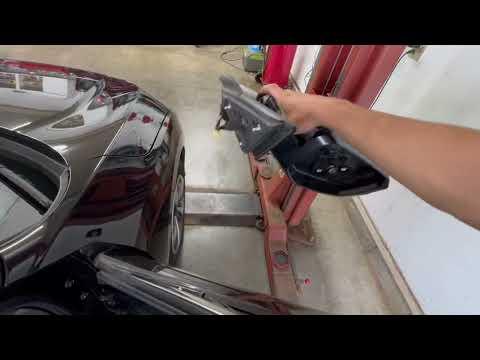

Step 8: Remove the old mirror

• Feed the wiring and connector(s) through the hole and lift the mirror away from the door.
• Inspect the door-side gasket area and wipe away dirt so the new mirror seals properly.

Step 9: Install the new mirror

• Feed the mirror harness through the door opening and seat the mirror onto the mounting studs.
• Start all three nuts by hand first (prevents cross-threading).
• Tighten with a 10mm socket and torque wrench: Torque to 9 Nm (80 in-lbs, 7 ft-lbs).

Step 10: Reconnect wiring and quick-test

• Plug the mirror connector(s) back in until they click.
• Before reassembling the door fully, turn ignition to ON and test mirror movement using the mirror switch.
• If LaneWatch-equipped, test that the camera view works (if applicable on your Civic).

Step 11: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into the sticky seal. If it won’t stick, apply butyl tape and press firmly.
• Reconnect all door panel connectors and any handle cable.
• Hook the top of the door panel onto the window ledge, then press around the edges to snap all clips back in.
• Reinstall the screws using a Phillips #2 screwdriver, then reinstall any caps.
• Snap the triangular sail panel back on using hand pressure.

---

✅ After Repair

• Confirm mirror operation: left/right selection, up/down/left/right movement.
• Check for wind noise on a short drive (a mis-seated gasket or loose nuts can whistle).
• Verify the window and door lock switches work (a missed connector is common).
• If the battery was disconnected, reset the clock and auto window function if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor, varies by mirror options/paint/camera)

DIY Cost: $90-$450 (parts only)

You Save: $160-$200+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
